Description
Overview:

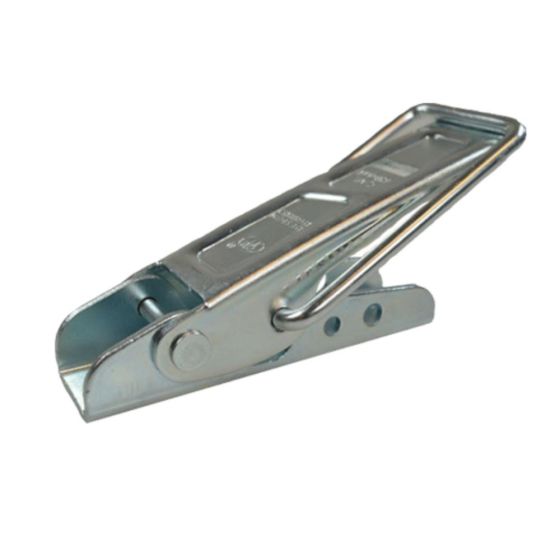

This over-centre catch, 165 x 37 mm (MPN 761 580), is a standard latch used to clamp and secure panels, doors and tailgates on trailers and commercial bodywork. The over-centre action draws the mating keeper tight to resist vibration and accidental opening during transport. A zinc plated finish provides corrosion resistance suitable for road use and outdoor site conditions. The catch is specified with an 840 kg capacity and mounts via two 5 mm (0.20 in) holes for straightforward installation or replacement. Supplier drawing dimensions are A = 165 mm (6.50 in), B = 37 mm (1.46 in) and D = 100 mm (3.94 in), aiding selection against existing hardware or fabrication drawings. Commonly used across plant trailers, general purpose trailers and service bodies, and compatible with the matching Maypole keeper MP81402B to form a complete latch set.
Key Features:
- Standard over-centre catch for trailer and body fittings
- Zinc plated finish for corrosion resistance
- Rated capacity: 840 kg
- Drawing dimensions: A = 165 mm (6.50 in), B = 37 mm (1.46 in), D = 100 mm (3.94 in)
- Fixing: 2 x 5 mm (0.20 in) mounting holes
- Compatible keeper/strike: Maypole MP81402B
Typical Applications:
Used to secure dropsides, tailgates, ramps, lids and access doors on plant and general-purpose trailers, tippers, service bodies and site equipment. Often paired with the Maypole keeper MP81402B where a matched strike is required. Suitable for new installations or like-for-like replacement where the 165 x 37 mm format and hole pattern are specified.
Also known as:
Overcentre Catch
Over-Centre Latch
Toggle Latch
Toggle Catch
Maypole part number MP81302B
Product Specifications
| L&S Part No. | 761 580 |
|---|---|
| Unit of Sale | 1 |
