Description
Overview:

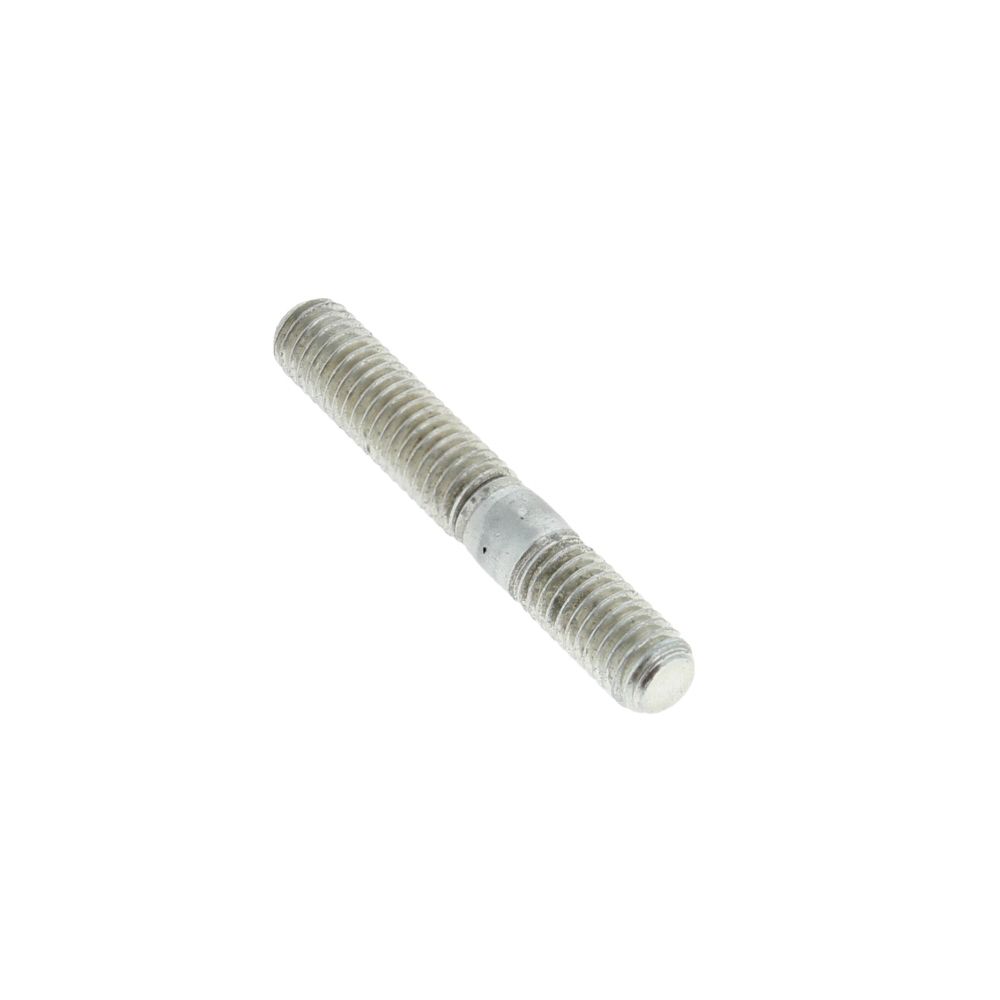

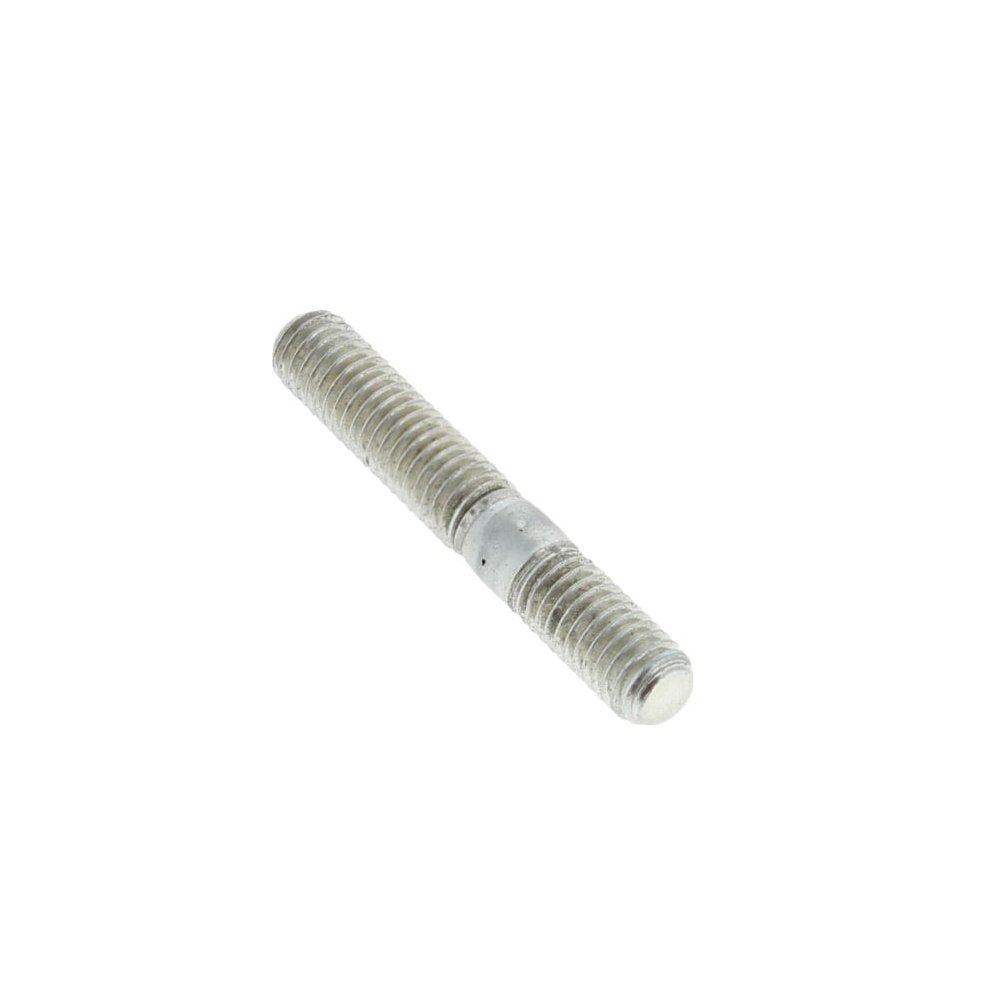

The Stud M5x22 is a genuine Stihl spare part for selected professional and vintage chainsaws, including the 041 and 076. It is a precision-engineered steel fixing with an M5 metric thread and 22 mm length, used to provide a secure threaded anchor point within the machine. Designed for repeatable assembly and disassembly, it helps maintain clamping force and alignment across vibrating, high‐load areas typical of petrol chainsaws. The sturdy steel construction with a protective finish offers good resistance to wear, heat, oil, and corrosion in everyday use. As an OEM part (9121 319 1030), it matches factory dimensions and tolerances for a straightforward fit and reliable service life. Suitable for routine maintenance or replacing worn or missing studs on compatible models.
Key Features:
- Genuine Stihl part for assured compatibility and fit
- M5 thread x 22 mm length for correct engagement and clamping
- Steel construction with corrosion-resistant finish for durability
- Supports accurate alignment of covers, brackets, and housings
- Helps protect softer alloy castings by using a stud-and-nut arrangement
- Resists loosening under vibration common to chainsaw operation
- Easy to install with standard hand tools
- Suitable for preventative maintenance and like-for-like replacement
- Consistent dimensions for repeatable servicing across compatible models
- OEM quality control for dependable performance in demanding conditions
Typical Applications:
Used across various assemblies on compatible Stihl chainsaws where a robust threaded fixing is required, such as mounting covers, guards, and brackets, or securing components that may need periodic removal for servicing. Ideal for restoring correct fit where an original stud has worn, corroded, or been lost.
Also known as:
Stud bolt, double-ended bolt, threaded stud, fixing stud, set stud, threaded dowel, machine fixing, threaded pin.
Fits Models:
041, 041G, 075, 076
Alternate Part Numbers:
9121-319-1030, 91213191030
Product Specifications
| L&S Part No. | 9121 319 1030 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 91213191030 |
| Unit of Sale | 1 |
| Machine Type | Chainsaws |
| Fits Brands | Stihl |
| Key Features | - M5 thread x 22 mm length for precise fit - Genuine Stihl part ensures compatibility with 041, 041G, 075, 076 - Steel construction with corrosion-resistant finish - Designed for high-load, vibrating chainsaw environments - OEM quality for reliable performance and fit |
| Fits Models | 041 | 076 | 075 |
