Description
Overview:

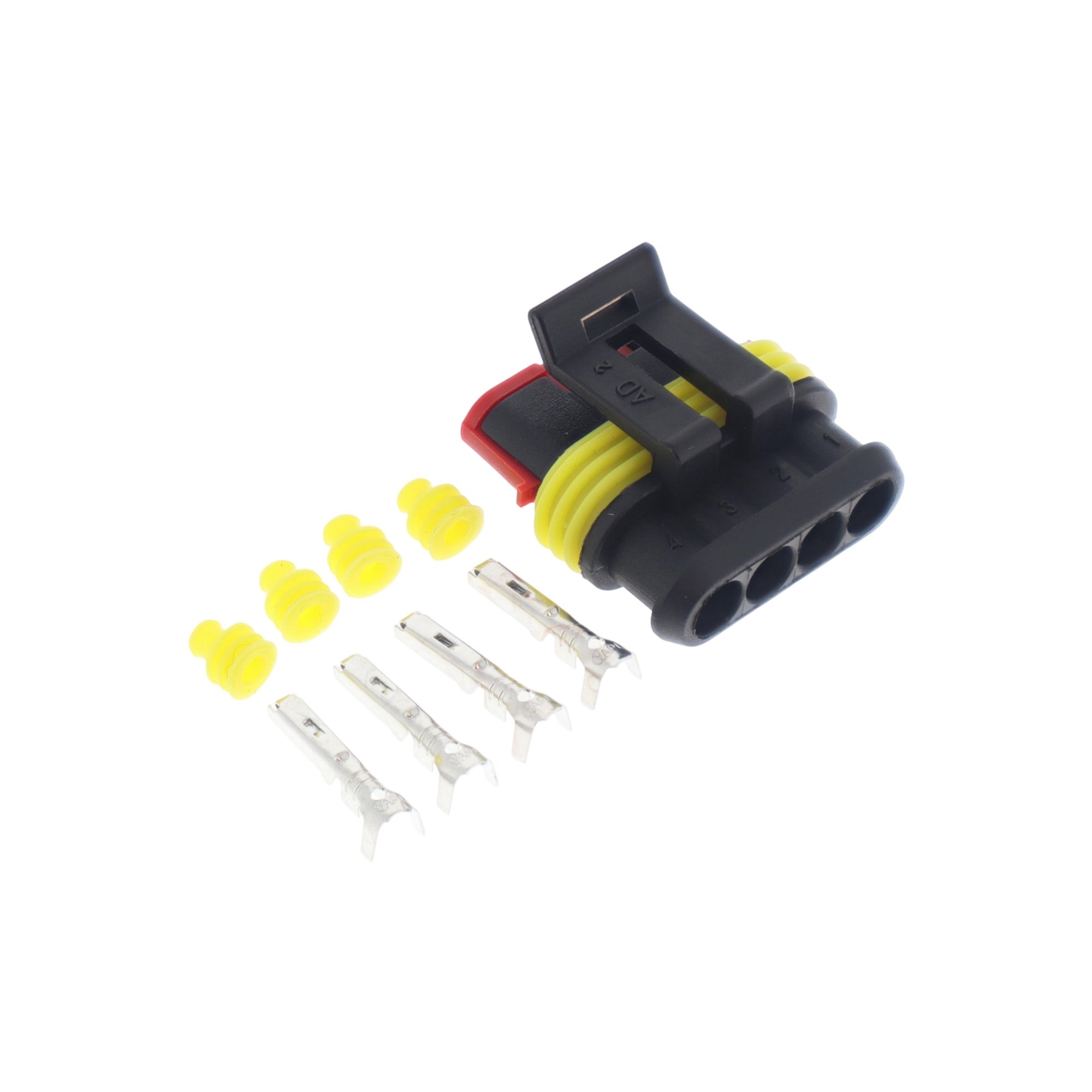

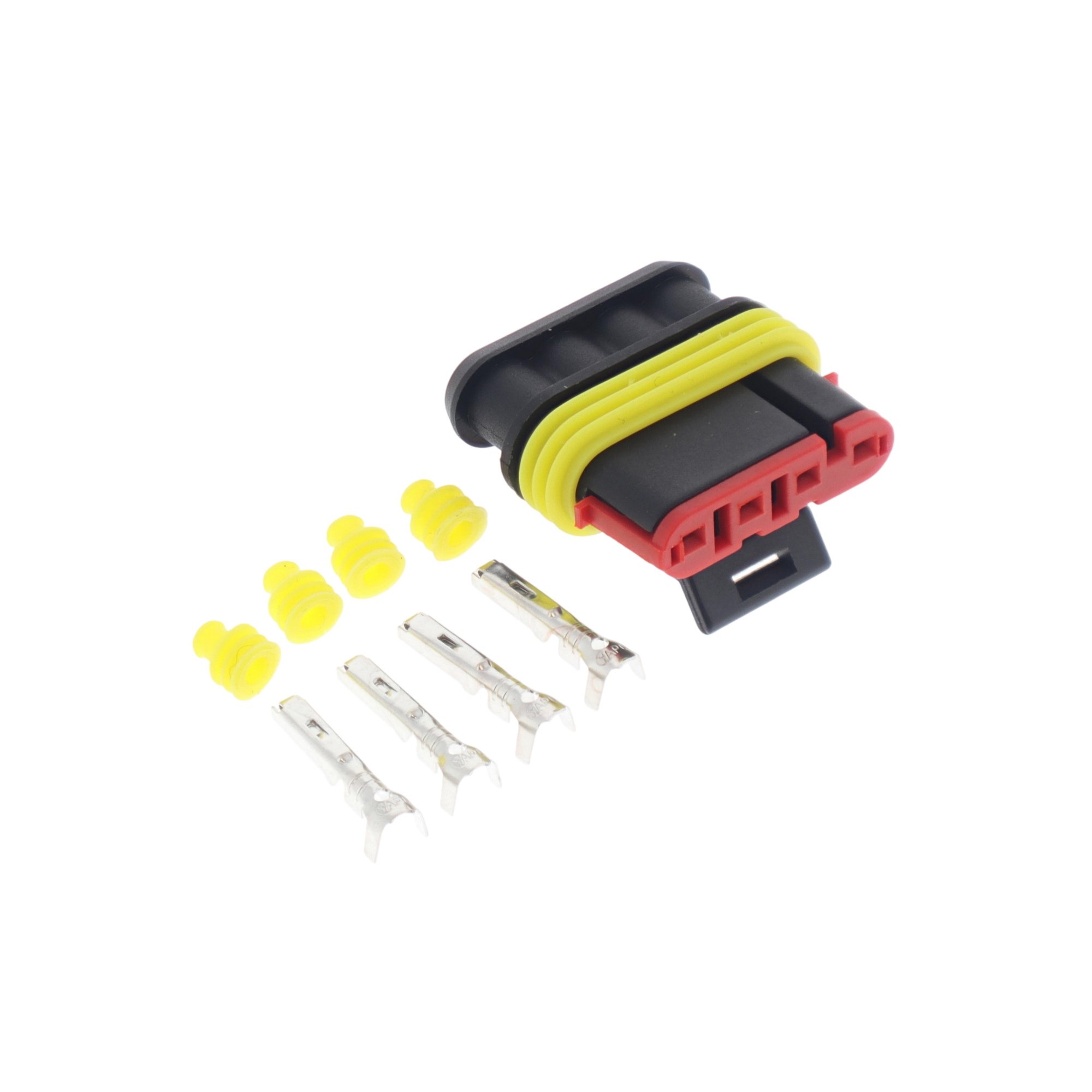

The Superseal Female Connector 4-Way is an electrical component designed for secure wire connections in various workshop and industrial settings. It accommodates up to four electrical circuits, ensuring efficient power distribution. Made to handle a maximum current of 14A per way and a voltage rating of 24V DC, this connector is suitable for use in demanding environments. It features robust construction to withstand operating temperatures ranging from -40°C to 125°C, ensuring reliable performance under strenuous conditions.
Key Features:
- Accommodates up to four electrical circuits for diversified connectivity.
- Maximum current rating of 14A per way for various applications.
- Voltage rating of up to 24V DC for power compatibility.
- Broad operating temperature range from -40°C to 125°C.
- Durable design suitable for industrial environments.
- Reliable performance under diverse electrical loads (10A – 20A terminal current).
Typical Applications:
This 4-way connector is commonly used in automotive, marine, and specialised industrial equipment where secure and weatherproof electrical connections are necessary. It ensures robust performance in environments subject to temperature extremes and vibration, making it ideal for machinery maintenance and repair tasks.
Also known as:
4-Way Superseal Connector, Female Superseal Electrical Connector, 500 209 Connector.
Product Specifications
| L&S Part No. | 500 209 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - 4-way female connector - Max current rating of 14A per way - Voltage rating up to 24V DC - Operates from -40c to 125c - Rated terminal current 10A – 20A |
