Description
Overview:

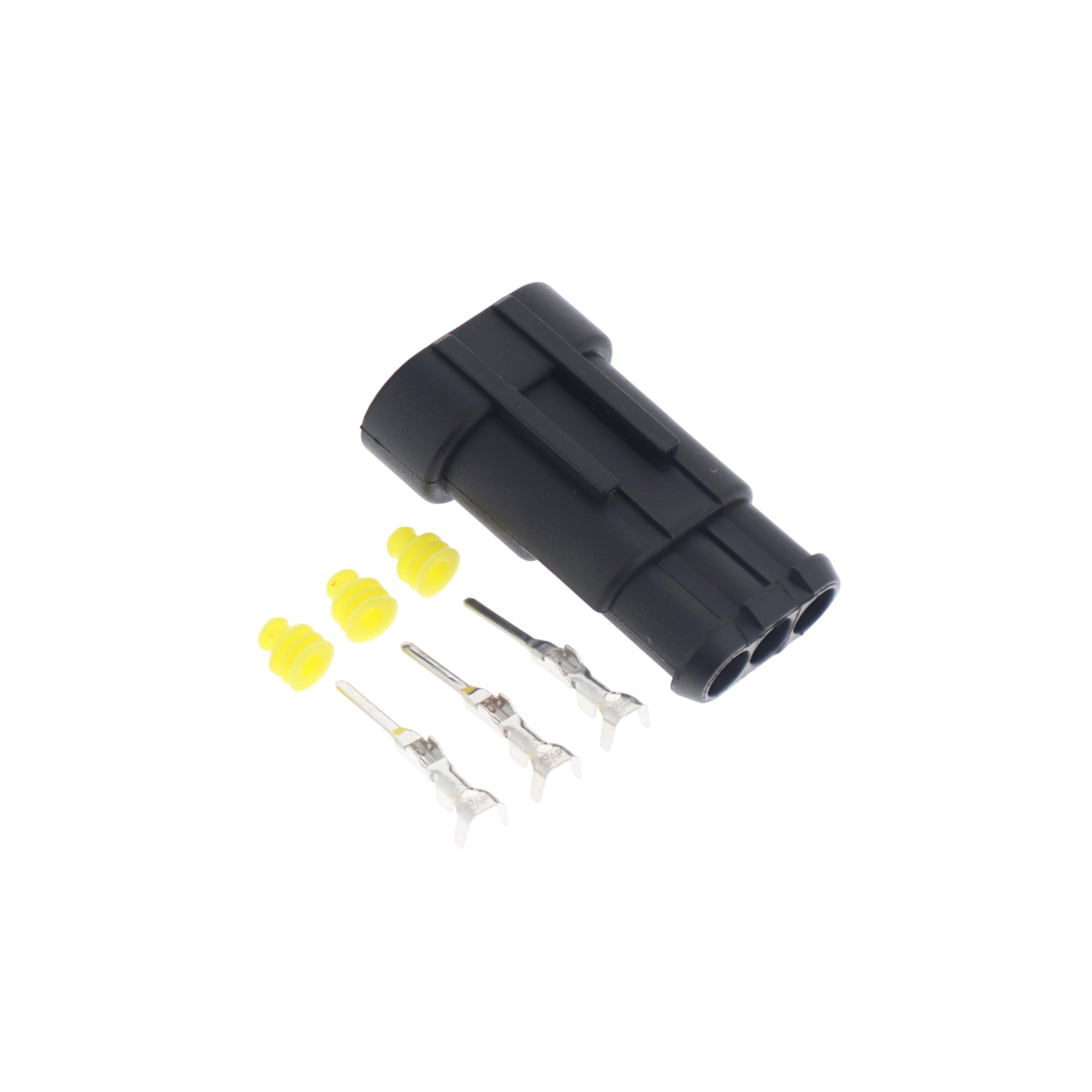

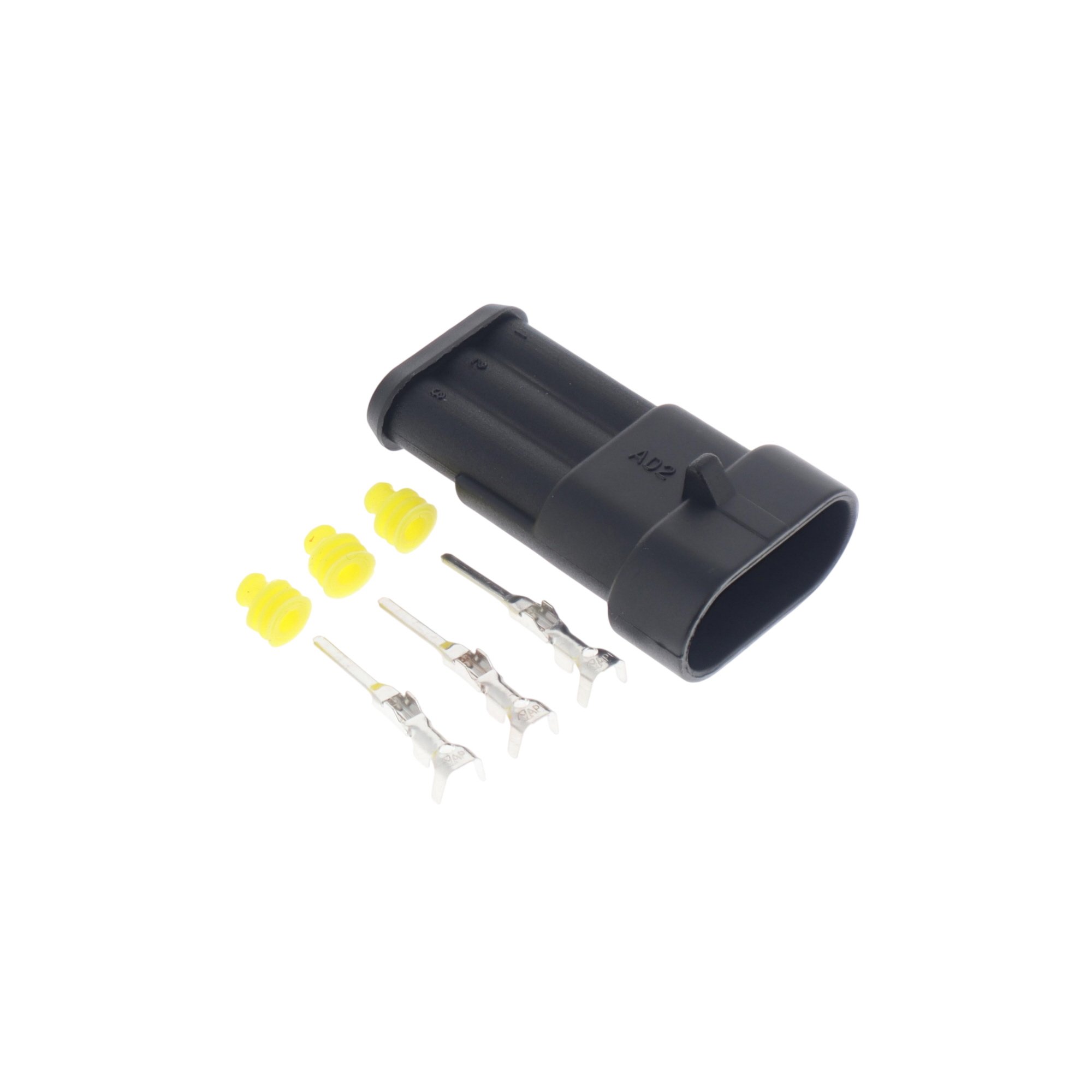

The Superseal Male Connector 3-Way is designed for secure and reliable electrical connections in various workshop settings. This 3-way connector is crafted to manage electrical currents efficiently, featuring a robust construction suitable for professional tool and machinery applications. The connector handles a maximum current rating of 14A per way and supports up to 24V DC, making it ideal for systems within these parameters. Its durability is evident in its operational temperature range from -40°C to 125°C, ensuring performance in diverse conditions.
Key Features:
- 3-way configuration for versatile connections
- Maximum current rating of 14A per way
- Voltage capacity up to 24V DC
- Temperature range from -40°C to 125°C
- Rated current of 10A to 20A per terminal
Typical Applications:
This connector is commonly used in automotive electrical systems and industrial machinery. It is suitable for equipment that requires robust electrical connections in harsh environmental conditions, offering reliable performance for both mobile and stationary applications.
Also known as:
Multi-pin plug, Electrical connector, Automotive connector.
Product Specifications
| L&S Part No. | 500 207 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - 3-way male connector design - Current rating: 14A max per way - Voltage rating: 24V DC max - Temperature range: -40°C to 125°C - Terminal current: 10A – 20A rated |
