Overview:

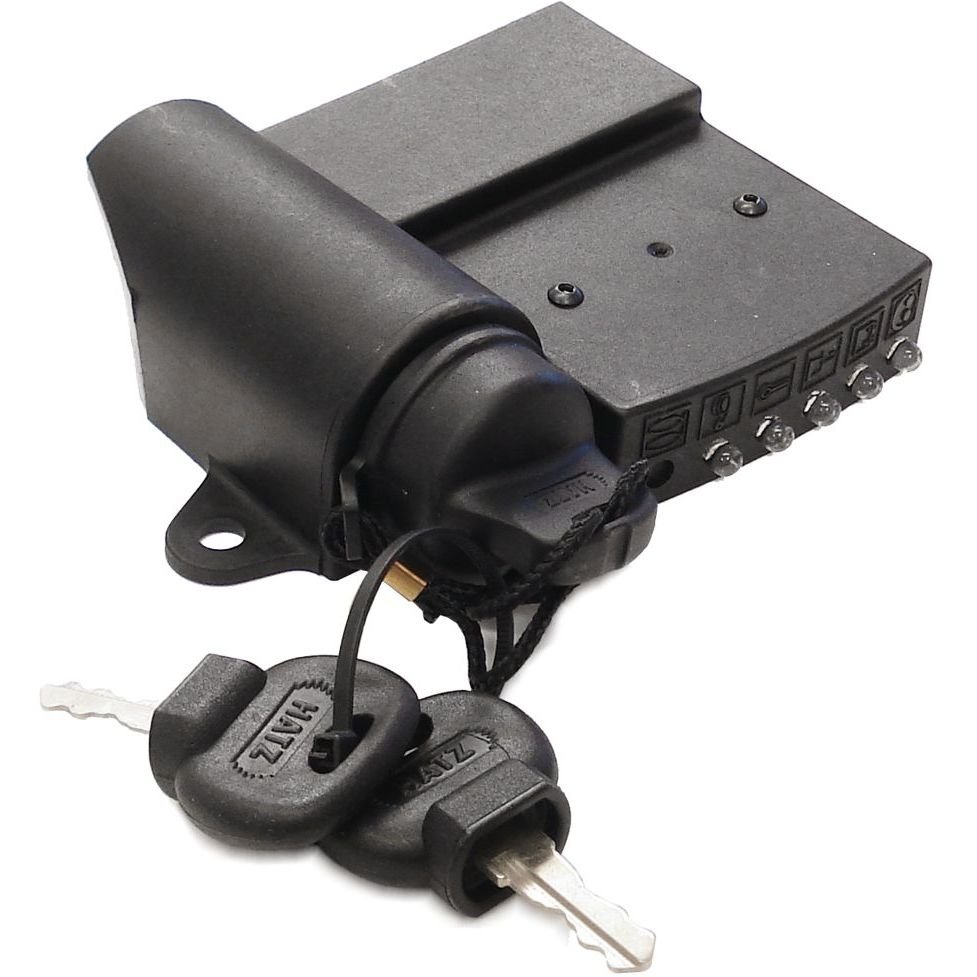

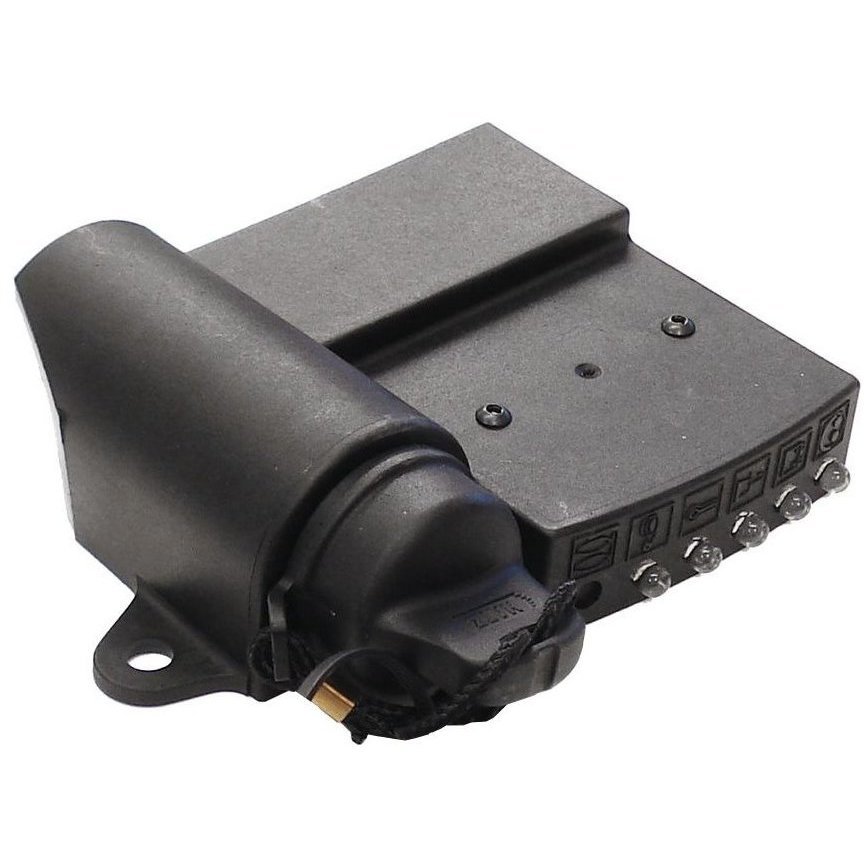

This genuine Hatz Switch Unit / Instrument Box is the main control module for single‐cylinder Hatz 1B Series engines, providing a secure key‐operated interface for starting and stopping the engine and protecting the control electrics. Built with a robust black moulded housing and a metal key‐switch barrel, it is designed to handle daily site and workshop use on construction and garden machinery. Supplied with two keys, it helps prevent unauthorised use while keeping operation straightforward. Engineered for seamless integration on compatible Hatz engines such as the 1B20 and 1B30, it offers a reliable replacement for worn or damaged units and supports routine maintenance. OEM No. 000001545300 confirms correct fit and specification within the Hatz 1B platform.
Key Features:
- Genuine Hatz part for verified fit and performance (OEM No. 000001545300)
- Durable, weather‐resistant housing with metal key barrel for long service life
- Supplied with two matching keys for secure operation and access control
- Designed to integrate with the standard Hatz 1B Series engine wiring
- Stable, reliable switching for repeated start/stop use in tough environments
- Compact form factor suited to engine‐mounted installation
- Straightforward replacement for worn or damaged control boxes
- Suitable for construction, hire, and grounds care equipment using 1B engines
- Helps protect electrical controls from knocks and contamination
- Supports correct operation and easy servicing of Hatz 1B engines
Typical Applications:
Used on machinery powered by Hatz 1B engines commonly found in construction and garden sectors. Typical examples include plate compactors, small generators, water pumps, light industrial mixers, and similar equipment. Ideal when refurbishing engines, replacing failed switch units, or improving machine security with a working keyed ignition.
Also known as:
Instrument box, control box, control unit, ignition switch assembly, start/stop box, operator panel, engine switch panel, electrical control module for Hatz 1B engines.
Fits Models:
1B20, 1B30, 1B40, 1B50
