Description
Overview:

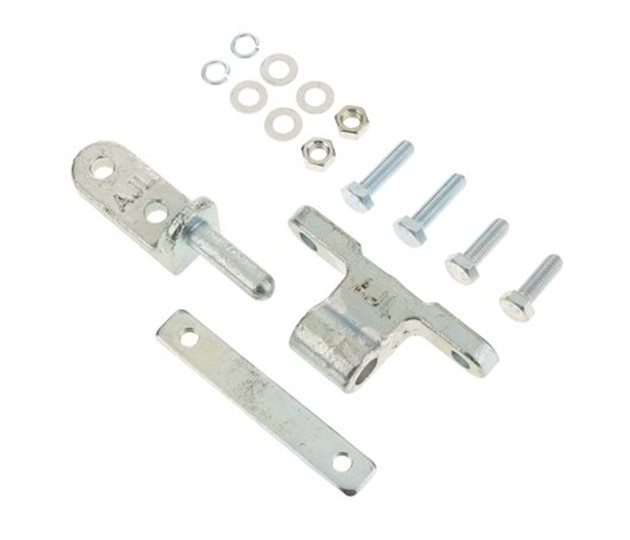

Tailboard Hinge Assembly, Bolt-On, Zinc Plated Mild Steel, 100mm (MPN 800 1422) is a complete hinge set for rear tailboards on commercial vehicles and trailers. Manufactured from mild steel for durability and finished with a clear passivated zinc plating to help resist corrosion in service. The assembly is a bolt-on pattern and is supplied with a hinge pin, hinge housing, base plates and a fixing pack for straightforward installation or replacement. Key dimensions include an overall length of 100 mm (3.94 in) and an overall height of 34.75 mm (1.37 in). The hinge pin measures 11.6 mm diameter x 40 mm long (0.46 in x 1.57 in), matching a housing bore of 12.5 mm diameter x 31 mm deep (0.49 in x 1.22 in). Base plate sizes are 26 mm x 66 mm (1.02 in x 2.60 in) and 20 mm x 98 mm (0.79 in x 3.86 in). Suitable for bodybuilders, fleet maintenance and repair work.
Key Features:
- Mild steel construction for strength and longevity
- Zinc plated, clear passivated finish for corrosion protection
- Bolt-on fitting; supplied with fixing pack
- Complete assembly with hinge pin, housing and bases
- Overall length: 100 mm (3.94 in)
- Overall height: 34.75 mm (1.37 in)
- Hinge pin: Ø11.6 mm x 40 mm (0.46 in x 1.57 in)
- Hinge housing: Ø12.5 mm x 31 mm (0.49 in x 1.22 in)
- Base plate: 26 mm x 66 mm (1.02 in x 2.60 in)
- Base plate: 20 mm x 98 mm (0.79 in x 3.86 in)
Typical Applications:
Used to mount and hinge tailboards and drop gates on rigid truck bodies, tippers, plant and equipment trailers, agricultural balers and waste skips. Suitable for new builds, refurbishments and service replacements in commercial vehicle workshops and fleet maintenance.
Also known as:
Tailgate hinge assembly; Tailboard hinge kit; Rear board hinge; Drop door hinge kit; Body hinge set
Product Specifications
| L&S Part No. | 800 1422 |
|---|---|
| Unit of Sale | 1 |
