Description
Overview:

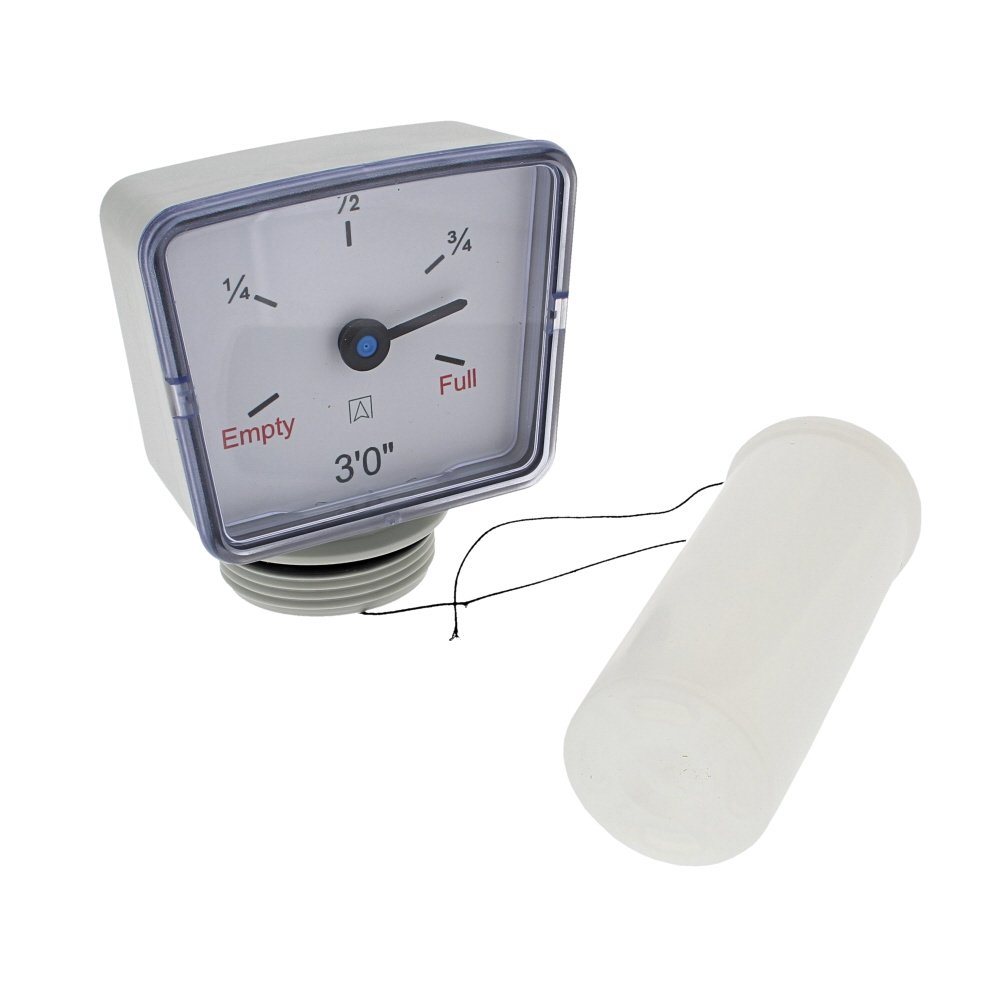

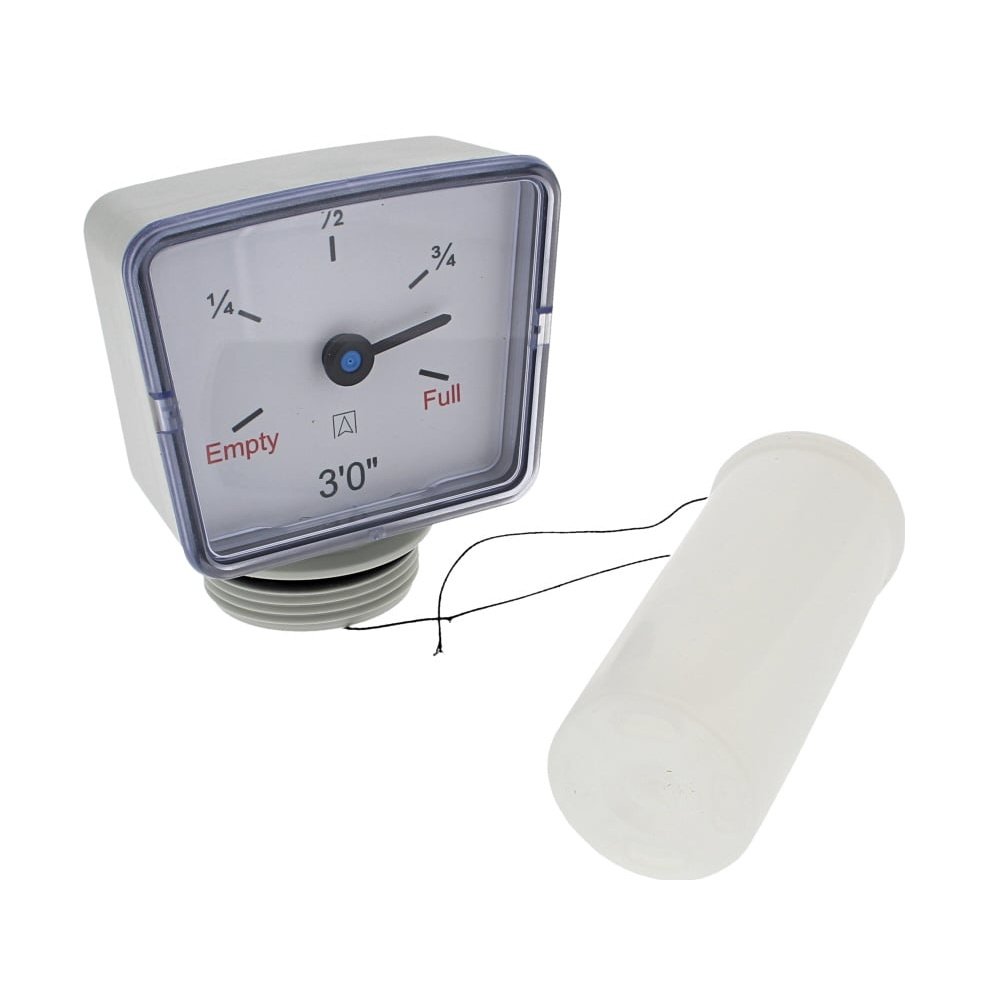

The FG3E Tank Level Gauge is a mechanical float‐type indicator for 3 ft (approx. 91 cm) storage tanks used with diesel, heating oil, lube oils, water, and antifreeze. Built with durable, corrosion‐resistant materials, it mounts on the top of the tank and gives a clear visual reading of contents, marked at EMPTY, 1/4, 1/2, 3/4, and FULL. A 1 inch M BSPP male thread (approx. 25 mm) allows straightforward fitting into a standard tank boss. The gauge is simple to read at a glance, helping users track consumption and plan refills. Suitable for static tanks serving generators, plant, agricultural equipment, and domestic heating systems. A related variant, FGUE, is available for deeper tanks with measurement up to 250 cm, but FG3E is calibrated specifically for 3 ft tanks.
Key Features:
- Mechanical float operation for dependable, power‐free level indication
- Calibrated for 3 ft (approx. 91 cm) tank depth for accurate, repeatable readings
- Clear dial with EMPTY, 1/4, 1/2, 3/4, FULL for quick visual checks
- 1 inch M BSPP connection (approx. 25 mm) for easy top‐mount installation
- Suitable for diesel, heating oil, lube oils, water, and antifreeze
- Robust, corrosion‐resistant construction for long service life
- Helps prevent overfills and unexpected shortages by showing true contents
- No wiring, batteries, or calibration tools required
- Compact, low‐profile design to suit most plastic or steel tanks
- Readable in typical yard, workshop, or plant environments
Typical Applications:
Monitoring levels in domestic heating oil tanks, diesel day tanks for generators, plant and machinery fuel storage, farm and workshop bulk tanks, and small commercial or site storage tanks. Useful wherever a simple, top‐mounted, mechanical contents gauge is preferred for routine checks and refill planning.
Also known as:
Tank contents gauge, oil tank level indicator, diesel tank gauge, mechanical float gauge, fuel level dial, float‐operated contents indicator, oil level meter, mechanical tank gauge, contents dial gauge, tank level dial.
Alternate Part Numbers:
FG3E
Product Specifications
| L&S Part No. | FG3E |
|---|---|
| OEM No. | FG3E |
| Unit of Sale | 1 |
