Description
Overview:

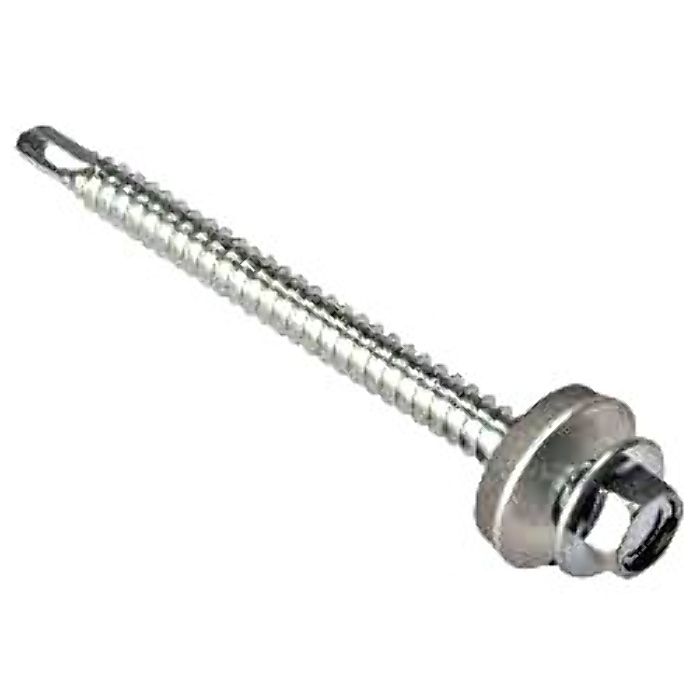

These Hex Self-Drilling Composite Panel Screws from Timco are purpose-made fixings for securing composite roof and wall panels to light section steel. Made from steel with a durable finish, each screw features a hexagon head for positive driving and an EPDM washer that compresses to form a reliable weather seal. The self-drilling tip creates its own hole in light-gauge steel, removing the need for pilot drilling and speeding up installation. At 5.5 x 82 mm (approx. 0.22 x 3.23 inches), they offer a firm grip through the panel and into the substrate. Supplied in a pack of 100, they are suitable for use with drill drivers or impact drivers fitted with a hex nutsetter, in construction, maintenance, and refurbishment work.
Key Features:
- Hex head for strong drive engagement and better control during installation
- Self-drilling tip for light section steel, removing the need for pilot holes and reducing install time
- EPDM washer provides a compressible, weather-resistant seal to help prevent water ingress
- Suitable for indoor and outdoor fixing of composite cladding and roofing panels
- 5.5 mm diameter (approx. 0.22 in) for solid hold in the substrate
- 82 mm length (approx. 3.23 in) to suit common panel build-ups
- Compatible with standard hex nutsetters on drill/impact drivers for quick fitting
- Pack of 100 for consistent, matched fixings across larger areas
Typical Applications:
Fixing insulated composite roof and wall panels to light-gauge steel purlins and rails; cladding and over-sheeting projects; agricultural buildings, garages, workshops, and commercial units; maintenance and repair of existing panel systems; general construction tasks where a sealed, weather-resistant fastening into light section steel is required.
Also known as:
TEK screws, cladding fixings, roofing fasteners, insulated panel fixings, hex head TEK fixings, composite cladding fixings, weather-seal screws, light-gauge steel fixings.
Alternate Part Numbers:
903 2102, 9032102
Product Specifications
| L&S Part No. | 903 2100 |
|---|---|
| Manufacturer | Timco |
| OEM No. | LH82W16B |

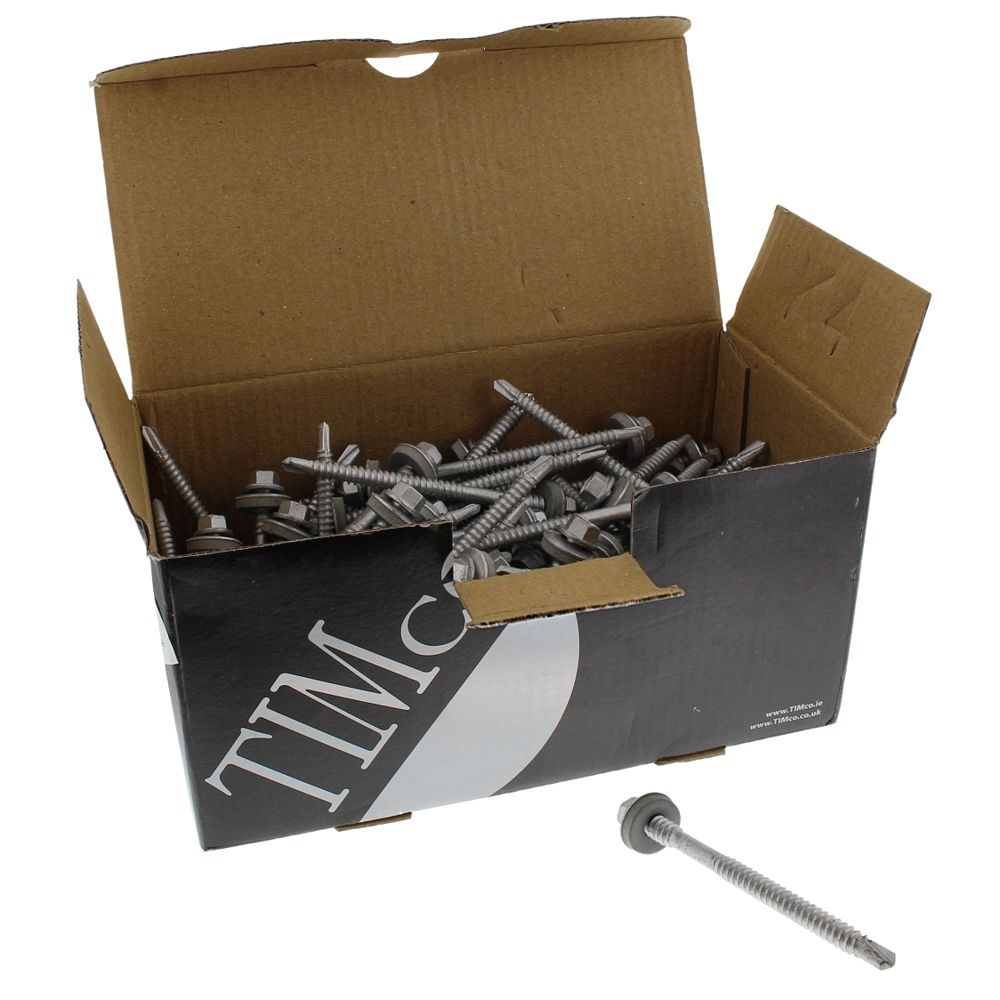

| Unit of Sale | Pack of 100 |
| Size | 5.5 x 82. Drill point No3 |
| Key Features | - Hex head for strong drive engagement - Self-drilling tip eliminates need for pilot holes - EPDM washer ensures weather-resistant seal - 5.5 mm diameter for solid substrate hold - Pack of 100 for large area coverage |
