Description

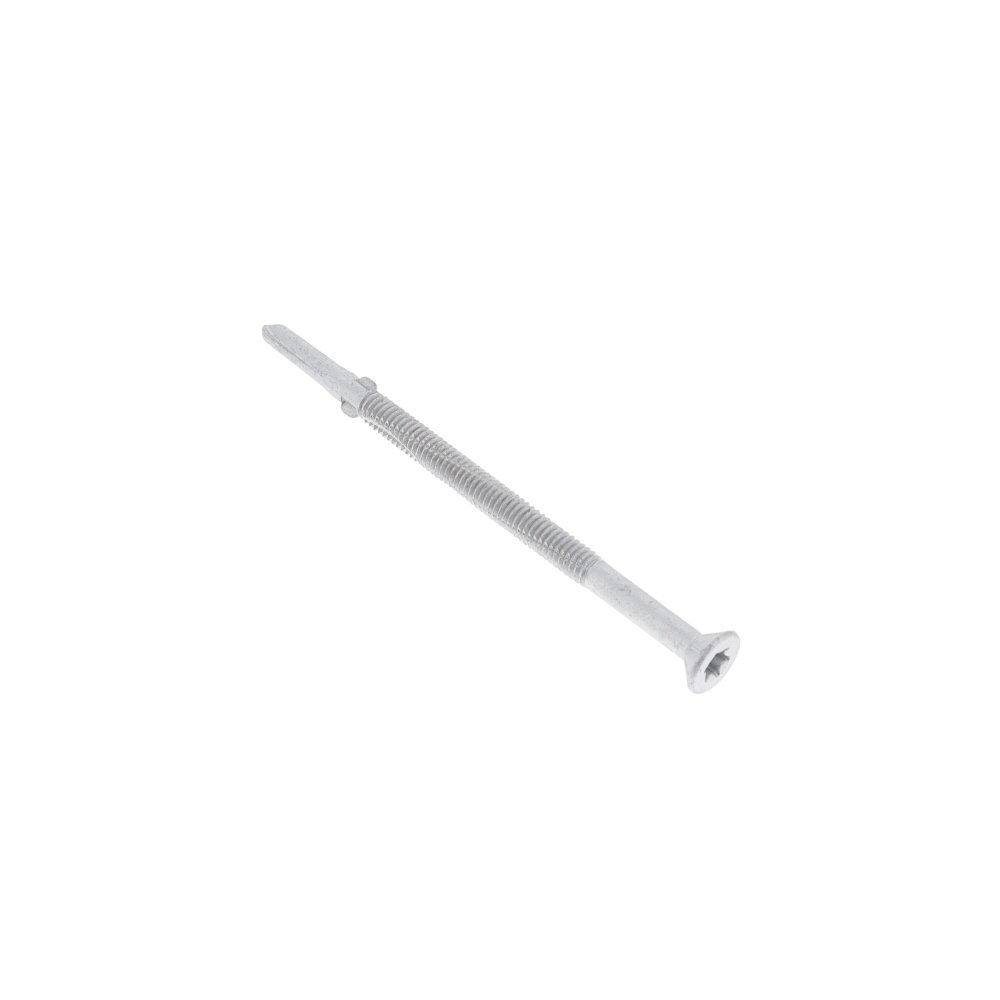

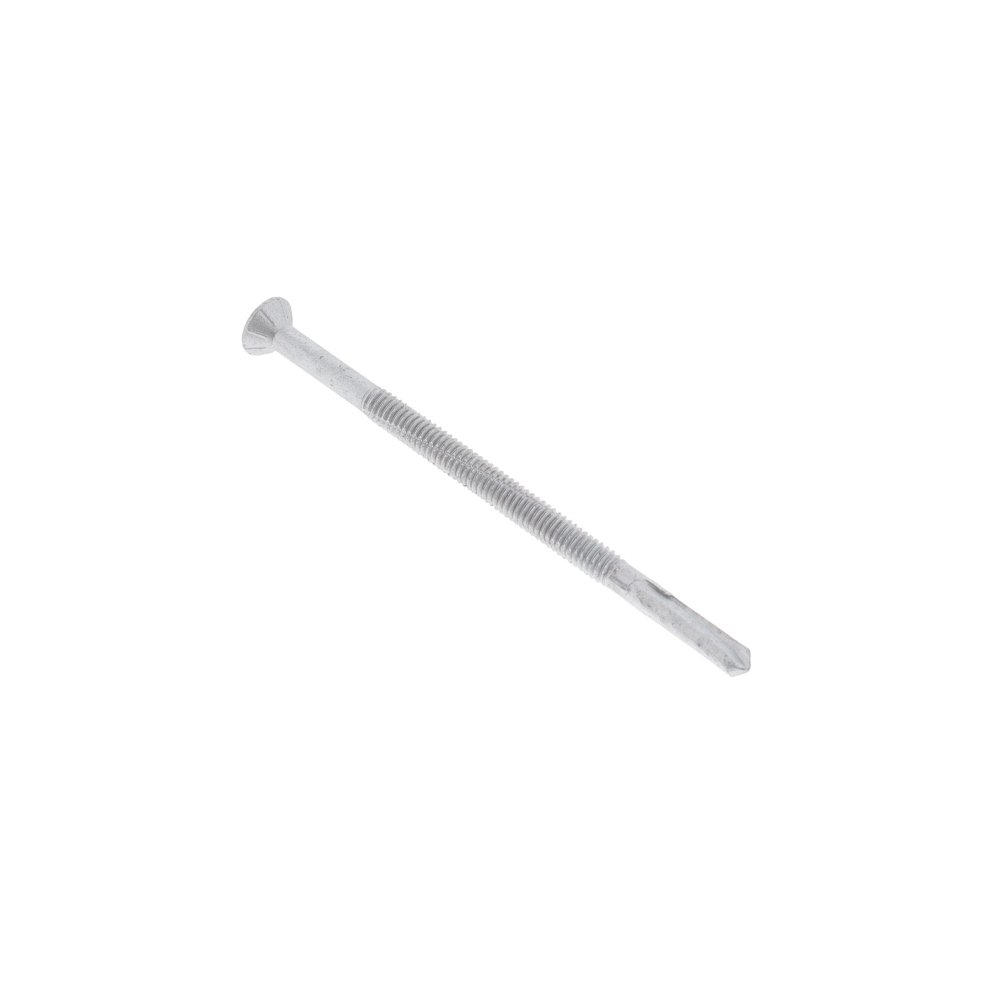

These Forgefix TechFast Timber to Steel CSK/Wing Screws have the following specification:
Size: 5.5 x 100mm
Clamping Thickness: 71mm
Effective Thread Length: 72mm

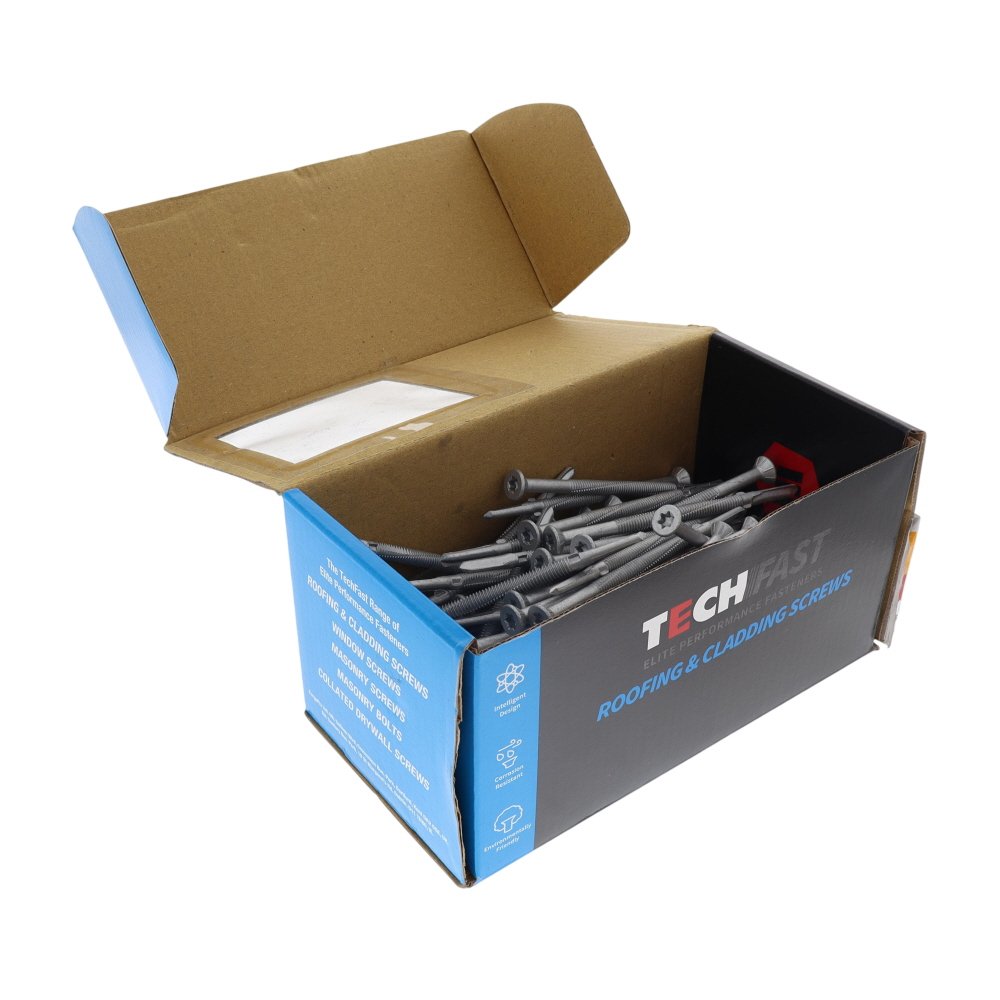

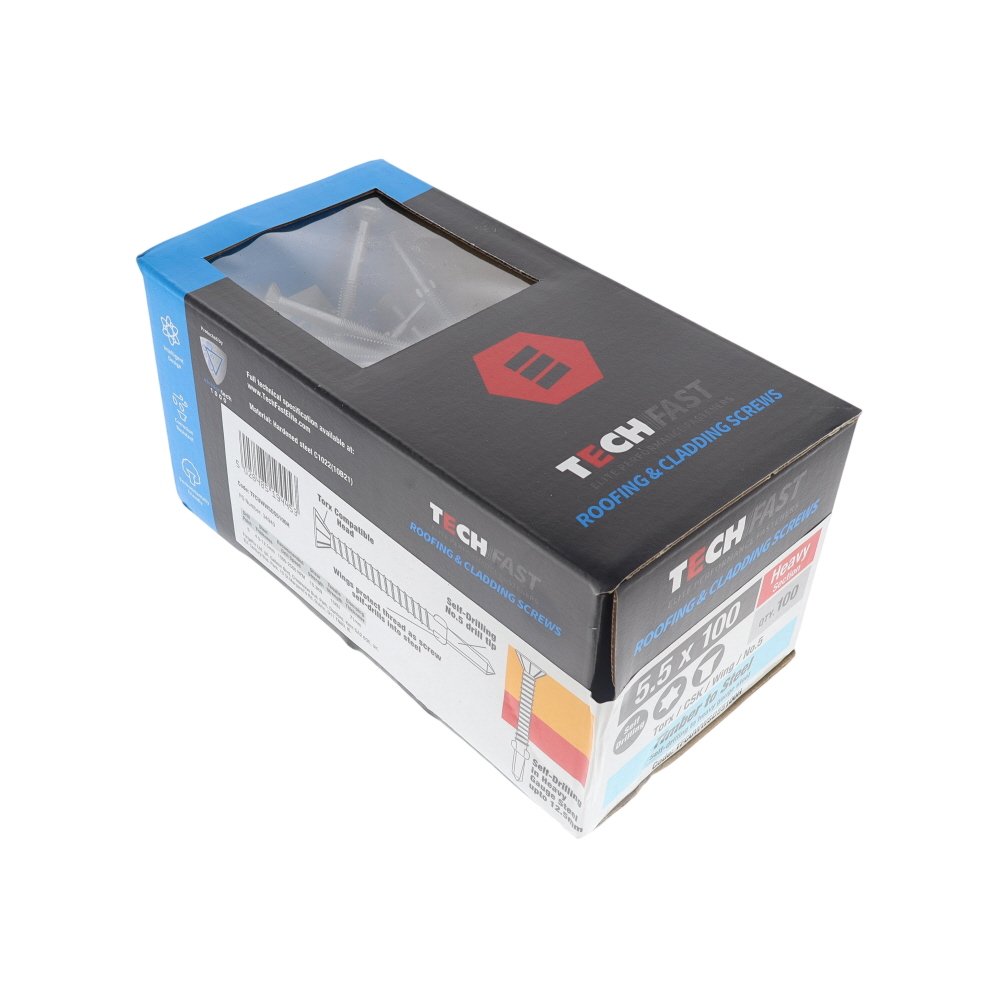

Pack Size: 50
Drill Tip: No.5
No.5 drill tip for self-drilling heavy gauge steel up to 12.5mm

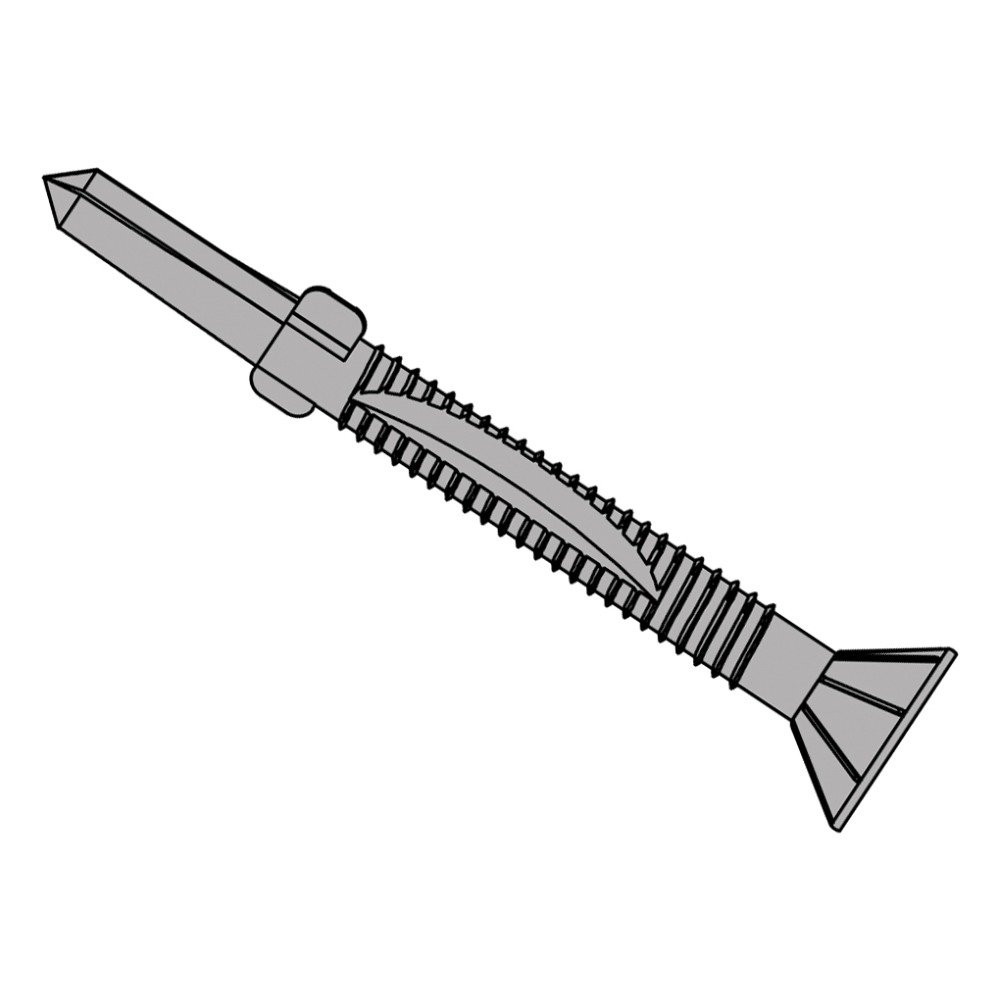

Forgefix TechFast Timber to Steel CSK/Wing Screws are used to join timber to steel frame buildings. The screws are fitted with breakaway wings that create a clearance hole to protect thread from engaging timber when drilling through. Breakaway wings will ream a hole, then break-off when they contact the metal surface to be drilled. The thread will then engage with metal. They have a TORX® compatible insert for a higher transmission of power. With improved countersinking from recessed ribs.
Fire and corrosion resistant. Complies with EU Safety, Health and Environmental requirements.
Size: 5.5 x 100mm
Clamping Thickness: 71mm
Effective Thread Length: 72mm
Pack Size: 50
Drill Tip: No.5
No.5 drill tip for self-drilling heavy gauge steel up to 12.5mm
Forgefix TechFast Timber to Steel CSK/Wing Screws are used to join timber to steel frame buildings. The screws are fitted with breakaway wings that create a clearance hole to protect thread from engaging timber when drilling through. Breakaway wings will ream a hole, then break-off when they contact the metal surface to be drilled. The thread will then engage with metal. They have a TORX® compatible insert for a higher transmission of power. With improved countersinking from recessed ribs.
Fire and corrosion resistant. Complies with EU Safety, Health and Environmental requirements.
Product Specifications
| L&S Part No. | FORTFC55100H |
|---|---|
| Manufacturer | ForgeFix |
| OEM No. | TFCUWWSD55100H |
