Description
Overview:

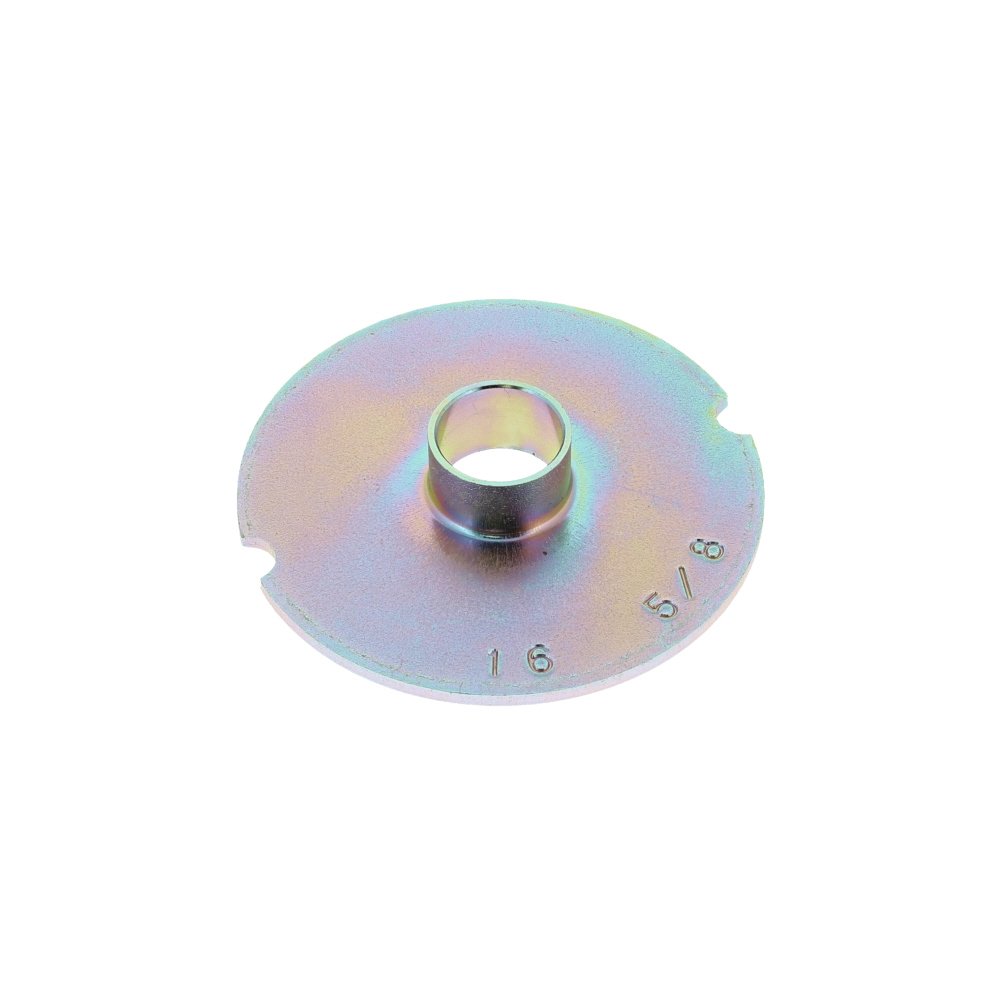

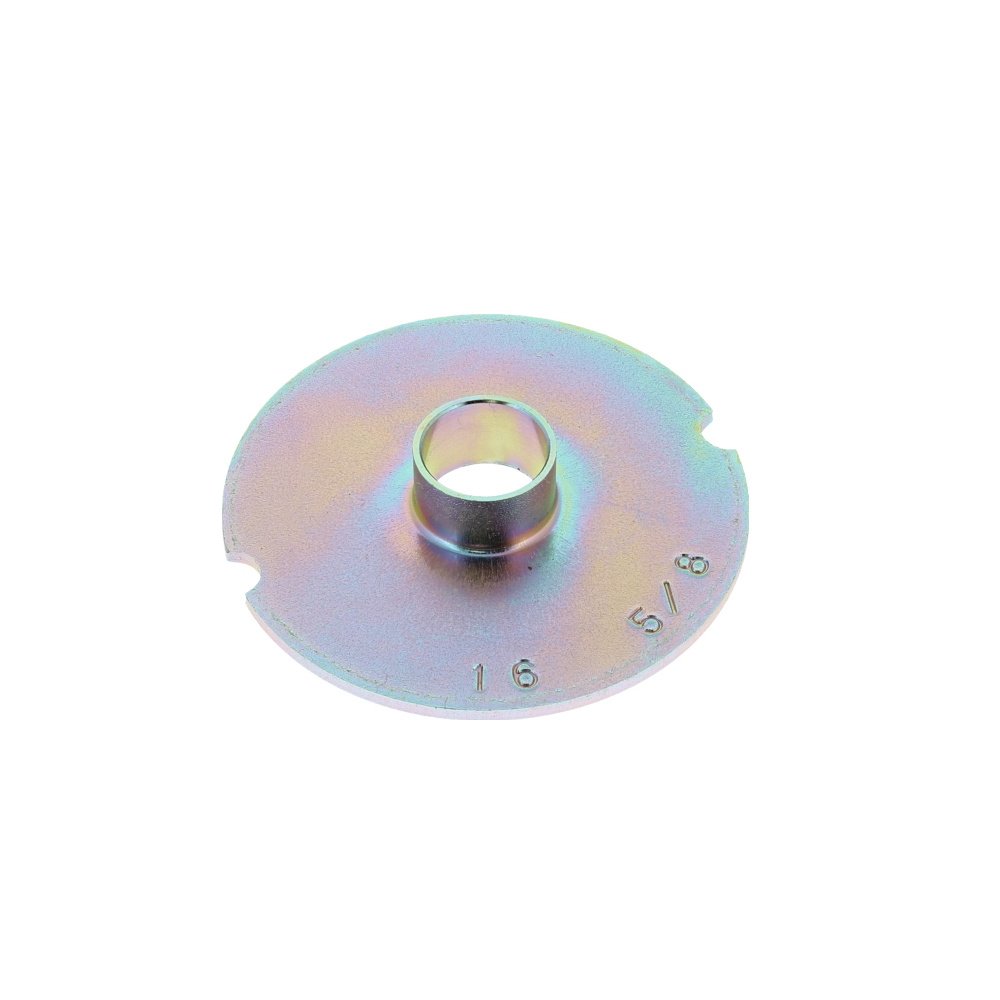

This 16 mm Template Guide is a genuine Hitachi/Hikoki spare (OEM No. 303353) for use with compatible plunge routers, including the Hikoki M3612DA and M12V2. Made from durable metal, it guides the router along jigs and patterns, keeping a fixed offset between the cutter and the workpiece for clean, repeatable results. The guide features a flange outer diameter of 59.6 mm (2.35 inches), a tube outer diameter of 15.9 mm (0.63 inches), a tube inner diameter of 14.0 mm (0.55 inches), and a height including flange of 10.6 mm (0.42 inches). It is designed to fit correctly to the router base, providing stable tracking on templates for accurate routing in cabinetry, carpentry and detailed woodworking tasks.
Key Features:
- Genuine Hitachi/Hikoki part for reliable fit and performance (OEM No. 303353)
- 16 mm nominal guide for controlled template and jig routing
- Durable metal construction for wear resistance and long service life
- Machined surfaces help maintain smooth movement against templates
- Easy to install and remove for quick setup changes on site or in the workshop
- Stable flange support reduces flex and helps prevent marking the workpiece
- Helps maintain a consistent offset between the bit and template for repeatable accuracy
- Suited to fine detail work where precision and control are important
- Dimensions: flange OD 59.6 mm (2.35 in), tube OD 15.9 mm (0.63 in), tube ID 14.0 mm (0.55 in), height incl. flange 10.6 mm (0.42 in)
Typical Applications:
Guided routing with jigs and patterns, including cabinet components, hinge recesses, inlay work, worktop cut-outs, letter templates, and repeatable edge or recess profiles. Ideal for carpentry, joinery, site work, and workshop tasks where consistent results and clean finishes are required.
Also known as:
Guide bush, template bush, template bushing, pattern guide, copying guide, guide collar.
Fits Models:
M3612DA, M12V2, M12SA2, M8V2, M8SA2
Alternate Part Numbers:
303353, HKK303353
