Description
Overview:
This 9 in (229 mm) Clutch Assembly is a complete replacement kit for heavy-duty site dumpers, engineered to restore smooth power transfer and consistent engagement. Built around a robust steel clutch cover and drive plate with durable friction linings, it is designed for demanding 4WD dumper use. The assembly features a 10-spline hub for secure fitment and effective torque transmission. Supplied as a comprehensive set, it is suitable for popular models including Thwaites MACH 273 and MACH 245, as well as selected Benford, Barford, and Winget machines. With a housing outer diameter of 285 mm and plate outer diameter of 230 mm, it meets common 9 in (229 mm) dumper clutch specifications, helping keep your transmission reliable on busy sites.
Key Features:

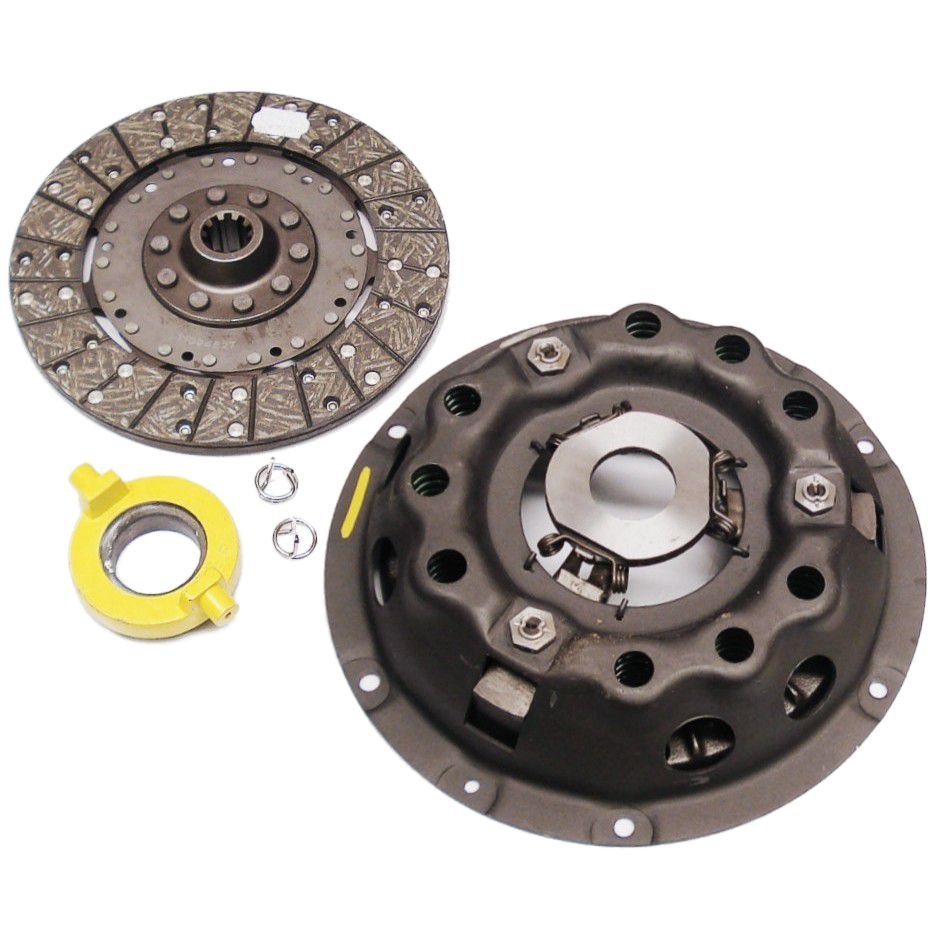

- Complete clutch kit: drive plate, clutch cover, spring retainers, and release bearing for a thorough renewal
- 9 in (229 mm) size with 10-spline centre for positive engagement and efficient torque transfer
- Housing OD: 285 mm; Plate OD: 230 mm for correct fitment on applicable 4WD dumpers
- Heavy-duty steel construction with quality friction linings for durability under site conditions
- Aims to reduce slip, judder, and poor take-up caused by worn components
- Helps protect gearbox and driveline by restoring proper clutch operation
- Suitable for Thwaites, Benford, Barford, and Winget applications where specifications match
- Practical choice for routine maintenance or full clutch overhaul
- Supplied ready to install with key service parts to minimise downtime
- Manufacturer Part Number (MPN): 109 109
Typical Applications:
For use on 4WD site dumpers in construction, utilities, groundworks, and landscaping. Ideal for restoring smooth engagement after slip or chatter, improving hill starts, and maintaining reliable performance in stop-start loading work. Suitable for fleet maintenance and preventative replacement during engine or gearbox service.
Also known as:
Dumper clutch assembly, 9-inch clutch kit (229 mm), clutch cover and plate set, 10-spline clutch, transmission clutch pack, replacement clutch unit for site dumpers.
Fits Models:
MACH 220, MACH 221, MACH 226, MACH 240, MACH 245, MACH 273, MACH220, MACH221, MACH226, MACH240, MACH245, MACH273
Alternate Part Numbers:
1583-1518, 15831518, T101729, CK1017, T12171, T7095, T6551
Product Specifications
| L&S Part No. | 109 109 |
|---|---|
| Unit of Sale | 1 |
| Size | 9" |
| Applications | MACH 220, MACH 221, MACH 226, MACH 240, MACH 245, MACH 273, MACH220, MACH221, MACH226, MACH240, MACH245, MACH273 |
| Machine Type | Dumpers |
| Fits Models | MACH 240 Dumper | MACH 245 Dumper | MACH 273 Dumper | MACH 226 Dumper | MACH 221 Dumper | MACH 220 Dumper |
