Description
Overview:

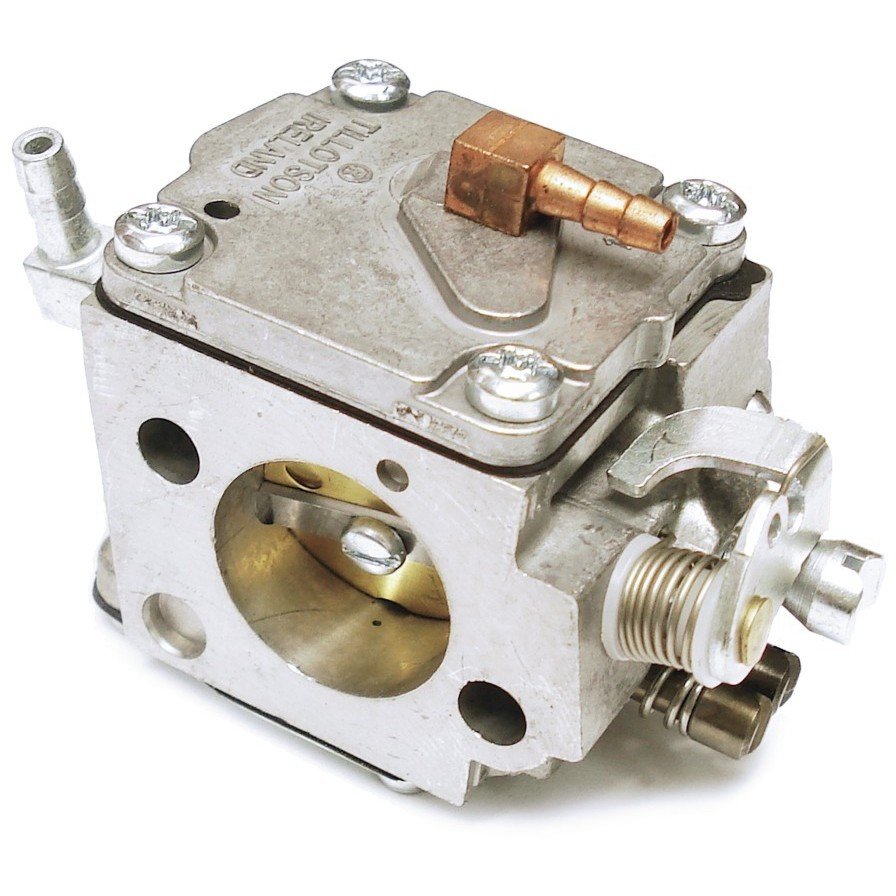

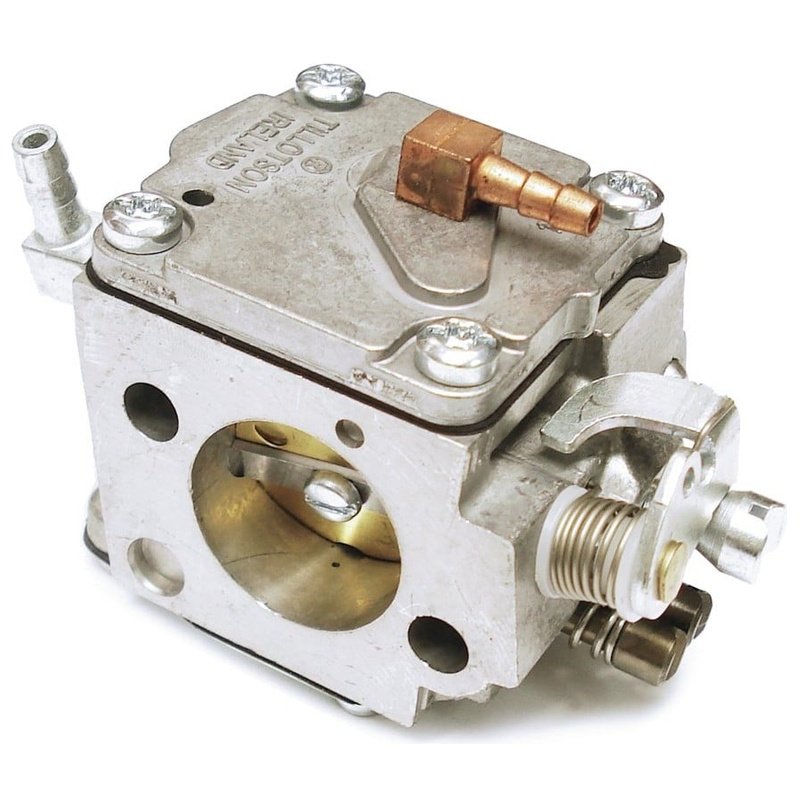

This non-genuine carburettor is a high-quality replacement made by Walbro to suit Makita petrol cut-off saws. It is designed to replace the Tillotson HS-273A pattern unit used on machines such as the Makita DPC6200 and DPC6400. Built around a robust die-cast aluminium body with precision metering components, it regulates the fuel-air mixture for reliable starting, crisp throttle response, and clean running across the rev range. As a diaphragm-type carburettor for two‐stroke engines, it performs consistently in any working position, making it well suited to handheld power cutters on site. Supplied as a direct replacement for OEM reference 394 150 050, it helps restore performance on worn or poorly running tools without modification to the machine.
Key Features:
- Non-genuine part manufactured by Walbro to replace Tillotson HS-273A on Makita DPC models
- Direct replacement for OEM no. 394 150 050 to simplify selection and fitting
- Durable die-cast aluminium construction for long service life in dusty site conditions
- Stable fuel metering for easier starting, steady idle, and strong acceleration under load
- Compatible with standard two‐stroke petrol/oil mixes used in Makita power cutters
- Designed for straightforward installation using basic hand tools to minimise downtime
- Supports routine tuning and maintenance for optimum cutting performance
- Reliable operation in any orientation thanks to diaphragm carburettor design
- Suitable for regular servicing to help reduce fuel consumption and plug fouling
Typical Applications:
Used on Makita disc cutters for cutting concrete, brick, block, stone, and asphalt. Ideal when the saw is hard to start, bogs on throttle, hunts at idle, or shows high fuel use. A practical choice for workshop servicing and field repairs to keep site equipment running consistently.
Also known as:
Cut-off saw carburettor, Makita DPC carb assembly, replacement fuel metering unit, HS series diaphragm carb, pattern HS-273A carburettor, concrete saw carb for Makita, DPC6400 carb body.
Fits Models:
DPC6200, DPC6400, DPC6410
Alternate Part Numbers:
394 150 050, 394150050, HS-273A, HS273A, E6024
Product Specifications
| L&S Part No. | 620 005 |
|---|---|
| Part Type | Non Genuine Part |
| Manufacturer | Walbro |
| OEM No. | HS273A / WJ-105 |
| Unit of Sale | 1 |
| Applications | DPC6200, DPC6400, DPC6410 |
| Fits Brands | Makita |
| Fits Models | DPC6200 |
