Description
Overview:

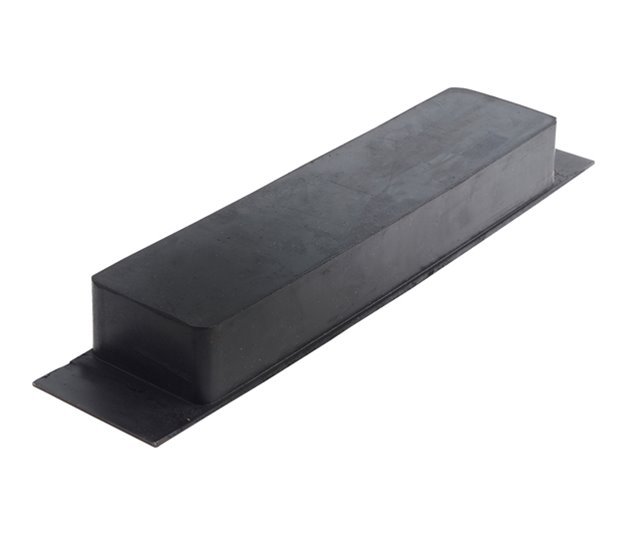

Tipper Pad, Rubber on Steel, Weld-On, 288 x 75 x 39 mm (MPN 800 1421) is a rubber and steel buffer plate for use on tipping bodies and related equipment. It combines a black synthetic rubber pad with a mild steel base plate finished in a black powder coat for durability. The rubber section measures 288 mm (11.34 in) long by 75 mm (2.95 in) wide by 39 mm (1.54 in) thick to absorb impact and reduce noise at body contact points. The steel base is configured for welding, providing a secure, permanent installation without fasteners. The overall plate length is 355 mm (13.98 in) with a 3 mm (0.12 in) stand-off. Suitable for rigid tippers, tipper trailers, and other commercial vehicle bodywork where a robust stop/buffer is required to protect the body and subframe during tipping operations.
Key Features:
- Black synthetic rubber pad: 288 x 75 x 39 mm (11.34 x 2.95 x 1.54 in)
- Mild steel base plate with black powder-coated finish
- Overall plate length: 355 mm (13.98 in)
- Stand-off: 3 mm (0.12 in)
- Weld-on fixing for a permanent fit
- Width matches base at 75 mm (2.95 in) for a stable footprint
- Designed for tipper body applications on commercial vehicles
Typical Applications:
Used as a stop/buffer pad on tipping bodies and tipping trailers. Fitted at body rests or other contact points between the body and subframe/chassis to cushion impacts, reduce metal-to-metal contact, and limit wear during loading, tipping, and body lowering cycles.
Also known as:
Tipper buffer
Rubber buffer pad
Body stop pad
Weld-on tipper pad
Rubber/steel bumper
Product Specifications
| L&S Part No. | 800 1421 |
|---|---|
| Unit of Sale | 1 |
