Description
Overview:

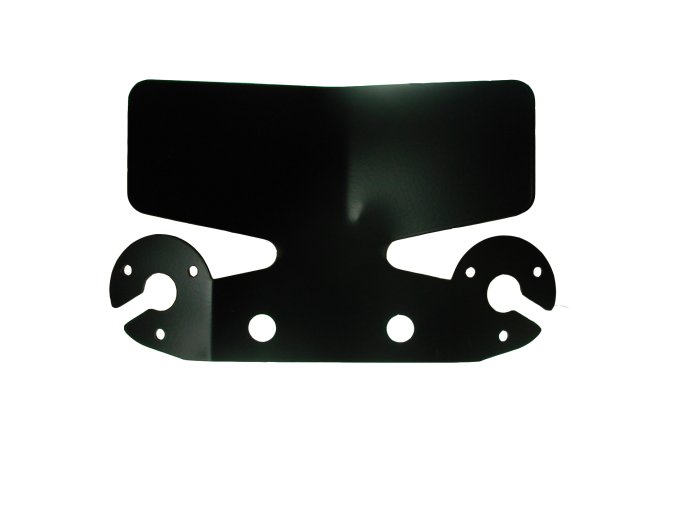

Towbar Bumper Protector Black, Double 7-Pin Socket Mount (MPN 763 375) is a towbar-mounted protector with two integrated socket positions for 7-pin 12N and 12S electrics. It is installed between the towball and the towbar on flange-type towbar setups to help prevent scuffs and impacts to vehicle bumpers, especially modern plastic bumpers, when coupling or uncoupling trailers and caravans. The slotted socket mounts allow existing 7-pin sockets to be transferred across without rewiring, saving time during installation. Finished in black to match typical towbar hardware, it provides a stable platform for twin electrics and a protective barrier behind the towball. The protector measures 180 mm high (7.09 in) by 248 mm wide (9.76 in), with approximately 90 mm (3.54 in) of usable mounting space for the electrical sockets. Installation follows standard towball bolt specifications and torque settings as detailed below.
Key Features:
- Black bumper protector with mounts for two 7-pin sockets (12N and 12S)
- Fits between the towball and towbar on flange-type towbars
- Overall height: 180 mm (7.09 in)
- Overall width: 248 mm (9.76 in)
- Approximate socket mounting space: 90 mm (3.54 in)
- Reuse existing sockets without rewiring via slotted mountings
- Helps protect modern plastic bumpers during coupling and uncoupling
- Use BS3692 M16 high tensile towball bolts, grade 8.8
- Use new shakeproof washers or grade 8 nylon locking nuts
- Tighten towball bolts to 240 Nm
Typical Applications:
Used on vehicles with flange-type towbars that require twin 7-pin (12N/12S) electrics, including towing setups for trailers, plant transporters and caravans. Commonly fitted to cars, vans and 4x4s to add a protective barrier behind the towball and to provide a tidy, secure mounting for two 7-pin sockets while reducing the risk of bumper damage during hitching operations.
Also known as:
Tow-Tekta bumper protector
Twin socket towbar plate
Double 7-pin socket mounting plate
Towbar bumper shield
Maypole part number MP443
Product Specifications
| L&S Part No. | 763 375 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
