Description
Overview:

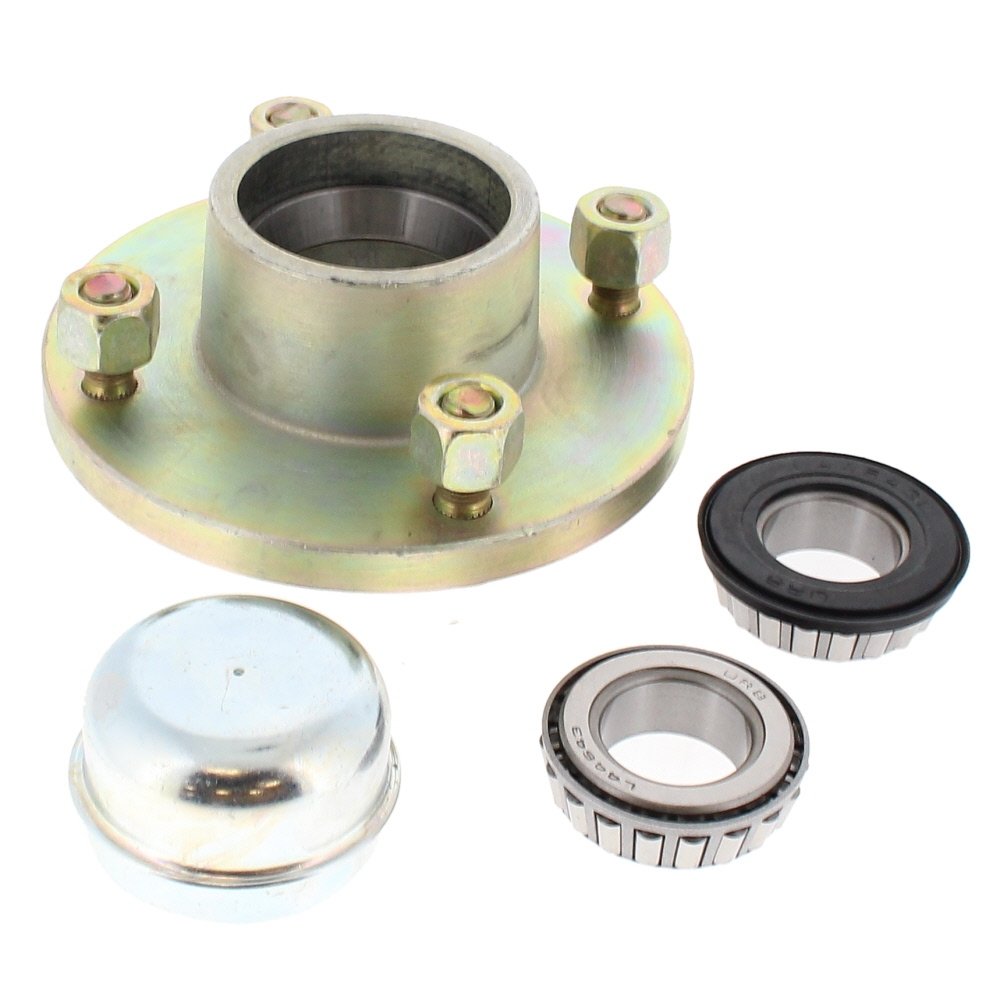

The Wheel Hub Assembly for Knott Avonride Trailers - HG 505 is a robust replacement hub for trailer wheel assemblies. Built from durable cast steel, it provides a secure interface between the wheel and the axle to support smooth rotation under load. The hub uses a 1 inch (25.4 mm) taper bearing arrangement for efficient load distribution and reduced friction, and is designed around a 4 inch (101.6 mm) Pitch Circle Diameter (PCD) with four wheel studs. Supplied with a protective metal cap plus four studs and nuts, it is suitable for general-purpose and heavy-duty trailer use. Compatible with a wide range of Knott Avonride running gear, this assembly is a practical choice for maintaining reliability on road-going and site trailers. Manufacturer Part Number: C24009.001.
Key Features:
- Cast steel hub body for high strength and long service life
- 4-stud layout with 4 inch (101.6 mm) PCD for common Knott Avonride wheel patterns
- 1 inch (25.4 mm) taper bearing system for smooth running and controlled load transfer
- Supplied with metal dust cap, four studs, and four nuts for a secure fit
- Accurate machining helps minimise vibration and tyre wear
- Supports heavy loads and frequent use on road or off-road surfaces
- Straightforward fitment for standard 1 inch (25.4 mm) tapered trailer axles
- Low-maintenance design with good resistance to impact and wear
Typical Applications:
Suitable for general goods trailers, car transporters, plant and machinery trailers, boat and leisure trailers, and agricultural yard trailers. Ideal for fleet maintenance, workshop repairs, and DIY refurbishment where a reliable 4-stud, 4 inch (101.6 mm) PCD hub with 1 inch (25.4 mm) taper bearings is required.
Also known as:
4-stud trailer hub, 4 on 4 inch (4 x 101.6 mm) PCD hub, 1 inch (25.4 mm) taper hub, Knott 101.6 mm PCD hub, trailer wheel mounting hub, hub kit for 1 inch taper axle.
Product Specifications
| L&S Part No. | 800 130 |
|---|---|
| Manufacturer | Knott Avonride |
| OEM No. | C24009.001 |
| Unit of Sale | 1 |
| Machine Type | Trailers |
