Description
Overview:

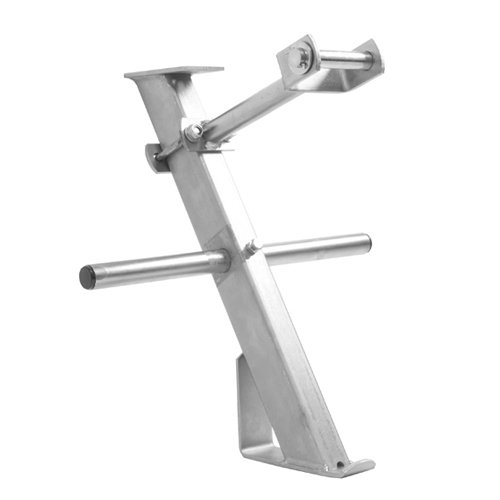

Winch post for small boat trailers with a height-adjustable mounting bracket and provision for a bow snubber. The main upright is a heavy-duty 40 x 60 mm tube with a clear zinc plated finish. Compatible with most small hand winches and supplied with hardware to mount a bow snubber bracket to the upright. Designed for straightforward fitting and reliable positioning of the winch and bow snubber.
Specification:
- Suitable for most small boat trailers
- Compatible with most small hand winches
- Height-adjustable mounting bracket with 19 mm diameter solid spindle for bow snubber (MP170, not supplied)
- U-bolt and plate supplied for mounting the bow snubber bracket to the main upright
- Main upright: heavy-duty 40 x 60 mm tube
- Overall fitted height: 45 cm (foot to winch mounting plate)
- Foot plate footprint: 50 x 150 mm (foot plate from 50 x 6 mm strip)
- Winch mounting plate: 60 x 118 mm
- Winch mounting: 1 x M10 stud and 1 x 10 mm slot (mounting centres 69-84 mm)
- Finish: clear zinc plated
- Maypole part number: MP796
Typical Applications:
Mounted at the bow of small boat trailers to support a hand winch and bow snubber for launching, recovery and securing the craft in transit. Suitable for new builds or replacing worn winch posts on existing trailers.
Product Specifications
| L&S Part No. | 764 017 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Heavy-duty 40x60mm tube with clear zinc plating - Suits most small hand winches - Height-adjustable bracket with 19mm solid spindle - 45cm overall height to winch mount - U-bolt supplied for snubber bracket mounting |
