Description
Overview:

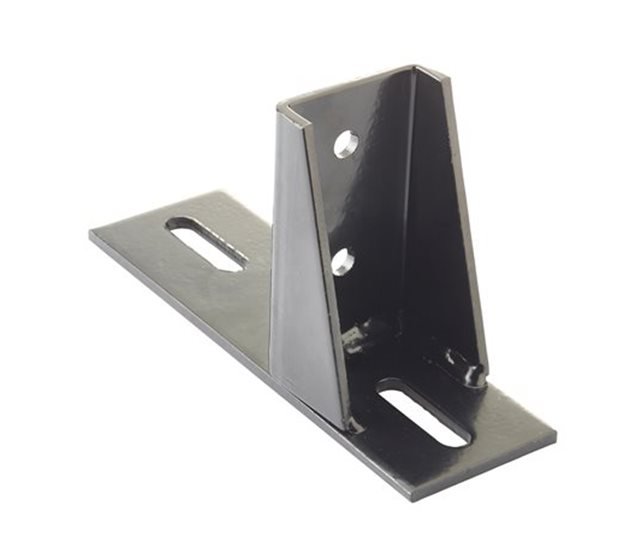

The Body Mounting Bracket Pedestal (MPN 800 1328) is a fabricated mild steel pedestal used to support and secure vehicle bodies or subframes to the chassis on commercial vehicles. Made from 5 mm (0.20 in) mild steel plate with a durable E-Coat black finish, it is suitable for repair, refurbishment and new body installations. The bracket measures 178 mm (7.01 in) in length, 50 mm (1.97 in) in width and 95 mm (3.74 in) in height. It provides a stable stand-off between body and chassis and includes both round holes and slotted fixings to aid alignment during fitting. Designed for chassis with 100 mm (3.94 in) runners, it sits within a universal range for use across trucks and trailers. This pattern has been previously used on older Ford Transit and Mercedes Sprinter platforms where the dimensions and fixing details match the original parts.
Key Features:
- Type: Pedestal body mounting bracket
- Material: Mild steel, 5 mm (0.20 in) thickness
- Finish: E-Coat black for corrosion protection
- Overall dimensions: 178 x 50 x 95 mm (7.01 x 1.97 x 3.74 in)
- Fixings: 2 x 8.5 mm (0.33 in) round holes
- Adjustment: 2 x 11 x 40 mm (0.43 x 1.57 in) slots
- Suited to chassis with 100 mm (3.94 in) runners
- Fabricated construction for robust body-to-chassis mounting
- Range: Universal; suitable for trucks and trailers
- Black coating provides a clean finish ready for service
Typical Applications:
Used as a body-to-chassis pedestal on commercial vehicles, including trucks and trailers, to support bodywork, platforms or subframes where a stand-off from the chassis runner is required. Commonly selected for maintenance and replacement work where earlier Ford Transit and Mercedes Sprinter dimensions are specified, and for general body building on 100 mm runner chassis.
Also known as:
Body pedestal bracket
Chassis body mount
Body mounting stand-off
Body bearer pedestal
Fabricated pedestal bracket
Product Specifications
| L&S Part No. | 800 1328 |
|---|---|
| Unit of Sale | 1 |
