Description
Overview:

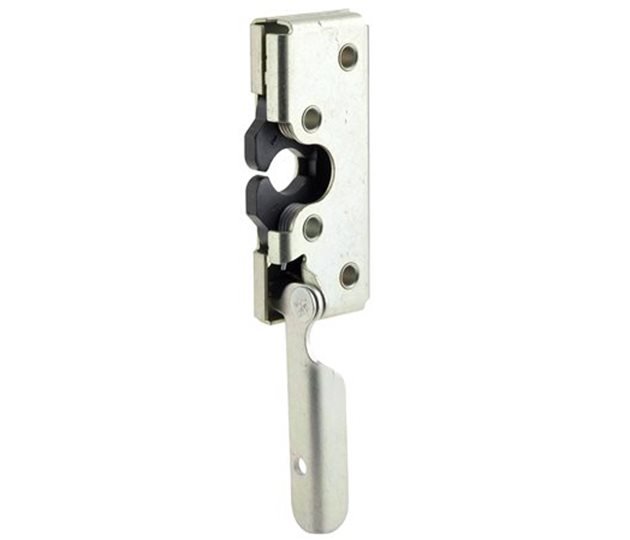

Two Rotor Door Latch, Left Hand, Vertical Lever, Zinc Plated Steel, 115mm (MPN 800 1369) is a compact two-rotor latch for commercial vehicle and equipment doors where a secure, staged closure is required. Manufactured from mild steel with a zinc plated clear chromate finish, it offers durable service and corrosion protection for exterior or sheltered bodywork. The mechanism provides a 2-stage latching action to help retain the door securely on first and second catch, reducing bounce on closure. A vertical release lever suits rod or cable linkages set to operate from above or below the latch. With overall dimensions of 115 mm length x 46 mm width x 20 mm thickness, and 7 mm fixing holes, it is sized for straightforward installation on body panels and frames. Typical uses include side doors, service doors and access hatches on trucks, trailers, buses, generator sets, horseboxes and cabs. Branded by TriMark.
Key Features:
- Mild steel construction for strength and durability
- Zinc plated clear chromate finish for corrosion resistance
- Left hand configuration with vertical release lever
- Two-stage latching action for secure door retention
- Overall length: 115 mm (approx. 4.53 in)
- Width: 46 mm (approx. 1.81 in)
- Overall thickness: 20 mm (approx. 0.79 in)
- Fixing hole diameter: 7 mm (approx. 0.28 in)
- TriMark branded hardware
- Suitable for exterior or interior body hardware on commercial vehicles
Typical Applications:
Used on commercial vehicle and trailer body doors, access panels and hatches across trucks, trailers, buses and coaches, generator sets, horseboxes and vehicle cabs. Common on service doors, side lockers and plant transport bodywork where a compact two-rotor latch with a vertical release lever is required.
Also known as:
Two-stage rotary latch, Twin rotor latch, Double rotor latch, Left-hand rotary latch, Vertical release latch
Product Specifications
| L&S Part No. | 800 1369 |
|---|---|
| Unit of Sale | 1 |
