Description
Overview:

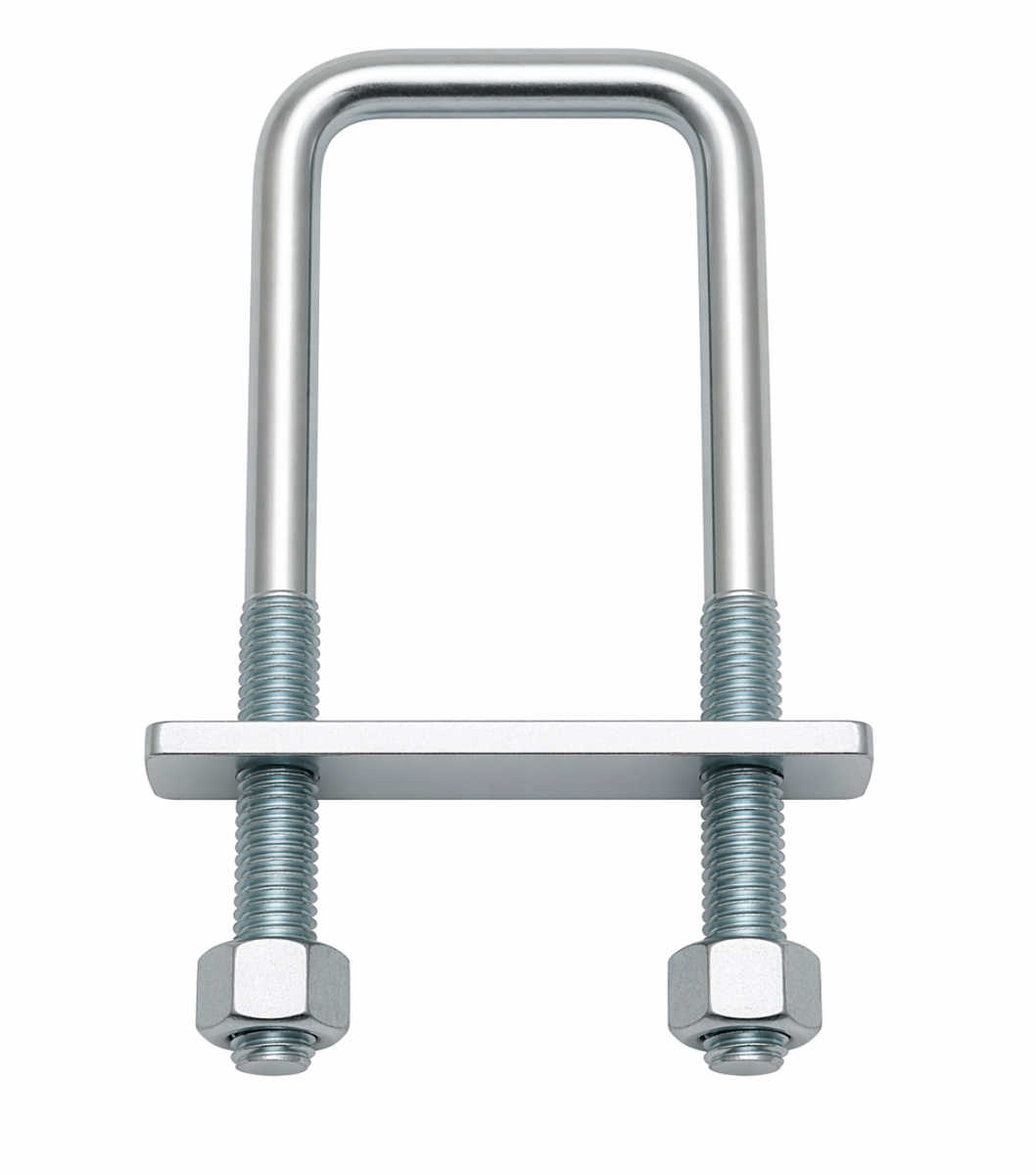

This square type U-bolt is a clamp fastener for securing box section, channel, and other flat-faced components to brackets or mounting plates. It uses two parallel threaded legs to provide a stable through-bolt fixing, while the square internal profile seats securely against flat surfaces to reduce movement. The size is 70 x 40 x 40 mm, with a 30 mm threaded section on each leg and a 10 mm thread diameter. “ID” refers to the inside width of 40 mm. Supplied with matching nuts for each leg to simplify installation. Typical uses include fixing tube or trunking to frames, attaching guards or equipment to racking, and clamping square posts or sections in vehicle, workshop, and site applications. Approximate unit weight is 0.235 kg for handling and selection purposes.
Key Features:
- Square-form U-bolt for clamping box and rectangular sections
- Leg length: 70 mm
- Inside width (ID): 40 mm
- Minimum length: 40 mm
- Thread length: 30 mm per leg
- Thread diameter: 10 mm
- Supplied with hex nuts for both legs
- Approximate unit weight: 0.235 kg
- Suitable for brackets drilled to suit 10 mm threads
- Square profile seats securely against flat faces
Typical Applications:
Used to fasten square or rectangular tube to plates, brackets, or channel; mounting guards, ducting, trunking, and equipment on frames or racking; securing box section on trailers, plant, and vehicles; general clamping of posts, beams, and fabrications in workshops, site installations, and maintenance tasks where a reliable through-bolt clamp is required.
Also known as:
Square U-bolt, U clamp square, box section U-bolt, rectangular section U-bolt, U strap bolt, M10 square U-bolt, channel clamp U-bolt, square pipe clamp bolt.
Product Specifications
| L&S Part No. | 800 6121 |
|---|
