Description
Overview:

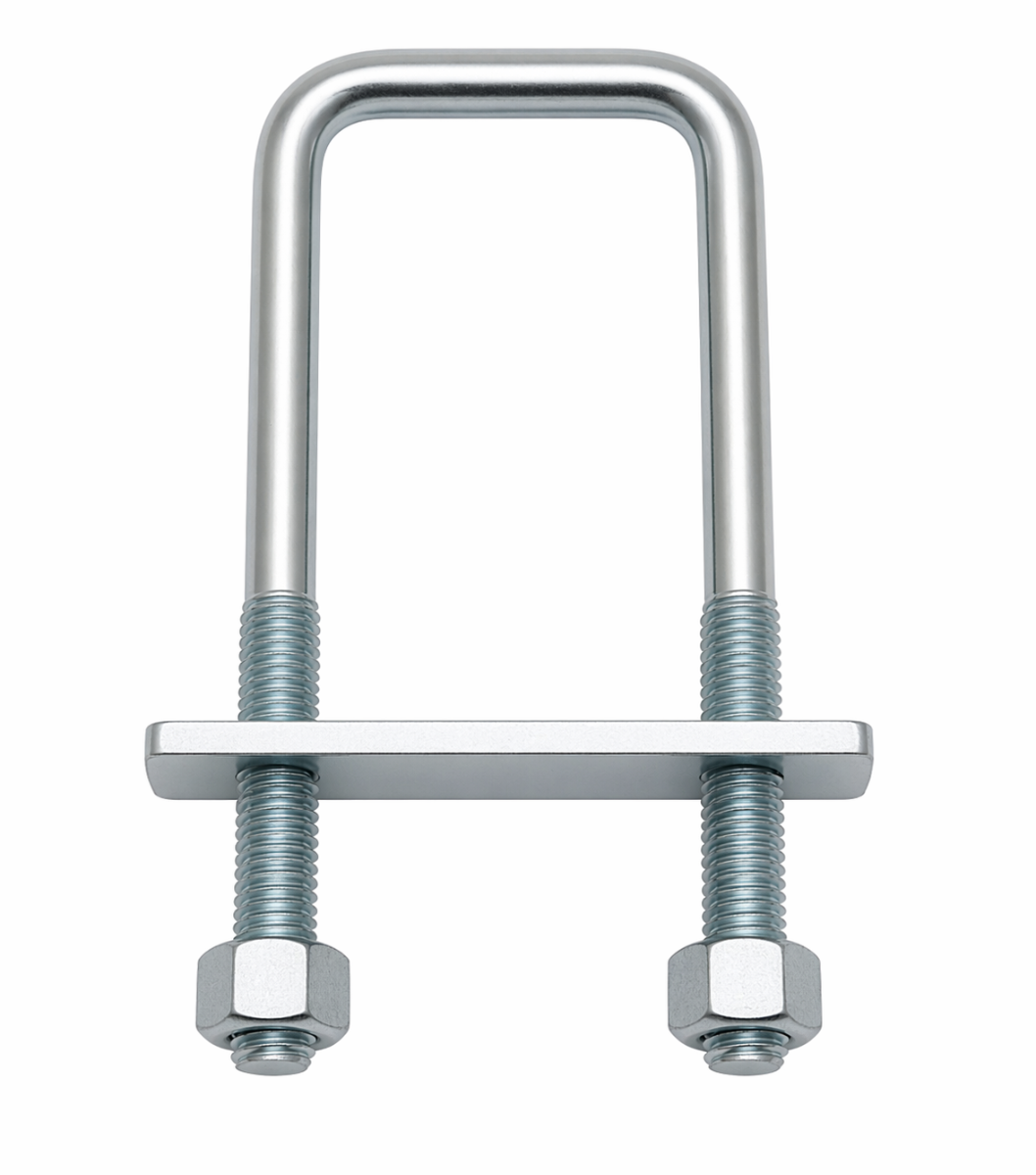

This Square Type U-Bolt is a clamp fastener used to secure components to box section, channel, or posts on construction and garden machinery, trailers, and plant. It provides a strong through-bolt fixing for brackets, guards, crossmembers, and axle mounts. Manufactured from steel to property class 8.8 for reliable clamping under vibration and load. Non-Genuine compatible part. Dimensions are set for a snug fit around approximately 50 mm box section, with adequate thread engagement for standard bracket thicknesses. Supplied with M12 threads to suit common UK and EU equipment. Overall length 136 mm supports deeper sections; minimum inside height 83 mm helps maintain clearance around frames and fixtures. Approximate unit weight is 0.41 kg for robust installation.
Key Features:
- Square bend for flat contact on box or channel sections
- Overall length: 136 mm (5.35 in)
- Internal width (ID): 53 mm (2.09 in)
- Minimum inside height: 83 mm (3.27 in)
- Thread length: 53 mm (2.09 in)
- Thread diameter: 12 mm (M12, 0.47 in)
- Supplied with two M12 hex nuts
- Property class 8.8 high-tensile steel
- Typical strength: 800 MPa tensile, 640 MPa yield
- Approx weight: 0.41 kg (0.90 lb)
- Suits ~50 mm box section clamping applications
- Designed for secure fastening under vibration and load
- Compatible with standard M12 spanners and sockets
- Helps retain brackets, guards, and axle fixtures
- Non-Genuine compatible replacement for generic fittings
Typical Applications:
Used to clamp brackets and fixtures to square or rectangular box section on rollers, mowers, compactors, generators, compressors, site trailers, and utility frames. Common for axle plates, ROPS and guard mounts, crossmembers, cable trays, and stabiliser bars. Provides a secure through-bolt fixing where welding is impractical or service access is required.
Also known as:
Square U-bolt, box section U-bolt, M12 U-bolt, channel clamp U-bolt, square bend U-bolt, axle U-bolt, frame clamp U-bolt.
Product Specifications
| L&S Part No. | 800 6120 |
|---|
