Description
Overview:

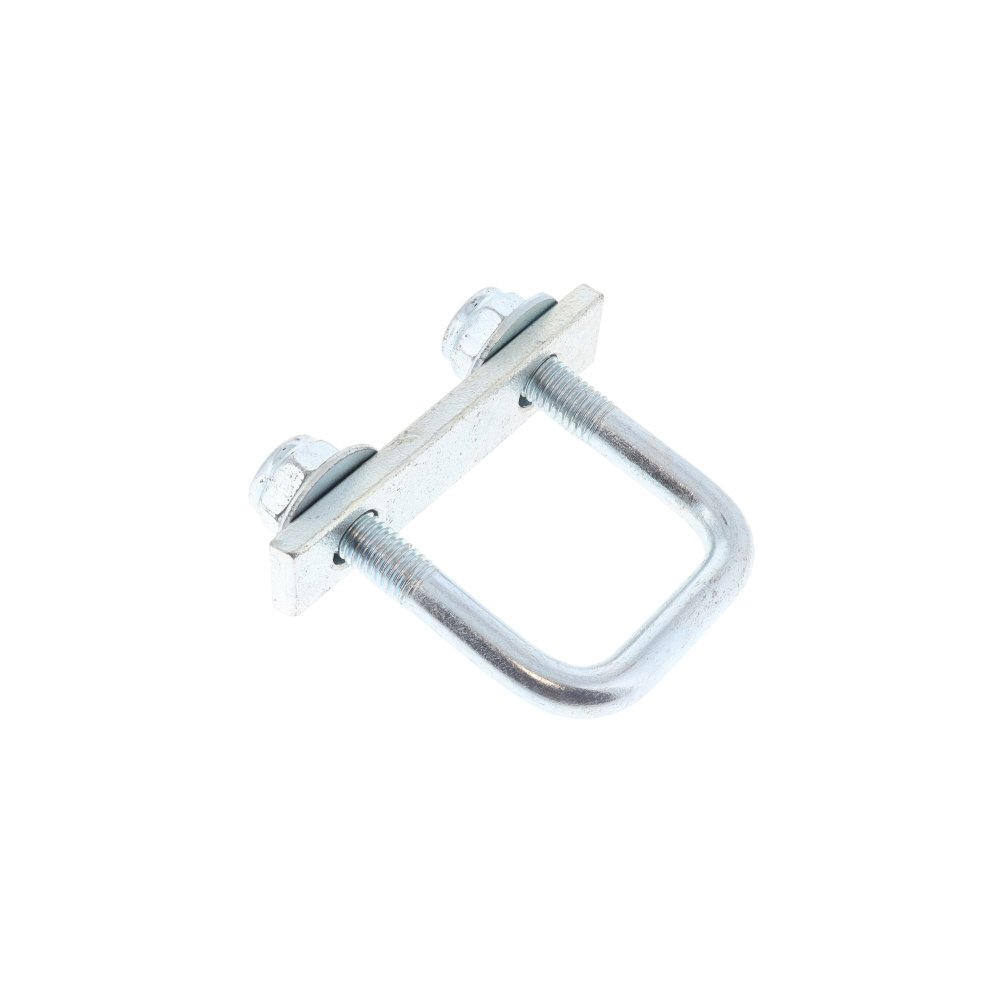

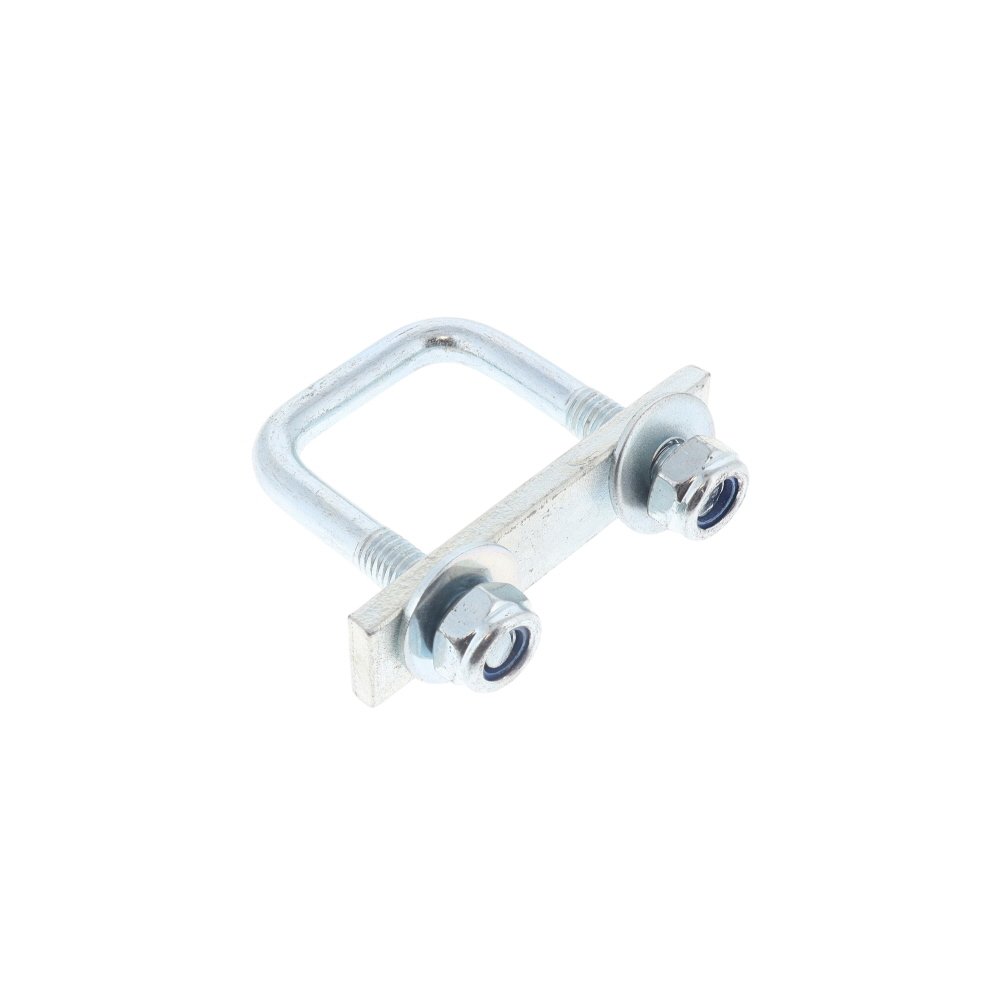

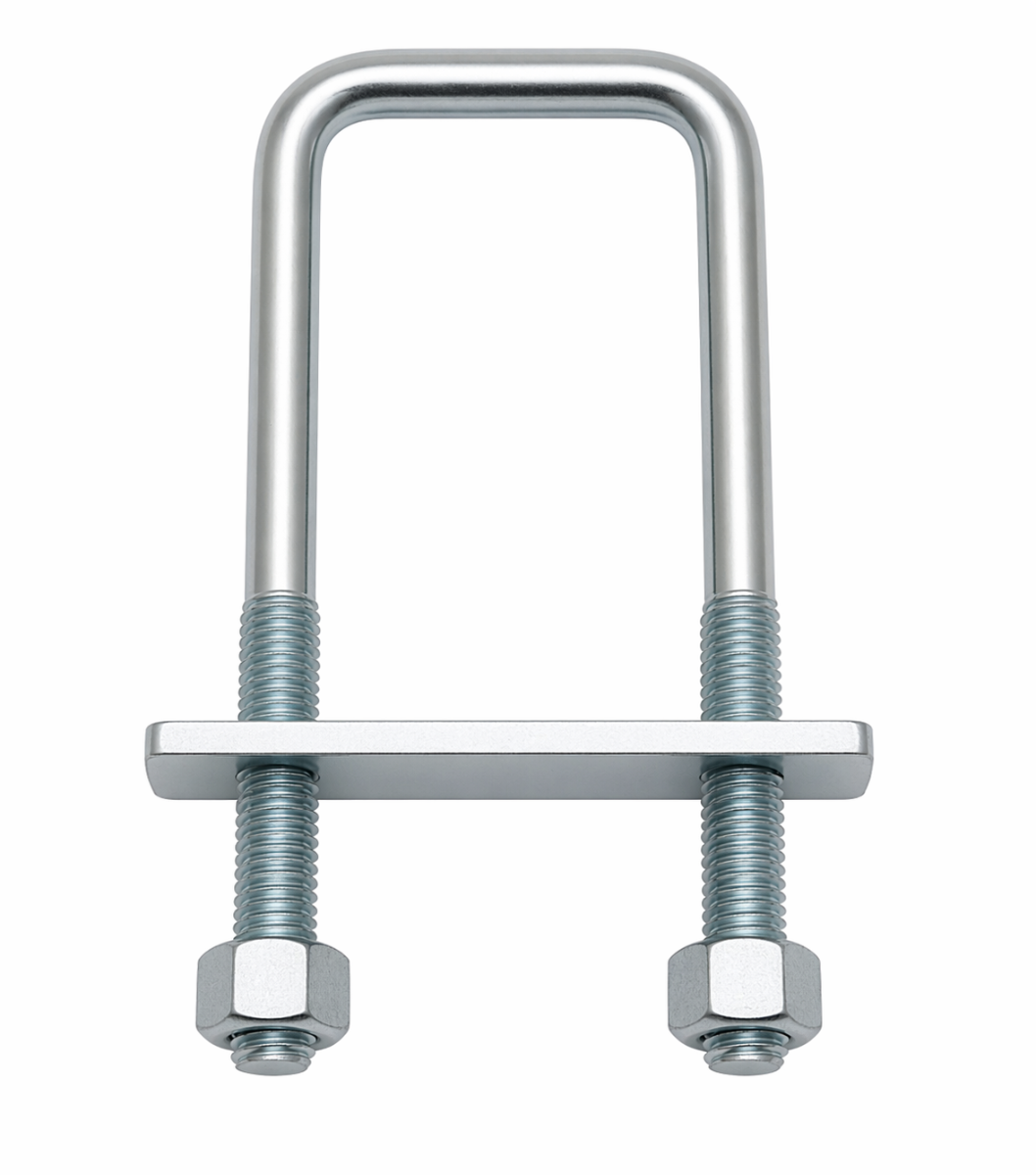

This square-type U-bolt is a high-strength fastener for clamping and securing square or rectangular sections, frames, and fixtures. Manufactured from high tensile steel to Grade 8.8, it provides dependable clamping force for structural, automotive, agricultural, and general fabrication tasks. The square profile seats firmly on flat faces, reducing movement under load compared with round U-bolts on box section. Key dimensions are Length 80 mm, internal width (ID) 50 mm, minimum length 50 mm, with M10 threaded legs providing 30 mm of thread each for nut engagement and adjustment. Typically used with backing plates, spreader bars, and washers to distribute load. Supplied in the U Bolts with Nuts category for immediate installation with standard M10 hardware. Suitable for indoor and outdoor assemblies where a square clamp form is required.
Key Features:
- Square-profile U-bolt for box section, trunking, and channel
- Grade 8.8 high tensile steel for strong, reliable clamping
- Thread size: M10 metric, compatible with common fixings
- Threaded length: 30 mm on each leg for adjustment
- Internal width (ID): 50 mm to suit 50 mm section
- Overall leg length: 80 mm for versatile clamping depth
- Minimum length: 50 mm as specified by manufacturer
- Supplied within U Bolts with Nuts product category
- Even contact on flat faces reduces slip and rotation
- Works with M10 washers, plates, and channel fittings
- Suitable for fabrication, plant, vehicle, and site installations
- Barcode: 5050943061243 for easy identification and reordering
Typical Applications:
For clamping 50 mm box section, trunking, cable tray, machine guards, brackets, and racking to frames or strut. Common in workshop fixtures, site installations, HVAC supports, vehicle bodies, trailers, farm machinery, and light structural assemblies. Use with backing plates and washers to spread load and protect surfaces.
Also known as:
Square U-bolt, square U clamp, M10 U-bolt, box section U-bolt, rectangular U-bolt, pipe and trunking clamp U-bolt, Grade 8.8 U-bolt fastener.
Product Specifications
| L&S Part No. | 800 6124 |
|---|
