Description
Overview:

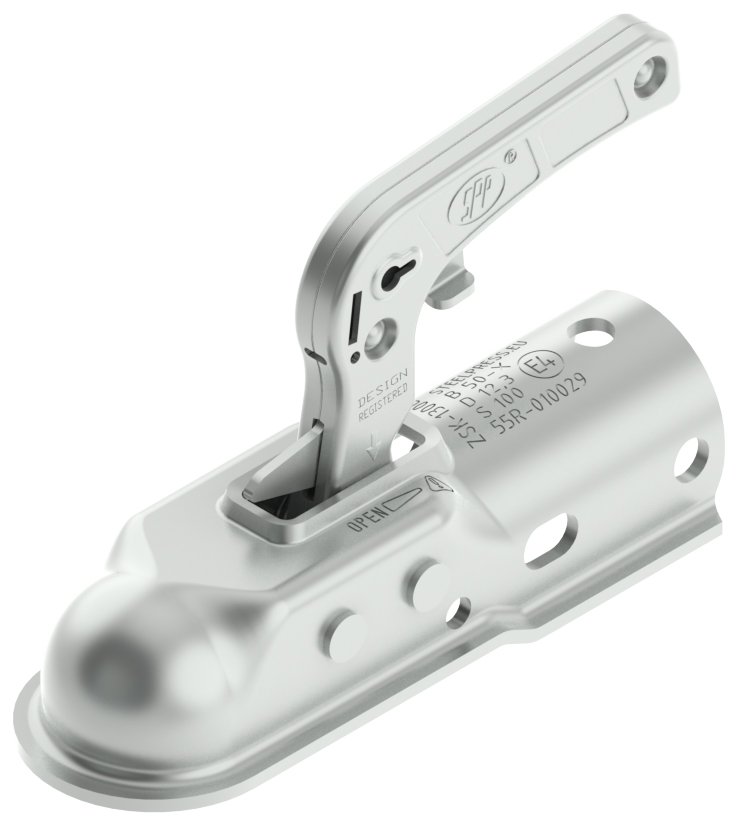

This universal trailer coupling head kit (MPN 763 754) is designed for braked trailers using round tube drawbars. It covers 35, 40, 45 and 50 mm (1.38, 1.57, 1.77 and 1.97 in) drawbar sizes with the supplied adaptor sleeves. The coupling head is manufactured from reinforced pressed steel with a zinc-plated finish for corrosion resistance, and provides mounting holes on both the side and the top to suit different overrun housings. Rated up to 1300 kg (approximately 2,866 lb), it is suitable for light commercial and general duty trailers within this capacity. The head incorporates a wear indicator and a correct attachment indicator to help confirm coupling condition and engagement on the towball. Supplied as a kit with M12 x 80 mm mounting hardware to support installation on compatible overrun assemblies.
Key Features:
- Capacity up to 1300 kg (approx. 2,866 lb) for braked trailers
- Fits 35, 40, 45 and 50 mm (1.38, 1.57, 1.77 and 1.97 in) round tube drawbars using included adaptors
- Reinforced pressed steel construction with zinc-plated finish for corrosion resistance
- Mounting holes provided on both side and top faces for flexible installation
- Supplied with 2 x M12 x 80 mm (3.15 in) bolts, lock nuts and washers; minimum bolt grade 8.8
- Wear indicator and correct attachment indicator integrated in the coupling head
- R55 approved (D 12.3, S 100) for type approval compliance
- Supplied without lock; compatible with optional lock MP478B
- Can be fitted with soft dock MP1940 to protect the coupling head
- Universal replacement for models including Knott 575001
Typical Applications:
Used on braked trailers with round tube drawbars within the 1300 kg class, including general duty, small plant and utility trailers. Suitable as a service replacement where a universal pressed steel overrun coupling head is required and where side or top mounting is needed. Fits a range of housings via the included adaptor sleeves, and can replace models including Knott 575001. Commonly used by trailer manufacturers, repairers and fleet maintenance teams to refurbish worn hitch heads or standardise on a universal coupling head with R55 approval.
Also known as:
Overrun Coupling Head
Trailer Hitch Head
Tow Coupling Hitch
Universal 35-50 mm Round Drawbar Hitch
Maypole part number MP1927
Knott 575001
Product Specifications
| L&S Part No. | 763 754 |
|---|---|
| Part Type | Genuine Part |
