Description
Overview:

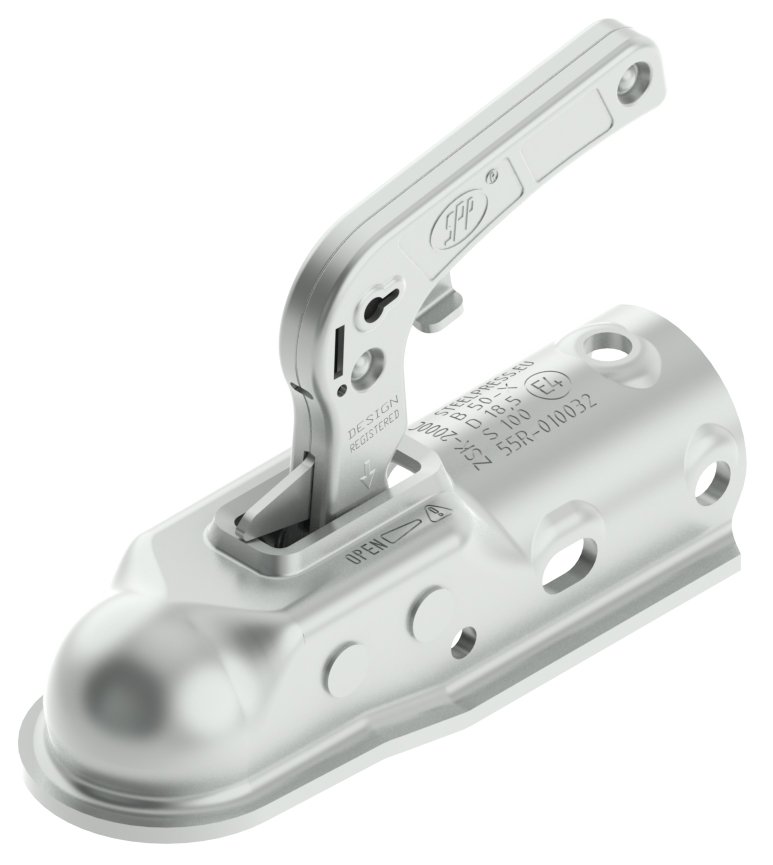

This universal 50 mm trailer coupling head kit (MPN 763 839) is a heavy-duty replacement for overrun/braked drawbar applications up to 2000 kg. The coupling head is manufactured from pressed steel with a zinc-plated finish for corrosion resistance and service life in fleet and site use. It mounts to round tube drawbars and is designed for 50 mm (approx. 1.97 in) towballs. The kit provides multi-fit options with mounting holes on both the top and side faces, and includes hardware to suit common round tube drawbar sizes. Two high-tensile M12 x 80 mm bolts (approx. 0.47 in x 3.15 in), with lock nuts and washers, are supplied for installation. The assembly is R55 approved (D18.5, S100). Supplied without a lock; compatible with Maypole soft dock and lock accessories where required.
Key Features:
- 50 mm coupling head for standard towballs (approx. 1.97 in)
- Rated for braked trailer applications up to 2000 kg
- Heavy-duty pressed steel body with zinc-plated finish
- Suits round tube drawbars 30, 40, 45 and 50 mm (approx. 1.18, 1.57, 1.77 and 1.97 in)
- Supplied with 35/40/45 mm drawbar adaptors (approx. 1.38/1.57/1.77 in)
- Dual mounting options with holes in top and side faces
- Includes 2 x M12 x 80 mm mounting bolts (min. grade 10.9), lock nuts and washers
- R55 approved (D18.5, S100) for regulatory compliance
- Supplied without lock; compatible with optional lock MP478B
- Can be fitted with soft dock MP1940 to protect the hitch area
Typical Applications:
Replacement coupling head for braked trailer overrun systems on plant, general-purpose, builder's and car transporter trailers. Universal kit that can replace or service heads on common drawbar tubes where multi-position mounting is needed. Typical cross-refs include Knott K20A/K20B (575002), ALBE EM150A/EM150B and AL-KO AK160A/AK160B models, subject to matching drawbar size and mounting pattern. Suitable where a 50 mm towball and up to 2000 kg application are required.
Also known as:
Overrun Coupling Head; 50 mm Hitch Head; Pressed Steel Coupling Head; Coupling Head Assembly; Towball Coupling; Maypole part number MP1993; Knott 575002; ALBE EM150A/EM150B; AL-KO AK160A/AK160B
Product Specifications
| L&S Part No. | 763 839 |
|---|---|
| Part Type | Genuine Part |
