Description
Overview:

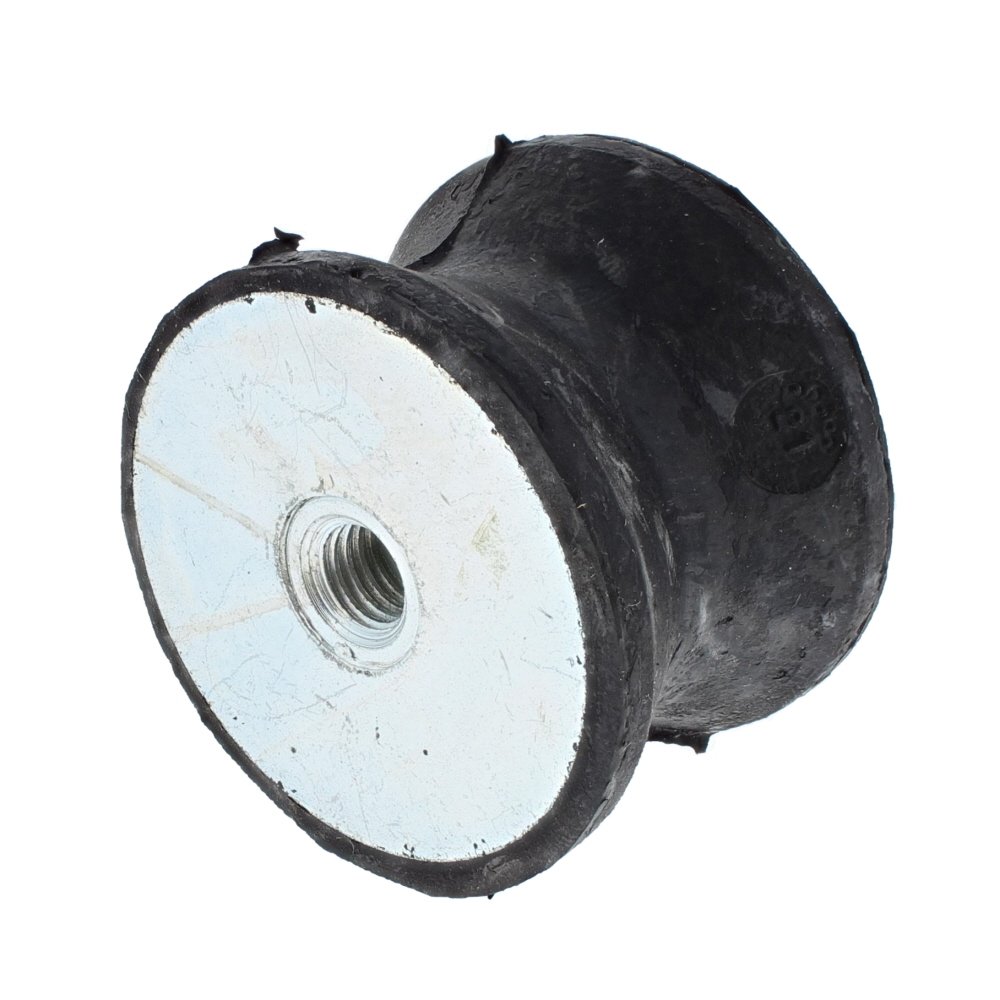

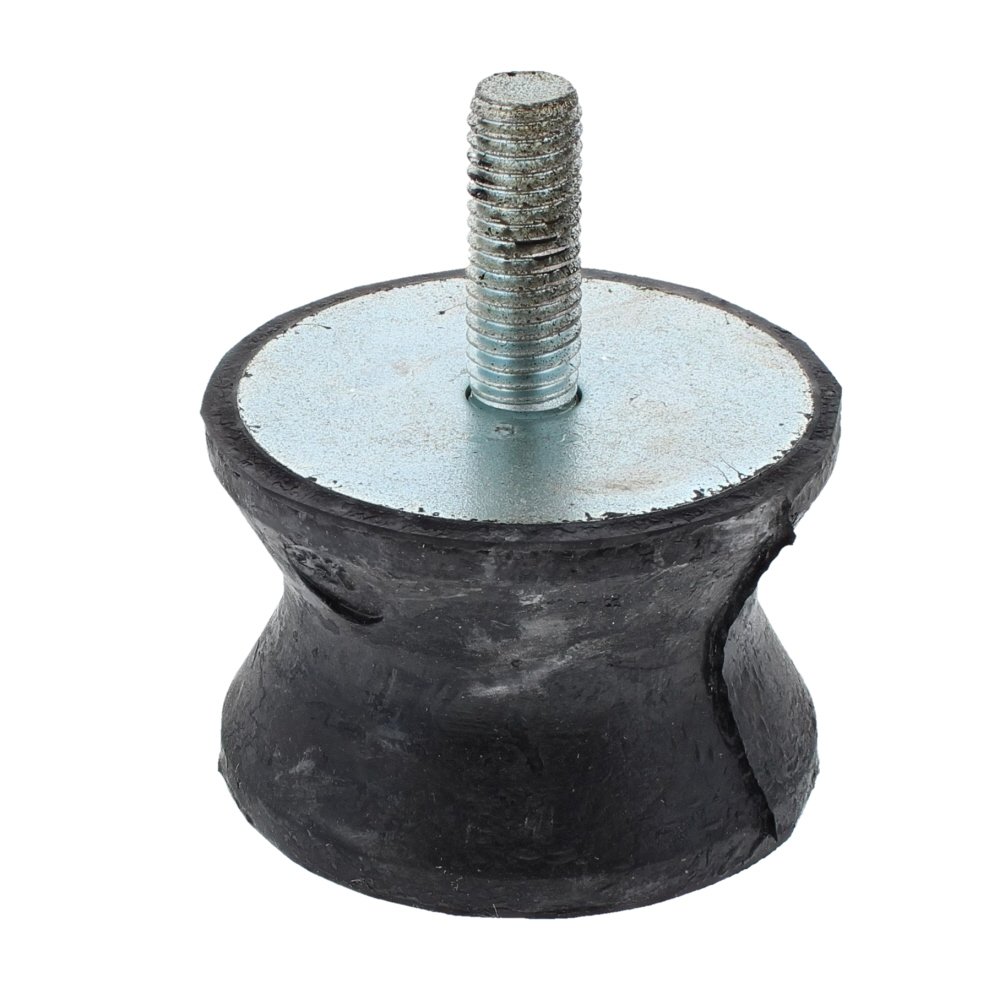

This anti vibration mount is a genuine Altrad/Belle part (OEM No. 21.0.292) for vibrating plate compactors such as the Belle PCLX 400 and PCLX 320. It is a robust bonded rubber and steel assembly designed to isolate vibration between the base plate and the upper frame or engine cradle. By reducing transmitted vibration, it helps protect the machine, lowers hand-arm vibration exposure, and supports smoother operation. The mount measures 54 mm wide and 36 mm deep, with an M10 thread and 30 mm thread length. Built for tough site conditions, it offers reliable performance and a precise fit on compatible Belle compactors, helping to maintain compaction quality while extending service life of surrounding components.
Key Features:
- Genuine Altrad/Belle part for assured fit and consistent performance
- Bonded rubber-to-steel construction for effective vibration isolation
- Helps reduce hand-arm vibration exposure for the operator
- Protects engines, frames, fasteners, and bearings from shock loads
- Dimensions: 54 mm width, 36 mm depth for the body
- M10 thread with 30 mm thread length for secure mounting
- Supports smoother running and improved compaction quality
- Durable design suitable for frequent site and rental use
- Straightforward replacement with standard tools to minimise downtime
Typical Applications:
Used on plate compactors in groundworks, landscaping, utilities, block paving, and asphalt patching. Ideal for busy site use and plant hire fleets where reliable vibration isolation safeguards engines and chassis, keeps fasteners tight, and improves operator comfort during prolonged compaction tasks on sub-bases and reinstatement works.
Also known as:
Shock absorber, vibration damper, vibration isolator, anti-vibration bobbin, rubber mounting, isolation mount, rubber buffer, engine mount (plate compactor), resilient mount.
Fits Models:
PCLX 400, PCLX 320, PCLX 320S, PCLX 32, PCL, PCLX 12/40E, PCLX 13/33, PCLX 16/45E, 32S, PC Series, PCEL320X, PCEL400E, PCX 12/36, PCX 13/40, PCX 13/40E+, PCX 16/45, 16/50, PCX 20/45, 20/50, PCX350, PCX400, PCX450, PCX500, PCX60A, BWX 15, MPC300, Minipac 300, 250, GPX Range, PWX Range.
Alternate Part Numbers:
21-0-292, 21 0 292, 210292
Product Specifications
| L&S Part No. | 21.0.292 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Altrad/Belle |
| OEM No. | 21.0.292 |
| Unit of Sale | 1 |
| Applications | 16/50, 1650, 20/50, 2050, 250, 32S, 32S & 40, 32S&40, BWX 15, BWX15, GPX Range, GPXRange, MPC300, Minipac 300, Minipac300, PC Series, PCEL320X, PCEL400E, PCL, PCLX 12/40E, PCLX 13/33, PCLX 16/45E, PCLX 32, PCLX 320, PCLX 320S, PCLX 400, PCLX12/40E, PCLX13/33, PCLX16/45E, PCLX32, PCLX320, PCLX320S, PCLX400, PCSeries, PCX 12/36, PCX 13/40, PCX 13/40E+, PCX 16/45, PCX 20/45, PCX12/36, PCX1236, PCX13/40, PCX13/40E+, PCX1340, PCX16/45, PCX1645, PCX20/45, PCX2045, PCX350, PCX400, PCX450, PCX500, PCX60A, PWX Range, PWXRange |
| Machine Type | Compactors |
| Fits Brands | Belle |
| Fits Models | PCX12/36, PCX13/40 | PCX350 PCX400 PCX450 PCX500 | Minipac 300 | MPC300 | PC Series | PCEL320X | PCEL400E | PCL | PCLX 12/40E | PCLX 16/45E | PCX 16/45, 16/50 | PCX 20/45, 20/50 | PCX60A | GPX Range | PWX Range | BWX 15, 250 | PCX 13/40E+ | PCLX 13/33 | PCLX 32, 32S & 40 |
