Description
Overview:

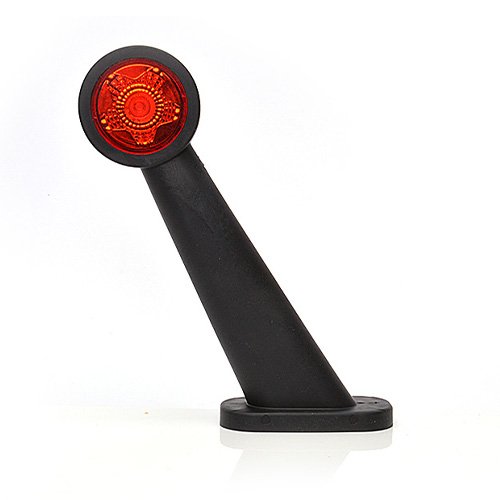

Right-hand LED outline marker lamp with a 45° head for corner or wing mounting on trailers and commercial vehicles. The unit uses a modern 'star' lens design in a durable rubber housing and is sealed to IP66 for use in harsh environments. Suited to 12V and 24V systems (10-30V DC), it comes pre-wired with a 21 cm cable tail for straightforward connection. E-marked and EMC compliant, it provides reliable vehicle outline indication on the right-hand side. Compatible with a wide range of plant trailers, recovery bodies and general haulage applications where a compact, robust marker is required.
Specification:
- Operating voltage: 10-30V DC (12/24V systems)
- Right-hand, 45° marker lamp
- LED light source with modern 'star' lens design
- Rubber housing
- IP66 ingress protection
- E-approved; EMC compliant
- 21 cm cable tail (pre-wired)
- Bolt-on mounting via fixing holes
- Single lamp supply
- Maypole part number: MP8718BR
Typical Applications:
Used on trailers, plant transporters, tippers, vans and recovery bodies to mark the outer edge of the vehicle. The right-hand 45° unit is typically paired with a matching left-hand lamp to complete front/rear outline marking on both sides.
Product Specifications
| L&S Part No. | 763 522 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
