Description
Overview:

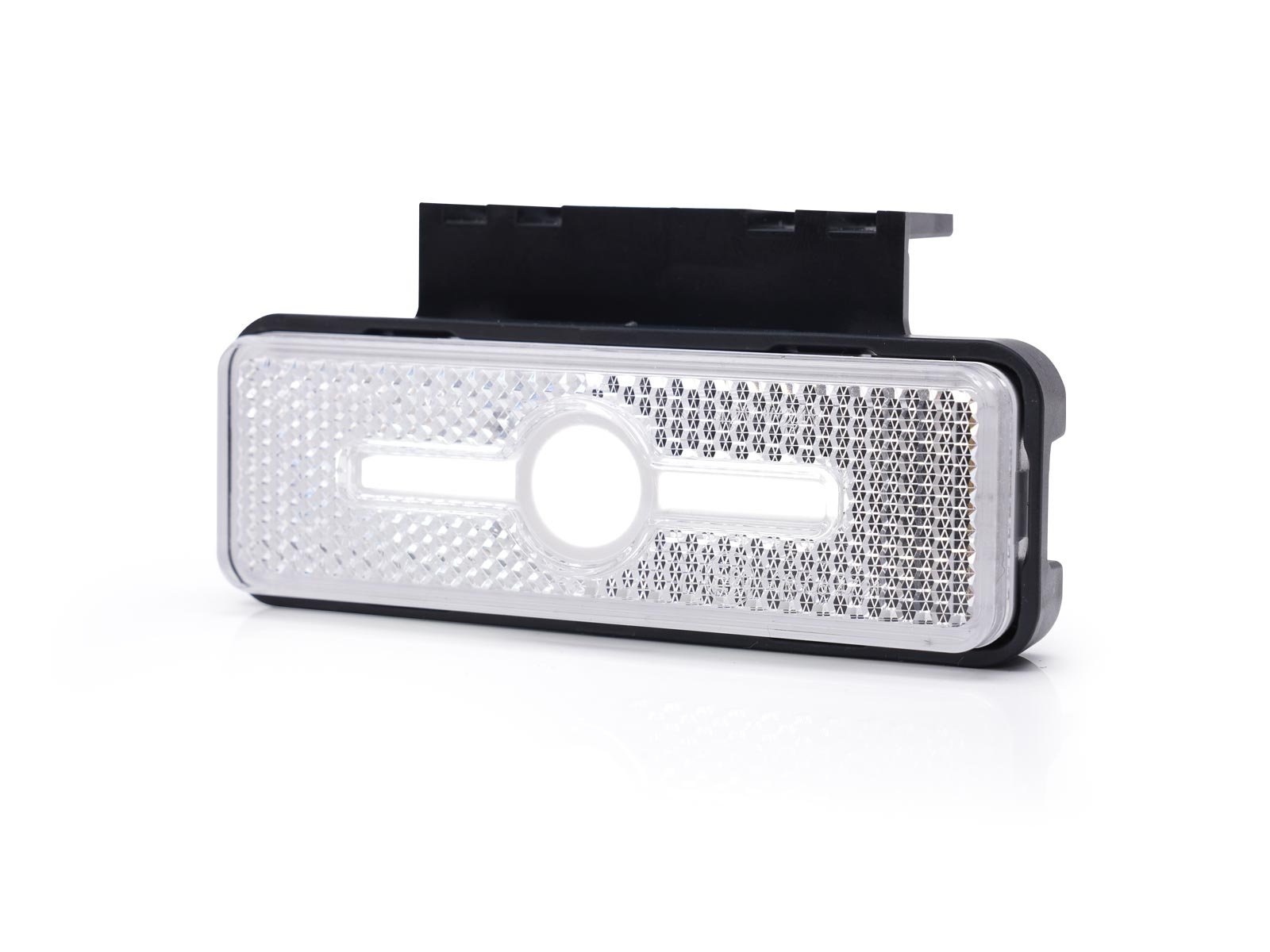

The LED Marker Lamp, Clear Lens, 10-30V WAS GLO, Bracket Mount (MPN 763 331) is a slimline outline/position marker for road-going trailers and light commercial vehicles. It uses a clear lens with a uniform GLO effect when lit, providing a clean marker signal on 12V and 24V systems. The unit is supplied with a mounting bracket for straightforward installation and can be set in either a horizontal or vertical orientation to suit the bodywork. A pre-wired 24 cm (approximately 9.4 in) cable tail is provided for connection into the vehicle loom. The lamp is sealed to IP6K9K, making it both dust-tight and resistant to high-pressure washdown, and it carries E approval for road use. An integrated reflector increases conspicuity when the lamp is not powered. This is a durable, low-maintenance LED solution suited to trailers, plant transporters, service vans and similar applications.
Key Features:
- 10-30V DC multivolt operation for 12V and 24V systems
- Clear lens with uniform WAS GLO marker illumination
- Slimline profile; mounts horizontally or vertically
- Supplied with mounting bracket and fixing holes
- Pre-wired 24 cm (9.4 in) cable tail for easy connection
- IP6K9K rated: dust-tight and high-pressure wash resistant
- E-approved for on-road use
- Integrated reflector for enhanced visibility when unlit
- Sealed LED unit for long service life and low maintenance
Typical Applications:
Used as an outline/position marker on trailers, caravans, recovery bodies, plant and equipment transporters, and light commercial vehicles. Suitable for fitting to side or front positions where a clear-lens LED marker is required. The slim body and supplied bracket make it practical for body kits, chassis rails, and bumper edges where space is limited, with flexibility to install in either horizontal or vertical orientation.
Also known as:
- Maypole part number MP1612B
- WAS GLO clear LED marker lamp
- Slimline LED outline/position marker
- 12/24V clear marker light
Product Specifications
| L&S Part No. | 763 331 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
