Description
Overview:

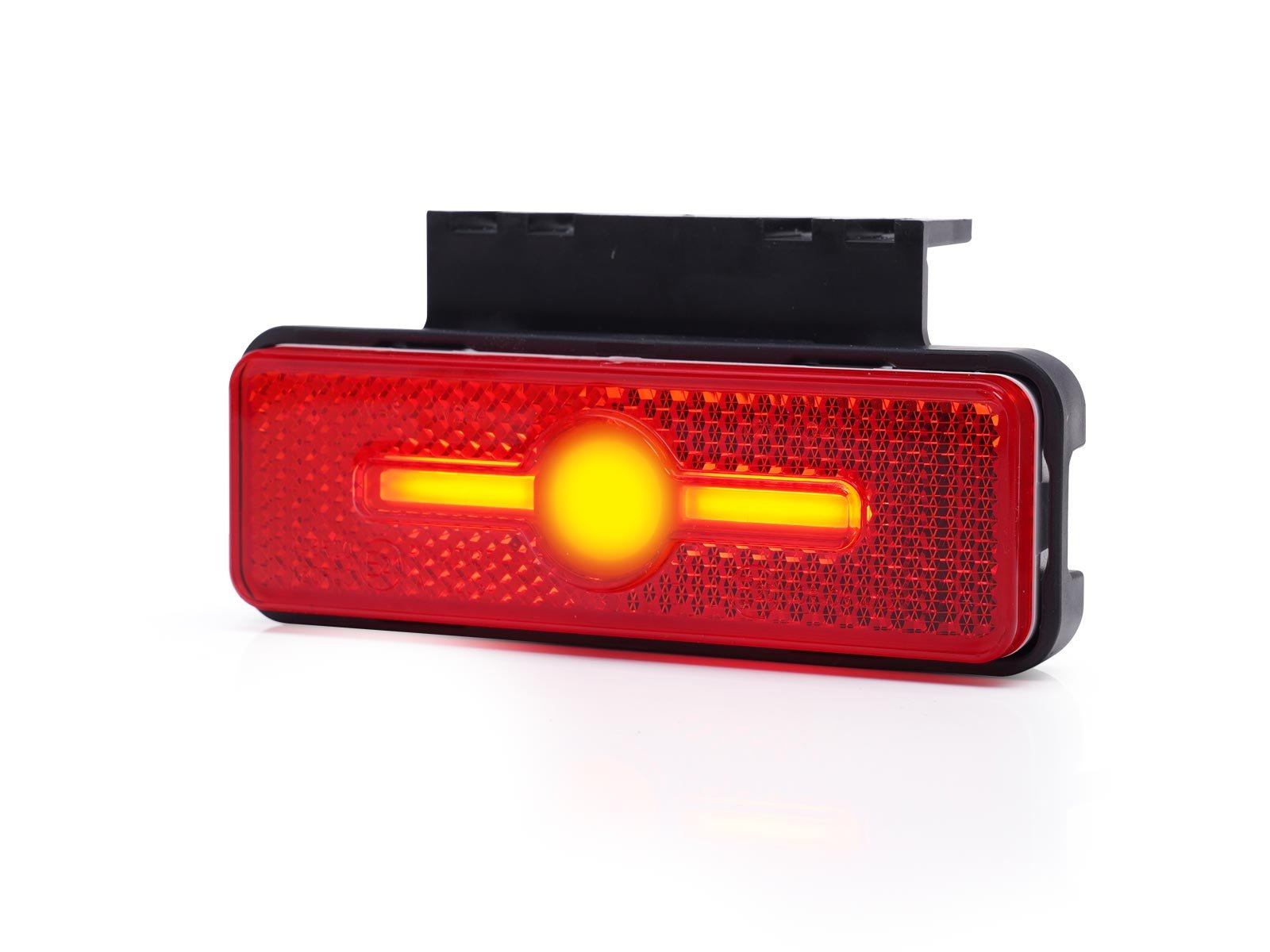

The LED Rear Marker Lamp, Red, 10-30V GLO Effect, Bracket Mount, 24cm Lead (MPN 763 420) is a compact rear outline marker for trailers and commercial vehicles. It delivers a red marker light with an even GLO effect and includes an integrated reflector to reduce the need for a separate rear reflector. The unit is supplied with a mounting bracket and can be installed in either horizontal or vertical orientation to suit the vehicle layout. Multi‐voltage operation (10-30V DC) makes it suitable for both 12V and 24V systems. A 24 cm cable tail (240 mm, approx. 9.45 in) provides a straightforward electrical connection. With an IP6K9K ingress rating, the lamp is dust‐tight and resistant to high‐pressure washdown, and it is E approved for road use where applicable. Designed for dependable marker lighting on trailers, plant transporters, vans and other towed equipment.
Key Features:
- 10-30V DC multi‐voltage compatibility (works on 12V and 24V systems)
- Red LED rear marker with integrated reflector
- GLO effect on lighting function for an even illuminated appearance
- Supplied with mounting bracket for surface mounting
- Horizontal or vertical orientation to suit installation
- 24 cm (240 mm / approx. 9.45 in) cable tail for power connection
- IP6K9K ingress protection: dust‐tight and high‐pressure wash resistant
- E approved for on‐road use where regulations apply
Typical Applications:
Rear outline marker at the outer corners of trailers, plant and equipment transporters, caravans, horseboxes, rigid and articulated HGVs, recovery vehicles and general towing setups. Useful where a compact rear marker with an integrated reflector and a flexible mounting orientation is required.
Also known as:
- Maypole part number MP1613B
- Red Rear LED GLO Marker Lamp
- Rear Outline Marker Light, Red, 10-30V
- WAS GLO Rear Marker Lamp, Red
Product Specifications
| L&S Part No. | 763 420 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
