Description
Overview:

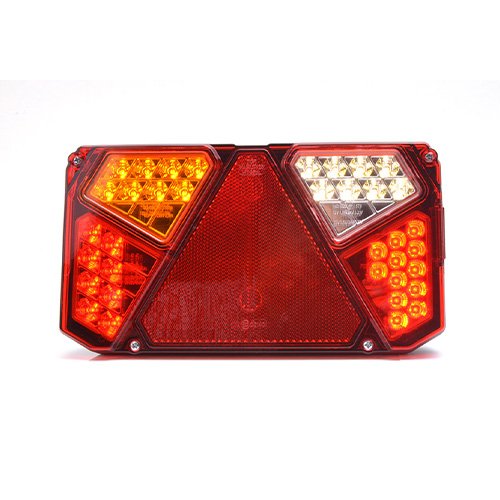

Slimline left-hand LED rear combination lamp for trailers and transport applications. Provides stop, tail, indicator, reverse, fog and reflector functions in a compact rectangular housing. Multivolt 10-30V operation suits 12V and 24V systems. Sealed to IP68 for dust and water ingress protection, with a 2.0 m cable tail for straightforward wiring. Mounts on M6 studs at 150 mm centres for quick replacement or new installs.
Specification:
- Functions: Stop, Tail, Indicator, Reverse, Fog, Integrated Reflector
- Voltage Range: 10-30V DC (suitable for 12V/24V systems)
- Connection: 2.0 m (200 cm) cable tail
- Mounting: M6 stud fixing, 150 mm centres
- Ingress Protection: IP68
- Approvals: E-marked and EMC compliant
- Orientation: Left-hand side
- Design: Modern slimline rectangular housing
Typical Applications:
Rear left light unit for road trailers, plant and machinery transporters, recovery bodies and other light commercial builds requiring a compact multi-function lamp compatible with 12V and 24V electrical systems.
Product Specifications
| L&S Part No. | 764 021 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Provides stop, tail, indicator, reverse, fog functions - 10-30V DC, fits 12V/24V systems - IP68 rated for dust and water protection - 2.0 m cable tail for easy wiring - M6 stud mounting, 150 mm centres |
