Description
Overview:

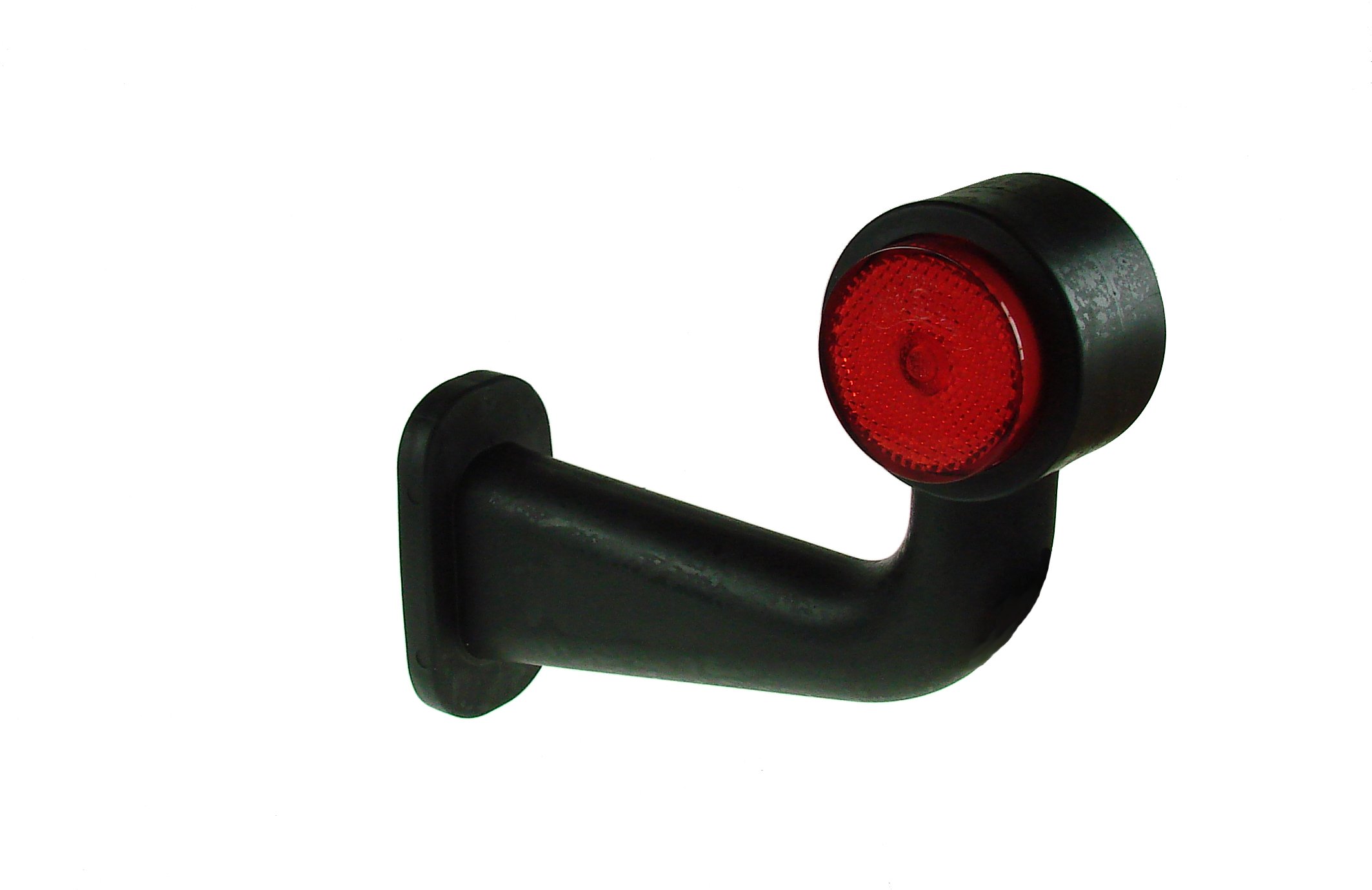

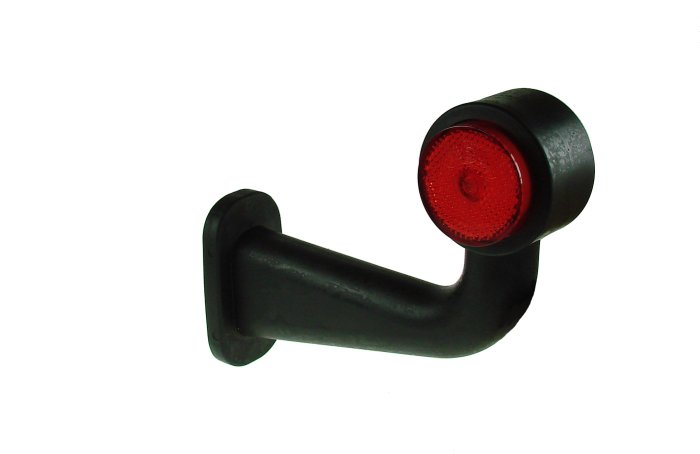

This right-hand red/white 90° WAS LED outline marker lamp (MPN 763 602) is designed to show the extremities of longer vehicles and trailers. It uses a durable EPDM rubber housing with a 90° mounting arm to position the light perpendicular to the body, improving visibility from the side and end of the vehicle. The unit is multi-voltage for 10-30V DC systems and supplied with an 18 cm (180 mm / 7.1 in) flying lead for straightforward wiring. With an IP66 rating, it is dust-tight and protected against powerful water jets, making it suitable for year-round road use. The lamp carries E approval and EMC compliance and incorporates a built-in reflector. Intended for the offside (right-hand) of the vehicle, the front-facing segment shows white and the rear-facing segment shows red to mark the outline clearly.
Key Features:
- Multi-voltage LED marker lamp for 10-30V DC systems
- Right-hand (offside) red/white configuration for front/rear outline marking
- 90° mounting arm for perpendicular fitment to bodywork or brackets
- EPDM rubber housing for impact and weather resistance
- IP66 rating: dust-tight and resistant to high-pressure water jets
- E-mark approved and EMC compliant for road use
- Integrated reflector for added passive visibility
- Supplied with 18 cm (180 mm / 7.1 in) cable tail for connection
- Suitable for longer vehicles where extended side visibility is required
- Preformed mounting holes for secure installation
Typical Applications:
Used on the offside of trailers, plant transporters, recovery bodies, rigids, tractor units, caravans and vans to mark the outer corners. Commonly fitted to body outriggers, headboards, rear frames or mudguard brackets where a 90° arm positions the lamp for clear side and end visibility on longer combinations and wide bodies.
Also known as:
Right-Hand Red/White Outline Marker Light
90 Degree LED Position Lamp (Right Side)
WAS 90° Side Marker Lamp, Red/White
Maypole part number MP8704BR
Product Specifications
| L&S Part No. | 763 602 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
