Description
Overview:

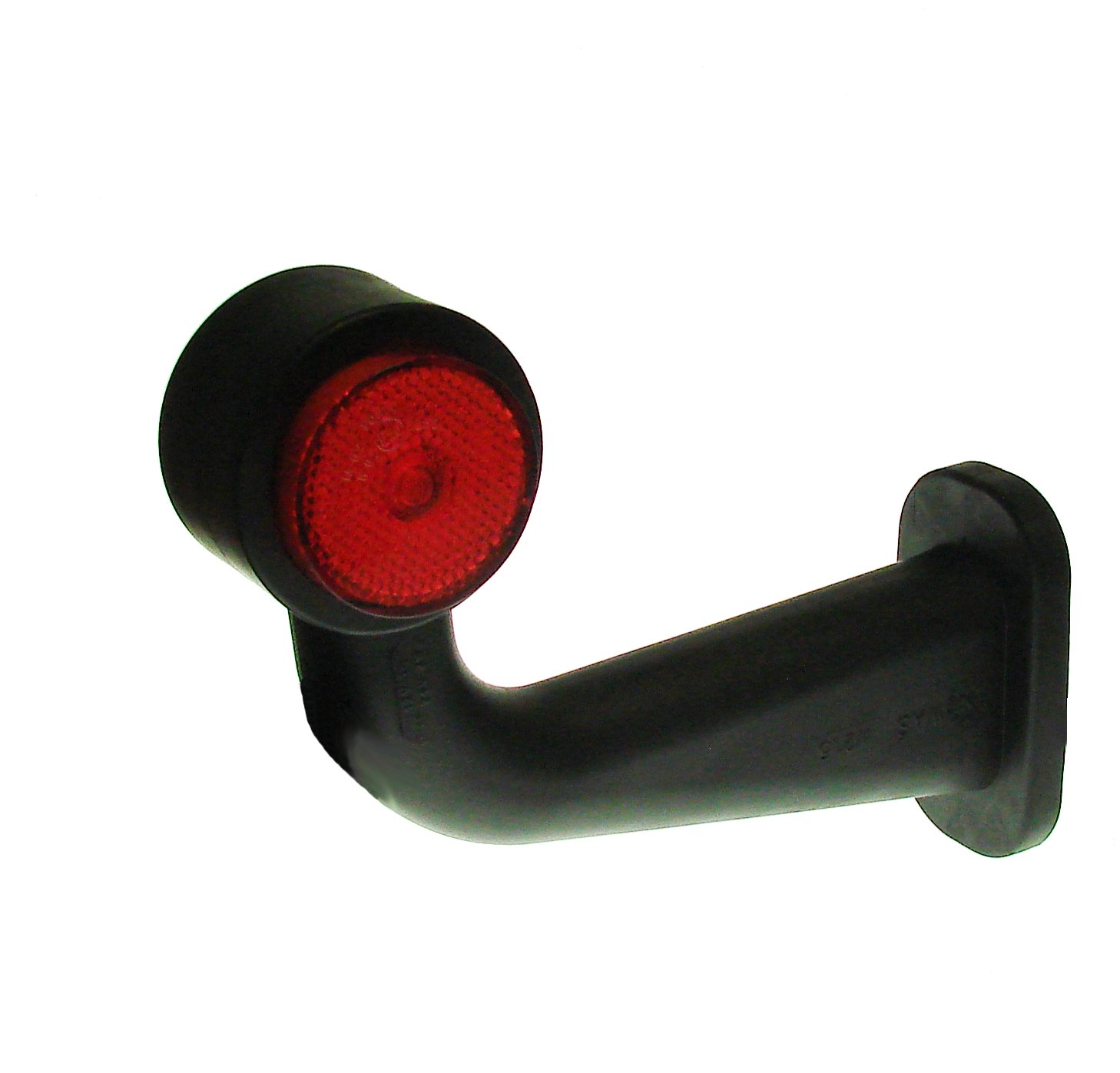

This LED Outline Marker Lamp, Left-Hand, Red/White, 10-30V, 90° (MPN 763 601) is a compact position lamp designed to mark the front and rear extremities on the left side of trailers and other road-going equipment. It uses a durable EPDM rubber housing to withstand vibration, weather and washdown, and carries a combined white lens to the front and red lens to the rear for correct legal marking. The lamp operates on multi-volt 10-30V DC systems, making it suitable for both 12V and 24V fleets. An integral reflector is included to improve passive visibility when the vehicle is parked. The 90° body format allows the lamp to project at right angles to the mounting surface for clear side definition, particularly useful on longer vehicles. Supplied pre-wired with an 18 cm (7.1 in) cable tail for straightforward connection and sealed to IP66 for dust and water ingress protection.
Key Features:
- 10-30V DC multi-volt operation for 12V and 24V systems
- Left-hand orientation: white to front, red to rear for correct side marking
- 90° body for perpendicular mounting at vehicle extremities
- EPDM rubber housing for impact and vibration resistance
- IP66 rating: dust-tight and protected against powerful water jets
- EMC compliant and E-mark approved for road use
- Integral reflector for enhanced passive conspicuity
- Pre-wired with 18 cm (7.1 in) cable tail
- LED light source for long service life and low current draw
- Suitable for marking the extremities of longer vehicles
Typical Applications:
Used on the left-hand side of trailers, caravans, rigid and articulated HGVs, plant and machinery transporters, recovery bodies and general towing set-ups. Fitted at the outer corners or side extremities to indicate vehicle width, displaying a white position light forward and a red position light rearward. Suits new installations or replacements on vehicles requiring a 90° outline marker layout.
Also known as:
- Maypole part number MP8704BL
- Left-hand red/white LED outline marker
- 90° side position marker lamp
- WAS LED marker light
- Red/white position lamp
Product Specifications
| L&S Part No. | 763 601 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
