Description
Overview:

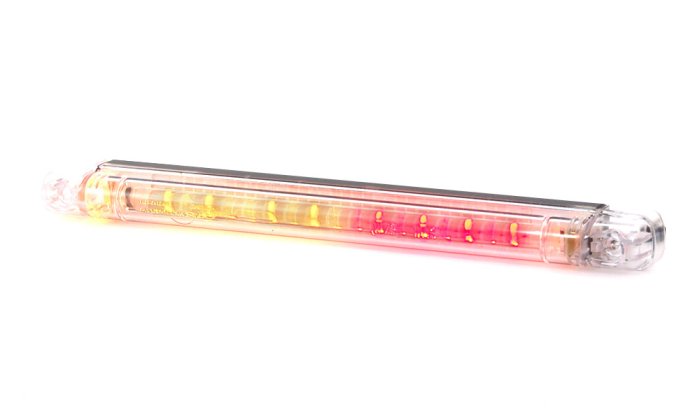

This LED rear trailer lamp (MPN 763 975) is a slimline rectangular rear combination light providing stop, tail and indicator functions for trailers and commercial towing set‐ups. It runs on 10-30V DC, making it suitable for both 12V and 24V electrical systems across mixed fleets. The unit is fully sealed with IP66/IP68 ingress protection for reliable service in wet and dirty environments. A 200 mm (20 cm) flying lead, approximately 8 inches, is provided for straightforward wiring into the vehicle loom. The lamp can be surface mounted in either a vertical or horizontal orientation to suit bodywork layouts and space constraints. Its low‐profile design is well suited to enclosed car transporter trailers and plant transport where clearance is tight. E‐mark approval and EMC compliance support use on public roads and help minimise electrical interference.
Key Features:
- 10-30V DC multivoltage operation for 12V and 24V systems
- Three functions: stop, tail and indicator in one compact unit
- Slimline rectangular profile for tight or low‐clearance installs
- Surface mount with fixing holes for straightforward installation
- Vertical or horizontal mounting orientation
- 200 mm (20 cm) flying lead, approx. 8 in, for connection
- IP66/IP68 ingress protection for dust and water resistance
- E‐mark approved and EMC compliant for road use
- Solid‐state LED light source for consistent output and low maintenance
Typical Applications:
Rear lighting on trailers, enclosed car transporters, plant and machinery transporters, recovery bodies, flatbeds, commercial vans with tow equipment, and general utility or agricultural trailers. Suitable where a single low‐profile lamp is required to provide stop, tail and indicator functions, and where vertical or horizontal mounting helps with layout or clearance.
Also known as:
LED rear combination lamp, slimline rectangular trailer light, 3‐function LED stop/tail/indicator lamp, Maypole part number MP8843B, WAS slimline LED combination lamp
Product Specifications
| L&S Part No. | 763 975 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
