Description
Overview:

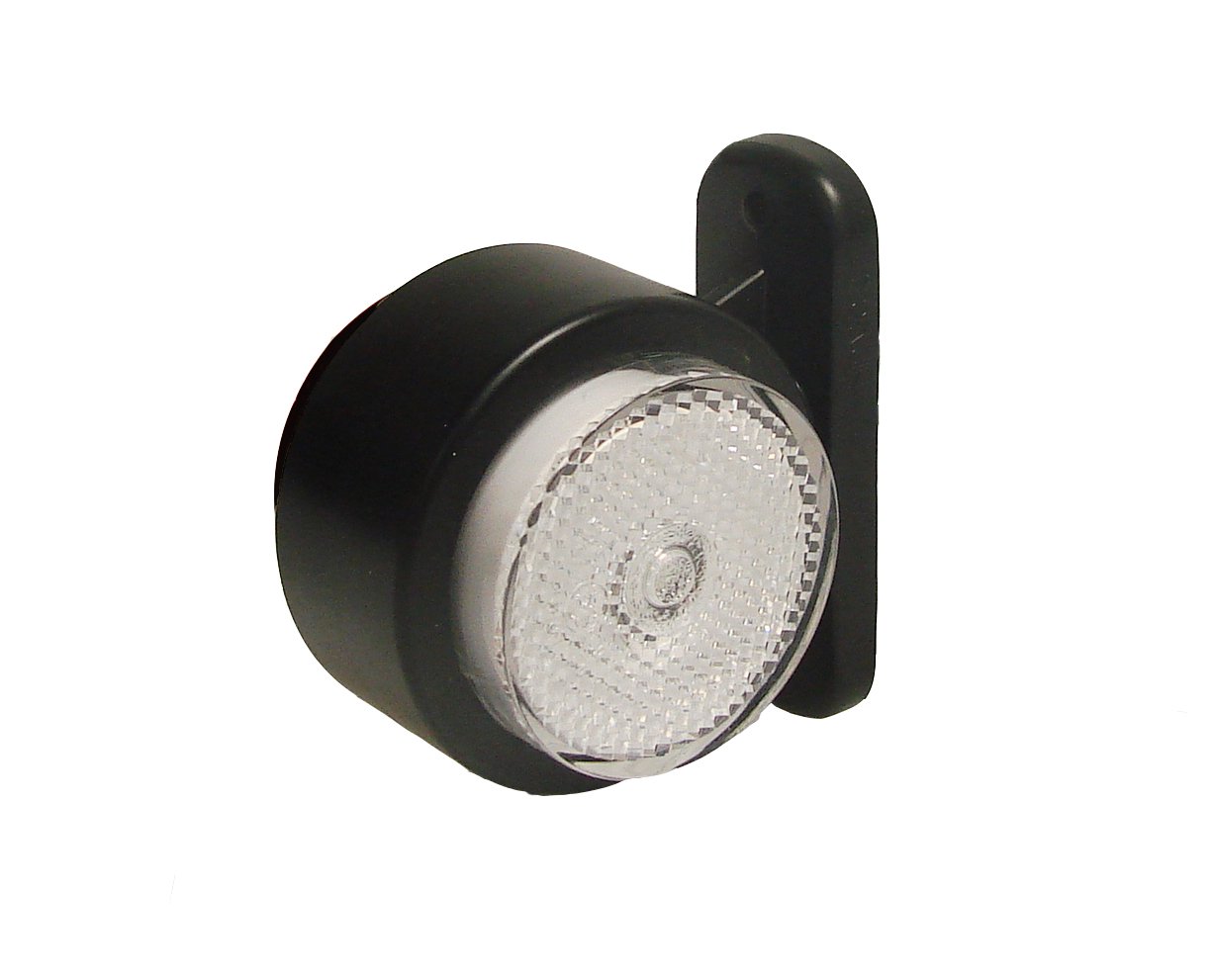

This LED outline marker lamp (MPN 763 475) provides a white front position light with a clear lens and integrated reflector for use on trailers and towed equipment. It is built with a durable EPDM rubber housing and a black rear lens for robust service in demanding environments, including marine and plant transport. The multi-voltage electronics operate from 10-30V DC, making it suitable for both 12V and 24V systems commonly found on commercial trailers and light plant. The unit is sealed to IP68 to resist water and dust ingress and is EMC and E approved for road use. A pre-wired 35 cm (approx. 13.8 in) cable tail allows straightforward hard-wired installation. Supplied in bulk without retail packaging, this lamp is intended for trade fitment where reliability, compliance and a compact footprint are required.
Key Features:
- White front position/outline marker with clear lens and built-in reflector
- 10-30V DC multi-voltage for 12V and 24V systems
- IP68 rated for full dust protection and long-term water resistance
- EPDM rubber housing with black rear lens for durability
- Pre-wired 35 cm (approx. 13.8 in) cable tail
- LED light source
- EMC compliant and E approved
- Surface-mount design with mounting holes for secure fixing
- Supplied bulk, no retail packaging
Typical Applications:
Front position/outline marker on trailers, boat trailers, plant and utility trailers, recovery and transporters, lighting boards and other towed equipment. Suitable for external mounting at the vehicle front corners or extremities where a white front marker with reflector is required, including marine environments.
Also known as:
Front Outline Marker Lamp, Front Position Lamp, LED Outline Marker, White Front Marker Light, WAS LED Marker Lamp, Maypole part number MP8700B
Product Specifications
| L&S Part No. | 763 475 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
