Description
Overview:

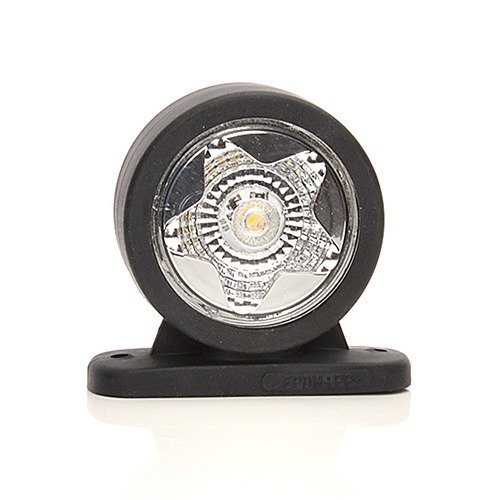

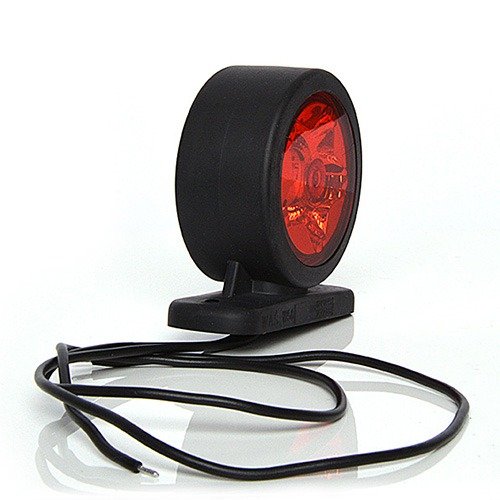

LED outline marker lamp with white/red outputs for vehicle extremities. WAS "star" lens design in a durable rubber housing. Multivolt 10-30V for use on 12V and 24V systems. Supplied by Maypole, E-marked and EMC approved for road use. Supplied with a 33 cm cable tail for hardwired connection. Suitable for surface mounting via the integral mounting holes on trailers, vans, HGVs and plant transport bodies where a compact, sealed marker is required. IP66 sealing resists dust and high-pressure water jets.
Specification:
- Voltage: 10-30V DC (12V/24V systems)
- Light: White/Red LED outline marker
- Housing: Rubber body with "star" lens design
- Connection: 33 cm cable tail
- Ingress protection: IP66
- Approvals: EMC compliant, E-marked (E approved)
- Mounting: Surface mount via housing mounting holes
- Brand/Ref: Maypole MP8715B (WAS)
Typical Applications:
Front and rear outline marking on trailers, plant and recovery bodies, horseboxes, and commercial vans. Used to indicate vehicle extremities on 12V or 24V lighting circuits in fleet, haulage and construction transport.
Product Specifications
| L&S Part No. | 763 520 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Multivolt 10-30V for 12V/24V systems - White/red LED marker for vehicle extremities - Durable rubber housing with "star" lens - IP66 resists dust and high-pressure water - Surface mount with integral holes provided |
