Description
Overview:

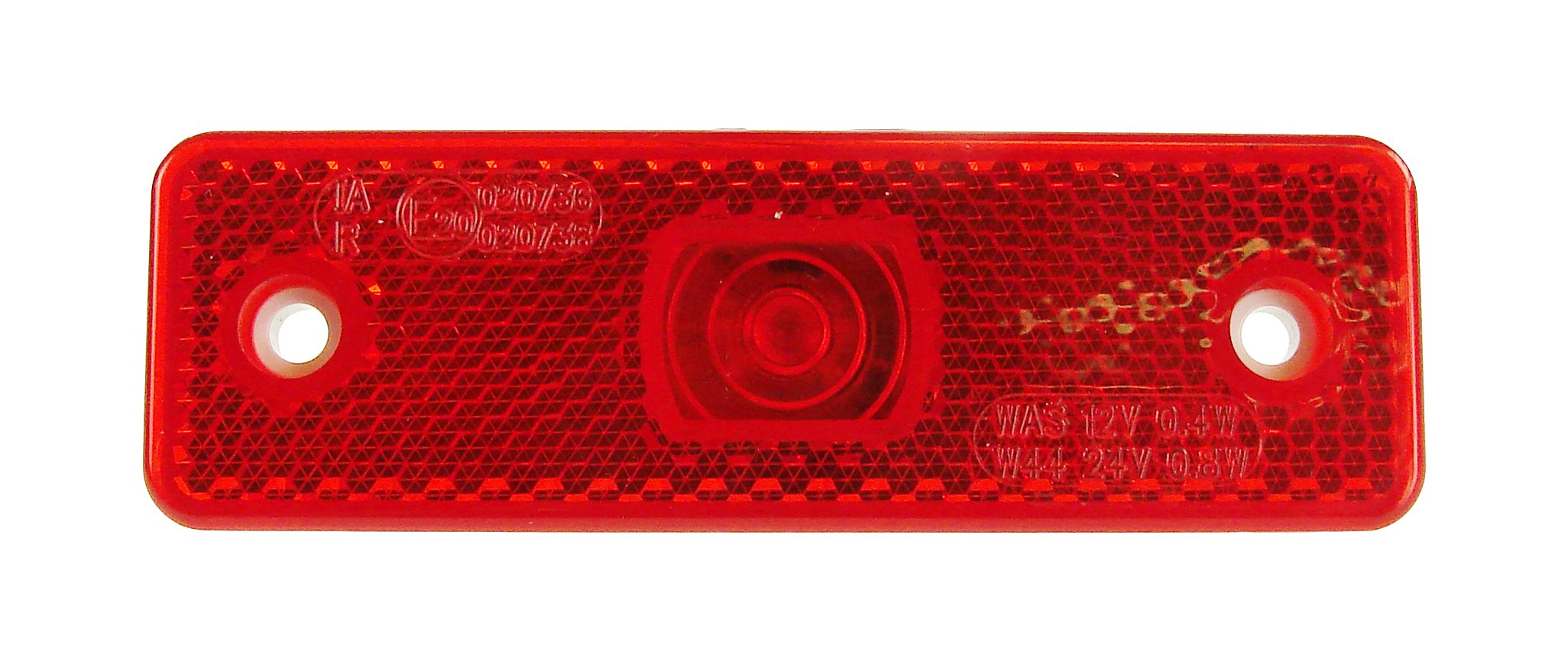

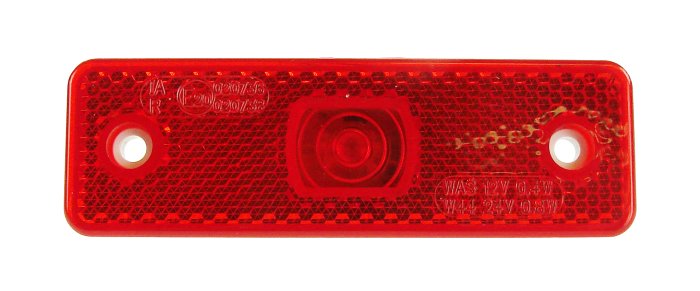

LED Marker Lamp, Rear Red, 12/24V, Horizontal, IP66, With Reflector (MPN 763 353) is a compact rear position marker for trailers, plant transporters, recovery bodies and other towed or commercial vehicles. The low-profile unit uses LED technology to provide a clear rear red marker and incorporates a reflex reflector to support visibility requirements. It operates on both 12V and 24V electrical systems, making it suitable for mixed fleets and workshop spares. The lamp body is sealed to IP66, offering protection against dust ingress and powerful water jets during washdown or site use. A pre-wired 230 mm (9 in) cable tail enables straightforward electrical connection, and the unit is configured for horizontal mounting. The lamp is E-mark approved and EMC compliant and is supplied in bulk without retail packaging.
Key Features:
- 12/24V dual-voltage LED marker lamp for rear red position marking
- Horizontal mounting orientation
- Low-profile, compact design for tight installations
- Integrated reflex reflector
- Sealed to IP66 for dust and water-jet protection
- Pre-wired approx. 230 mm (9 in) cable tail
- Surface mount via fixing holes
- E-mark approved and EMC compliant
- Supplied in bulk without retail packaging
Typical Applications:
Used on rear corners or outer edges of trailers, box vans, plant and machinery transporters, recovery trucks, horseboxes and agricultural trailers to define the vehicle width and rear outline. Suitable as a replacement for existing red LED marker lamps on 12V or 24V systems where a horizontal unit with an integrated reflector and short cable tail is required.
Also known as:
Rear red outline marker lamp, rear position marker light, red LED marker, horizontal red marker lamp, Maypole part number MP8777B
Product Specifications
| L&S Part No. | 763 353 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
