Description
Overview:

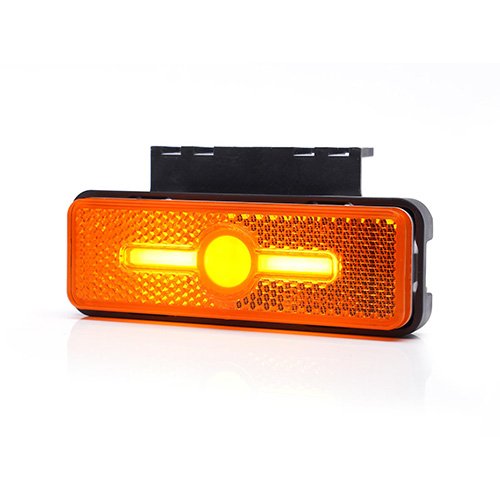

Slimline LED side marker and direction indicator for 12/24V systems. Provides an amber side marker with indicator function and a uniform neon-effect optic. Supplied with a mounting bracket and a 24 cm (approx. 9.45 in) flying lead, and sealed to IP6K9K for pressure-wash environments. The unit can be mounted horizontally or vertically and includes an integrated reflector. E-approved and EMC compliant for use on road-going trailers and commercial vehicles.
Specification:
- Operating voltage: 12/24V DC (multi-voltage)
- Function/colour: amber side marker with direction indicator
- Orientation: horizontal or vertical mounting
- Construction: slimline body with neon-effect optic
- Connection: 24 cm flying lead (approx. 9.45 in)
- Mounting: bracket included; mounting holes provided
- Ingress protection: IP6K9K
- Approvals: E-marked and EMC compliant
- Reflector: integrated
Typical Applications:
Side-mounted marker/indicator on trailers, plant transporters, caravans and vans. Used along the vehicle sides or wings to outline the vehicle and indicate turns in low-profile, washdown-prone locations.
Product Specifications
| L&S Part No. | 763 562 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
