Description
Overview:

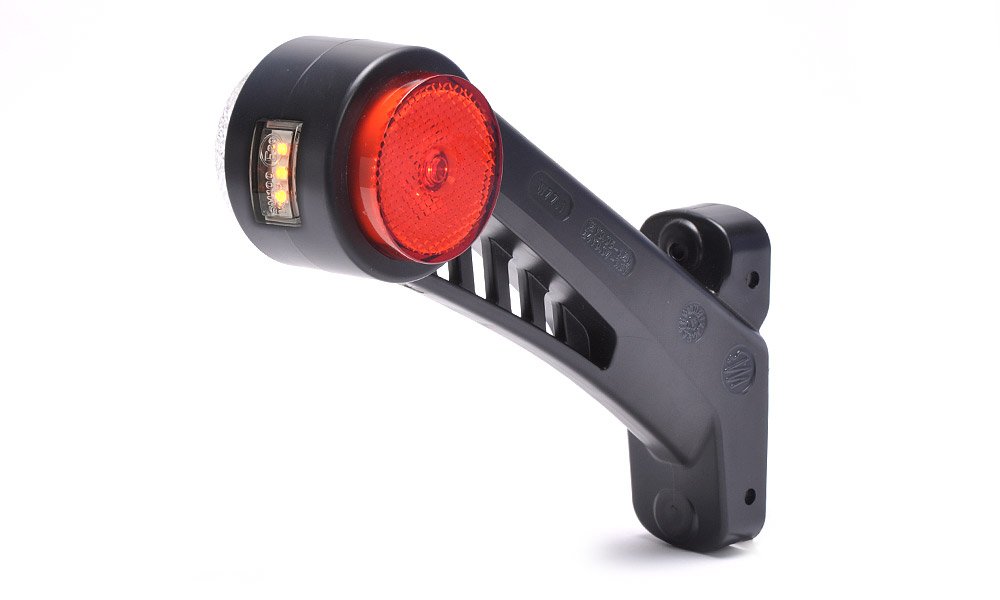

This LED outline marker lamp (MPN 763 735) is a left-hand 45° unit designed to define the front, side and rear extremities of a vehicle or trailer. It uses a tri-colour arrangement to project white to the front, red to the rear and amber to the side, with an integral amber side marker for improved visibility. The lamp features a durable EPDM rubber housing for resilience in fleet and site use, and a sealed construction rated to IP68 for dustproof and waterproof performance. Operating from 9-36V, it suits both 12V and 24V electrical systems. A 200 mm (20 cm) flying lead is provided for straightforward connection, equivalent to approximately 7.9 in. E-mark and EMC approvals support road use on trailers, vans, plant transporters and commercial bodies.
Key Features:
- 9-36V multi-voltage LED outline marker for 12V and 24V systems
- 45° left-hand orientation for the vehicle or trailer's left side
- Tri-colour output: white (front), red (rear), amber (side)
- Integral amber side marker for lateral conspicuity
- EPDM rubber housing for durability and vibration resistance
- IP68 rated: dust-tight and protected against prolonged immersion
- EMC compliant and E-mark approved for road use
- 200 mm (7.9 in) flying lead connection for easy wiring
- Integrated reflector for additional passive visibility
- Mounting holes provided for bolt-on installation
Typical Applications:
Used on the left-hand front or rear corners of trailers, plant and car transporters, horseboxes, agricultural trailers, recovery bodies and light commercial vehicles to indicate the vehicle's outer edges. Suitable for new builds and as a replacement for WAS-type left-hand 45° LED outline marker lamps where a tri-colour marker with integral side light is required.
Also known as:
Left-Hand 45° Outline Marker Lamp; Red/White/Amber LED Position Light; WAS LED Marker Light; Tri-Colour Trailer Marker Lamp; Outline Lamp with Reflector; Maypole part number MP8708BL
Product Specifications
| L&S Part No. | 763 735 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
