Description
Overview:

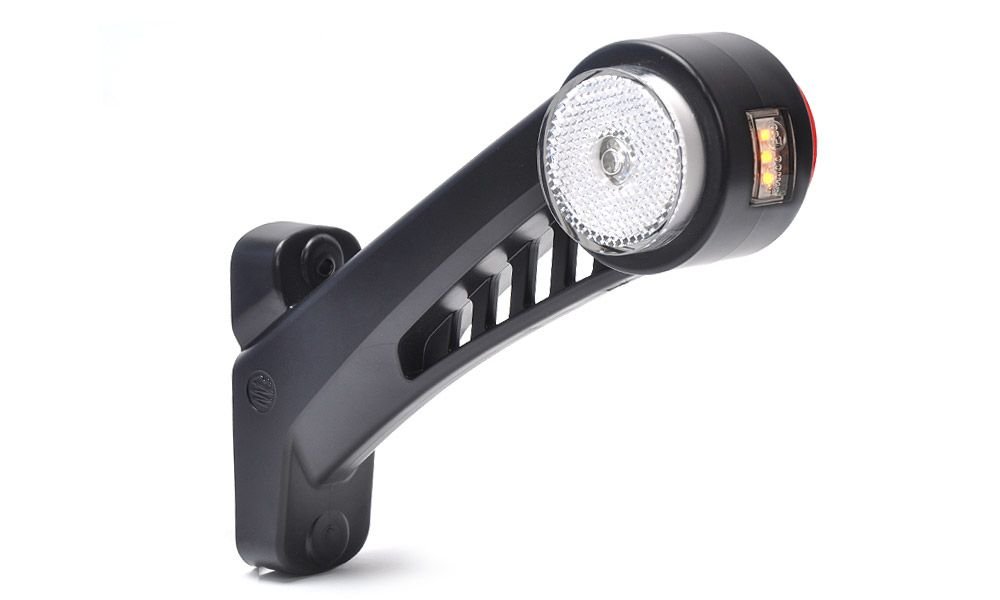

This LED outline marker lamp 9-36V RH 45° red/white/amber with side marker (MPN 763 736) is a right‐hand, tri‐colour position light for outlining the extremities of trailers and commercial vehicle bodies. It provides white light forward, red light rearward and an integral amber side marker for lateral visibility, helping define width and length at night or in poor weather. Built around a durable EPDM rubber housing, the unit is fully sealed to IP68 for long service life in wet, dirty and high‐vibration environments typical of plant, transport and towing work. The lamp is multi‐voltage (9-36V DC) for use on both 12V and 24V systems and is supplied pre‐wired with a 200 mm (20 cm) fly lead, approximately 7.9 in. E‐marked and EMC compliant, it is suitable for professional fitment on road‐going equipment. An integrated reflector adds passive visibility when the vehicle is parked or unpowered. Designed for the 45° right‐hand mounting position, it pairs with the corresponding left‐hand unit where required.
Key Features:
- Operating voltage 9-36V DC for 12V and 24V systems
- Right‐hand (RH) 45° orientation for correct beam presentation
- Tri‐colour outputs: white to the front, red to the rear, amber to the side
- Integral amber side marker function within the same housing
- EPDM rubber housing for durability and vibration resistance
- IP68 sealed for dust‐tight and submersible protection
- Pre‐wired 200 mm (20 cm) cable lead, approx. 7.9 in
- E‐approved and EMC compliant for road use
- Integrated reflector for added passive conspicuity
- LED technology for low current draw and long service life
- Bolt‐on installation with fixing holes provided
Typical Applications:
Used as an outline/position lamp on the outer corners of trailers, semi‐trailers, plant transporters, agricultural trailers, recovery bodies, box and curtain‐sider HGVs, tippers, and towing setups. The RH 45° unit is fitted to the right‐hand side (UK offside) to indicate the vehicle's extremities, often on outline marker brackets or bodywork corners, and is typically paired with the matching LH 45° lamp on the nearside.
Also known as:
- Maypole part number MP8708BR
- Right‐hand 45° outline marker
- Tri‐colour position lamp
- Clearance lamp RH 45°
- Side marker with outline function
Product Specifications
| L&S Part No. | 763 736 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
