Description
Overview:

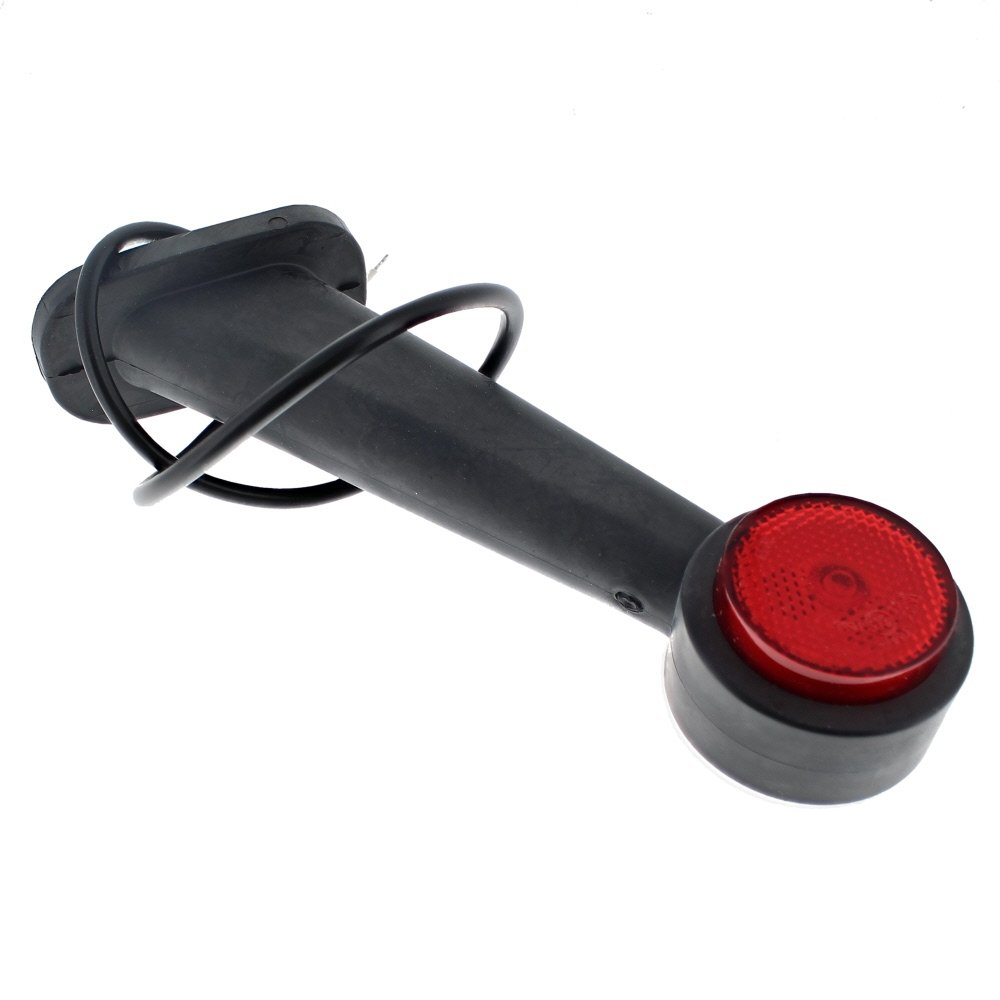

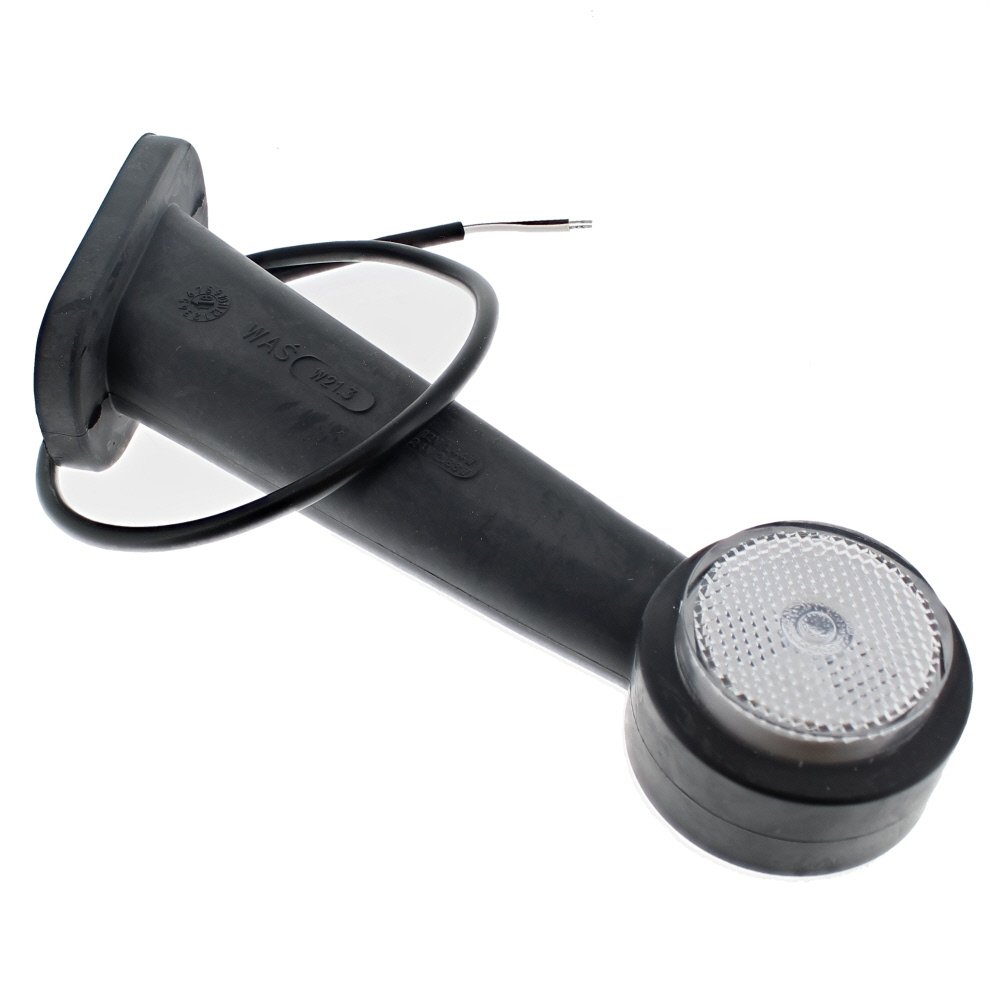

LED Outline Marker Lamp, Left Hand, Red/White, 45 Degree, 10-30V, Reflex (MPN 761 592) is a compact, multivolt LED position/outline marker for the left-hand (UK nearside) of trailers and towed equipment. It presents a white lens forward and a red lens rearward at a fixed 45° angle to clearly indicate the vehicle extremity, with an integrated reflex reflector for passive visibility when unlit. The durable EPDM rubber housing resists knocks and vibration in service, and the sealed unit is rated to IP66 for reliable operation in wet and dusty environments. Power range is 10-30 V DC for use on both 12 V and 24 V systems. The lamp is supplied with a 210 mm (8.27 in) flying lead for straightforward wiring and is E approved and EMC compliant. Supplied loose (bulk) without display packaging for workshop and fleet installation.
Key Features:
- 10-30 V DC operating range for 12 V and 24 V systems
- Left-hand orientation; white lens forward, red lens to rear
- 45° angled body for dual-direction outline marking
- Integrated reflex reflector for enhanced passive visibility
- EPDM rubber housing for impact and vibration resistance
- IP66 ingress protection for dust and water exposure
- E approved and EMC compliant
- 210 mm (8.27 in) flying lead connection
- Surface-mount design with fixing holes
- Supplied loose (bulk) without retail packaging
Typical Applications:
Used on the nearside front/rear corners of trailers, plant and equipment transporters, flatbeds, tippers, horseboxes, caravans and light commercial bodies to define the vehicle outline. Suitable for mounting on body corners, A‐frame or wing brackets, and mudguard stays where a 45° left-hand red/white marker with reflex reflector is required.
Also known as:
Left Hand Red/White 45° Outline Marker Lamp
Nearside 45 Degree LED Position Lamp with Reflex
LED Red/White Corner Marker, Left
Maypole part number MP8706BL
Product Specifications
| L&S Part No. | 761 592 |
|---|---|
| Key Features | - 10-30 V DC range for 12 V and 24 V systems - Left-hand orientation; white lens forward, red lens rear - 45° angled body for dual-direction marking - Integrated reflex reflector for passive visibility - IP66 rated for dust and water protection |
