Description
Overview:

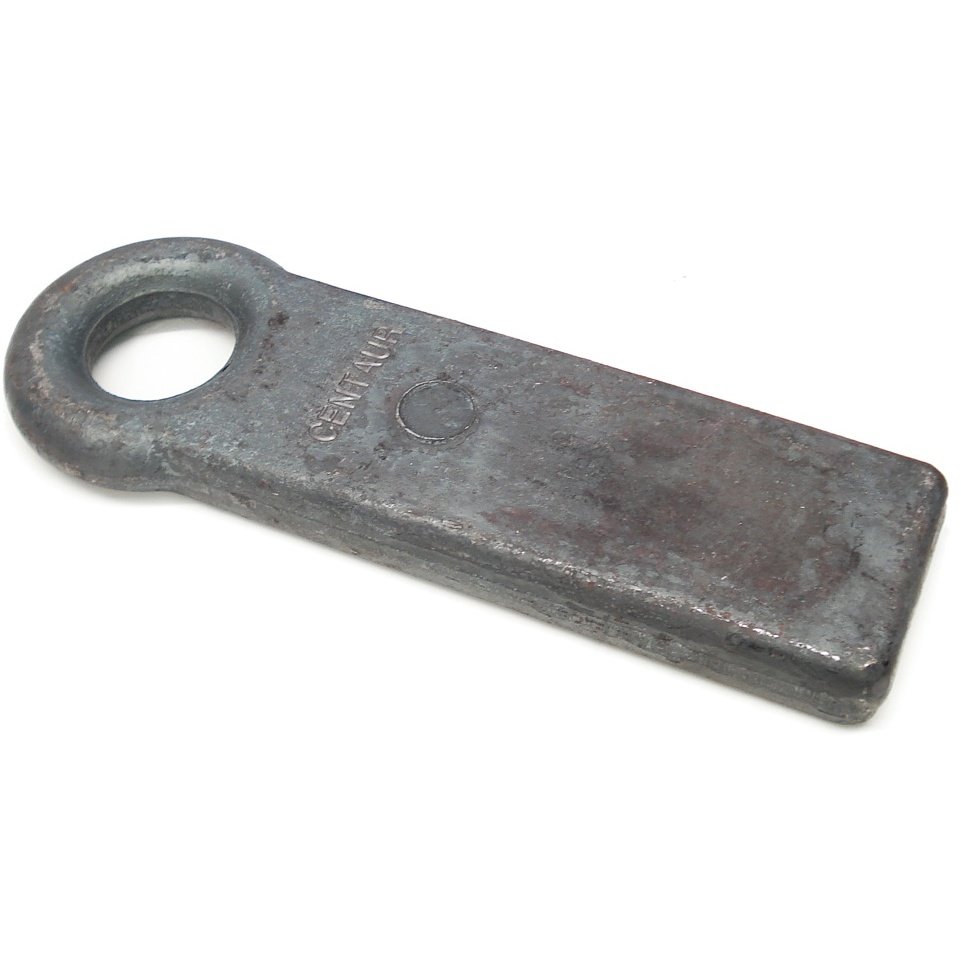

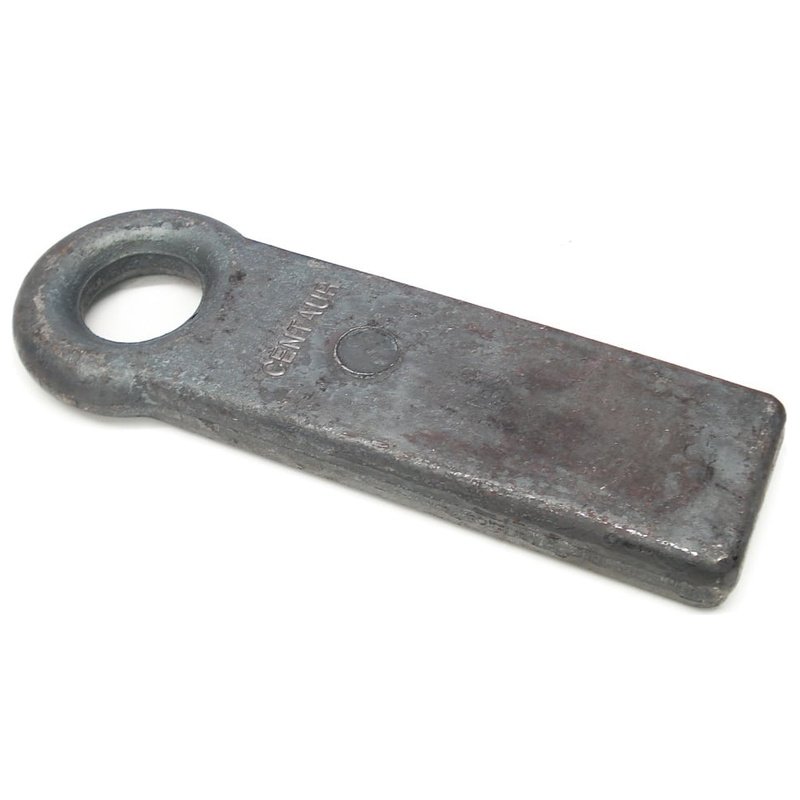

A weld-on towing eye designed for permanent attachment to drawbars, chassis plates, or tow beams on plant, agricultural and utility equipment. Made from heavy-duty weldable steel, it provides a strong and reliable coupling point for site trailers, dumpers, compact tractors, rollers and similar machinery. The eye diameter is 50 mm (2.0 inches) to suit compatible towing pins and pintle hooks. Overall length is 302 mm (11.9 inches) and width is 90 mm (3.5 inches), with a robust 42 mm (1.65 inches) body thickness to support demanding use. Supplied as a plain steel component ready for proper weld preparation and full-penetration welding. Suitable for new builds or refurbishments where a fixed tow point is required. Manufacturer Part Number (MPN): 200 145.
Key Features:
- Heavy-duty steel construction for long service life in harsh site conditions
- Weld-on design for a permanent, rattle-free tow point on machinery and trailers
- 50 mm (2.0 inches) eye suits compatible towing pins and pintle hooks
- Length 302 mm (11.9 inches), width 90 mm (3.5 inches), thickness 42 mm (1.65 inches) for a stable weld footprint
- Smooth, rounded eye profile helps reduce pin and bush wear
- Simple to position and align on a flat mounting plate or drawbar face
- Ideal where bolt-on couplings are not practical or space is limited
- Compatible with plant, agricultural and industrial towing setups (check pin size and rating)
- Supplied in plain/weld-ready steel for ease of fabrication and finishing
- Engineered for strength and repeatable performance when correctly installed by a competent welder
Typical Applications:
Permanent tow point on plant trailers, site dumpers, road rollers, telehandler or loader counterweights, yard tractors, and workshop-built drawbars. Useful for machinery transport around depots and sites, towing site gear at low speeds, attaching winch bridles, or upgrading worn eyes during refurbishment, provided the installation and towing system are suitably rated.
Also known as:
Towing ring, drawbar eye, trailer eye, pintle eye, tow coupling eye, weld-on tow loop, weld-on towing ring, drawbar towing eye, weld-on hitch eye, fixed towing eye.
Product Specifications
| L&S Part No. | 200 145 |
|---|---|
| Unit of Sale | 1 |
| Machine Type | Tow Couplings |
