Description

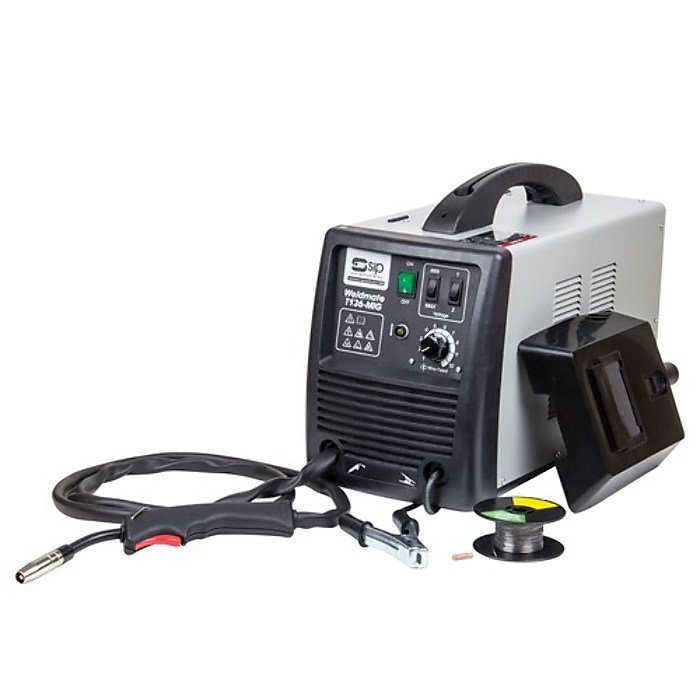

Weldmate T136 MIG Gas - Gasless Welder
MIG welders are mainly for the serious home or trade welder and offer portability, convenience and ease-of-use at value-for-money prices.
230v (13amp) supply
15.5v - 18.0v circuit voltage
0.7kg and 5.0kg wire spool sizes
4 complete output power settings
30amps - 135amps (peak) current range
0.6mm - 0.8mm Flux-cored wire diameter
Turbo fan-cooled for increased performance
0.7mm - 5.4mm weld thickness (mild steel)
Ready to use in gasless mode
Thermal overload protection
Supplied with the following:
1.8m MIG torch, earth lead, wire brush
Handheld shield, contact tip, 0.2kg Flux
Gas bottle brackets
Technical Description:
Construction SWITCHED TRANSFORMER
Input Supply 230v (13amp)
Output Current 30amps - 80amps
Peak Current 135amps
Welding Volt Range 15.5v - 18.0v
Welding Volt Steps 4 volt steps
Duty Cycle 80amps @ 20%
Max. Wire Speed 16 metres/min
Wire Size 0.6mm - 0.8mm
Insulation Class H
Protection IP21S
Gross Weight 20.0kg
Packaged Dimensions 375 x 305 x 630mm
Additional Gas/gasless
MIG welders are mainly for the serious home or trade welder and offer portability, convenience and ease-of-use at value-for-money prices.
230v (13amp) supply
15.5v - 18.0v circuit voltage
0.7kg and 5.0kg wire spool sizes
4 complete output power settings
30amps - 135amps (peak) current range
0.6mm - 0.8mm Flux-cored wire diameter
Turbo fan-cooled for increased performance
0.7mm - 5.4mm weld thickness (mild steel)
Ready to use in gasless mode
Thermal overload protection
Supplied with the following:
1.8m MIG torch, earth lead, wire brush
Handheld shield, contact tip, 0.2kg Flux
Gas bottle brackets
Technical Description:
Construction SWITCHED TRANSFORMER
Input Supply 230v (13amp)
Output Current 30amps - 80amps
Peak Current 135amps
Welding Volt Range 15.5v - 18.0v
Welding Volt Steps 4 volt steps
Duty Cycle 80amps @ 20%
Max. Wire Speed 16 metres/min
Wire Size 0.6mm - 0.8mm
Insulation Class H
Protection IP21S
Gross Weight 20.0kg
Packaged Dimensions 375 x 305 x 630mm
Additional Gas/gasless
Product Specifications
| L&S Part No. | 845 5736 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | SIP Industrial Products |
| OEM No. | 05736 |
| Unit of Sale | 1 |
| Size | 375 x 305 x 630mm |
