Description
Overview:

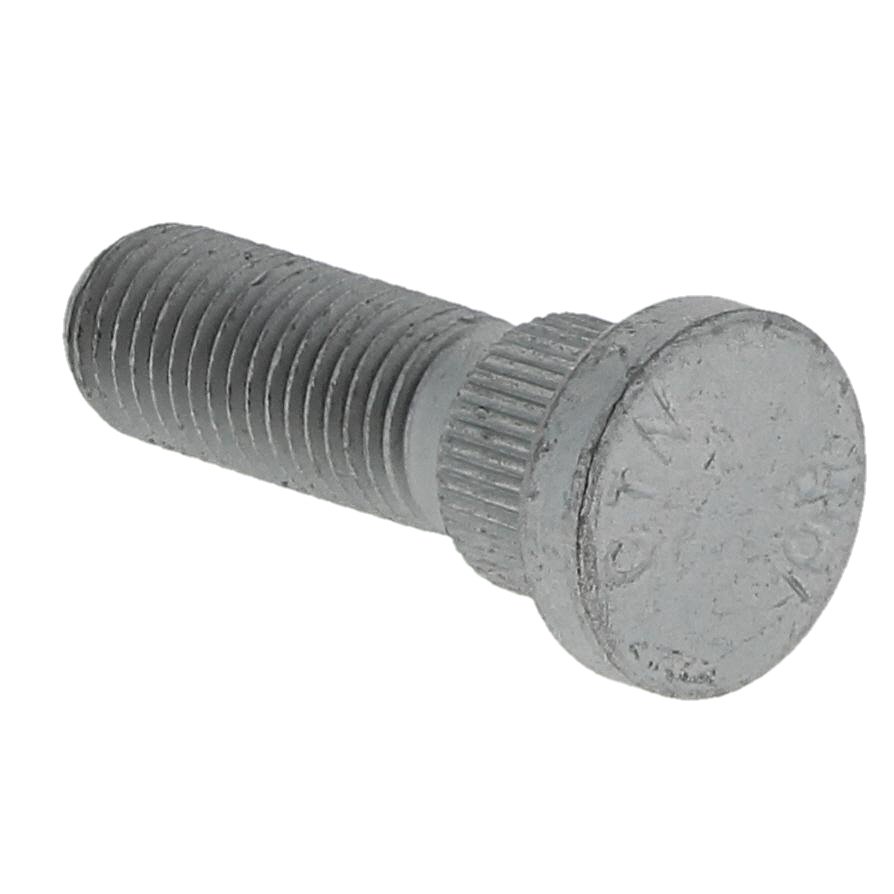

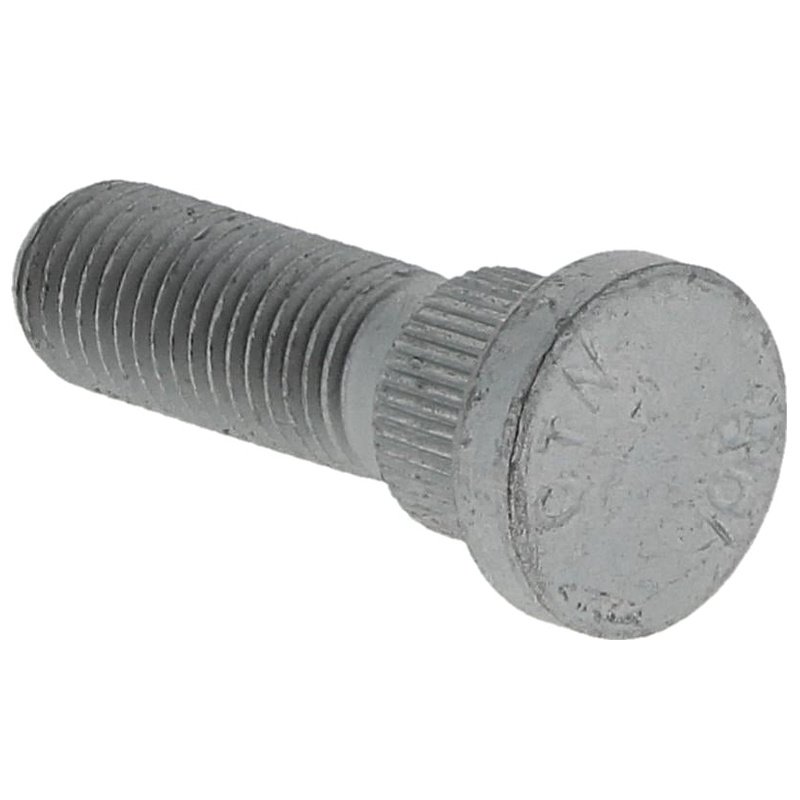

This M12 x 1.5 wheel stud is a press-fit fixing for un-braked trailer hubs, made for secure wheel retention on Avonride E Series hubs. Built from durable steel, it uses an interference-fit spline to lock into the hub flange and provide a reliable mounting point for M12 wheel nuts (not supplied). Key dimensions are: thread length 27 mm (1.06 inches), overall length 45 mm (1.77 inches), and spline (knurl) diameter 14.5 mm (0.57 inches). It is suitable for light trailers and similar towed equipment using un-braked hubs, helping maintain wheel stability and safety under everyday use. Designed to suit the Avonride E Series, it offers a consistent fit where the correct spline size and thread pitch are required.
Key Features:
- M12 x 1.5 metric thread for common trailer wheel fixings
- 27 mm (1.06 inches) thread length for full nut engagement
- 45 mm (1.77 inches) overall length for standard hub and wheel thicknesses
- 14.5 mm (0.57 inches) spline diameter for secure press-fit in the hub
- Durable steel construction for strength under clamping loads
- Interference-fit spline helps resist rotation during tightening/loosening
- Suitable for Avonride E Series un-braked hubs
- Straightforward replacement with a suitable press or pull-through method
- Helps maintain safe, even clamping of the wheel to the hub
Typical Applications:
Replacing damaged or corroded studs on un-braked trailer hubs fitted to light-duty road trailers, plant and utility trailers, garden and domestic trailers, and similar towed equipment that uses Avonride E Series hubs. Suitable for routine maintenance or refurbishment to restore reliable wheel fixing and load security.
Also known as:
Hub bolt, wheel bolt, stud bolt, hub stud, wheel fixing stud, press-fit wheel stud, knurled shank stud, lug stud, serrated hub stud.
Fits Models:
E Series, ESeries
Product Specifications
| L&S Part No. | 761 532 |
|---|---|
| Unit of Sale | 1 |
| Applications | E Series, ESeries |
| Machine Type | Trailers |
