Description
Overview:

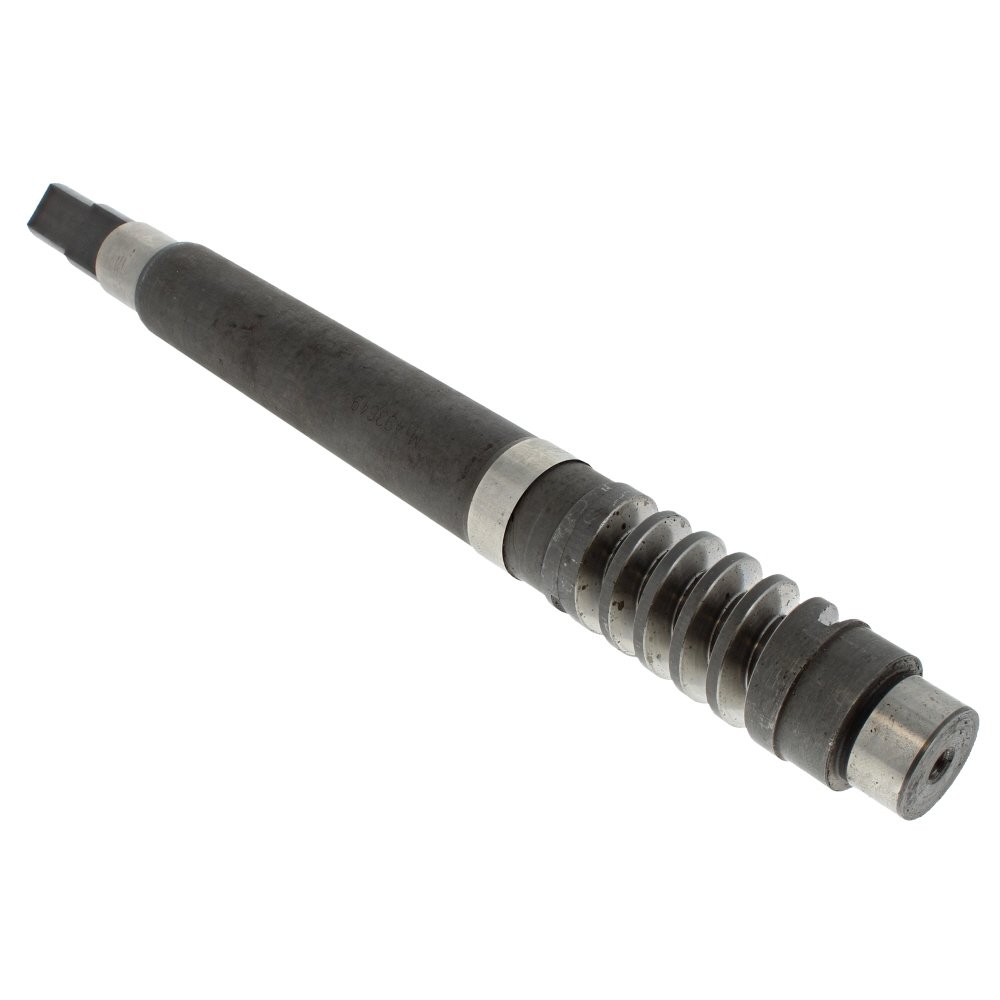

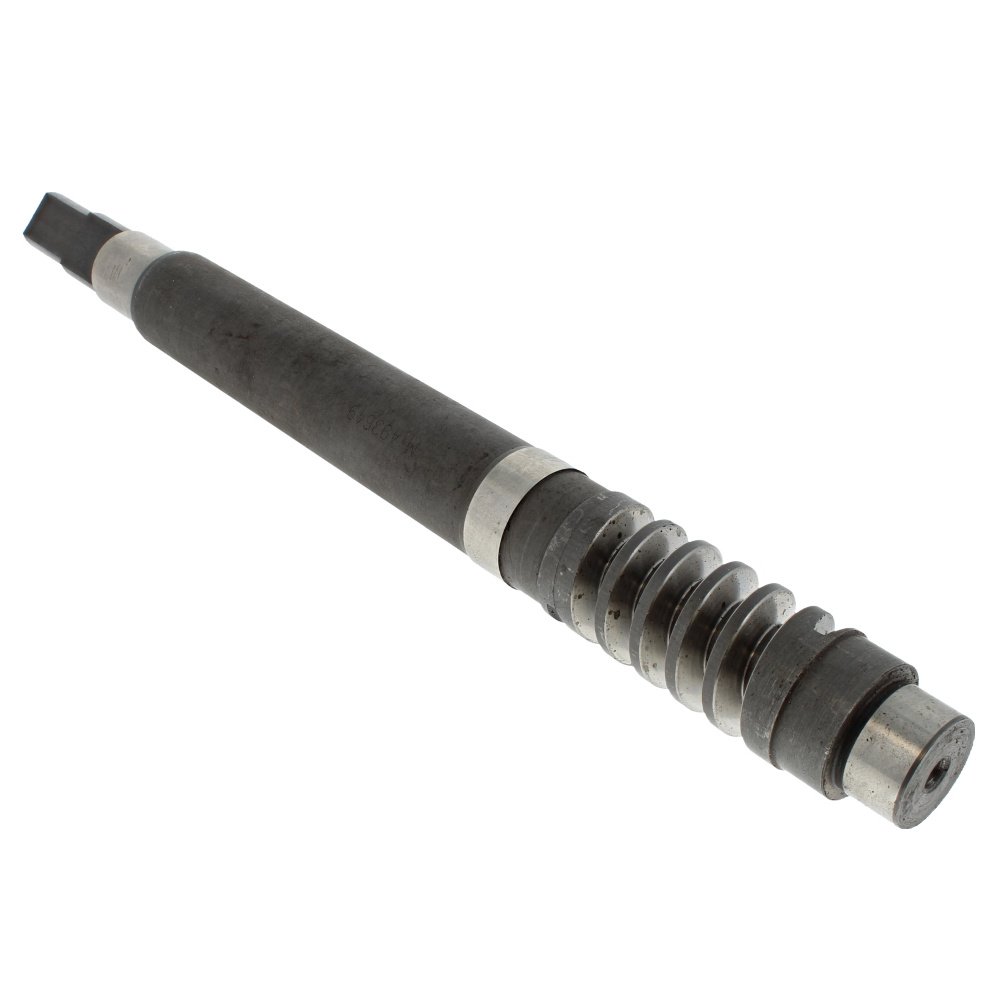

The Worm Shaft for Stihl MH 585.0 and MH 685.0 tillers is a genuine Stihl/Viking transmission component that drives the tines via the reduction gearbox. Built from precision‐machined steel for strength and long service life, it transfers engine torque smoothly to the working parts of the machine. This OEM shaft (OEM No. 6241 642 0394, MPN 62416420394) is engineered to fit the specified Stihl/Viking tiller gearcases without modification, maintaining correct mesh and alignment with mating gears. If your tiller is slipping, noisy, or showing play in the drive, a worn worm shaft is a common cause-replacement restores reliable ground engagement and consistent performance. Suitable for garden tillers used by homeowners, landscapers, and professional grounds teams who need dependable power transmission.
Key Features:
- Genuine Stihl/Viking part for assured compatibility and performance
- OEM No. 6241 642 0394 / MPN 62416420394 for accurate identification
- Precision‐machined steel construction for wear resistance under heavy load
- Maintains correct gear mesh to reduce noise and premature wear
- Designed for the Stihl MH 585.0 and MH 685.0 gearboxes for a reliable fit
- Restores smooth, efficient power transfer to the tine drive
- Durable build suitable for regular tilling in compacted or stony soils
- Straightforward replacement using standard workshop tools
- Helps prevent secondary damage to mating gears and bearings
- Supports long-term reliability of the tiller drivetrain
Typical Applications:
Replacement of a worn or damaged worm shaft in Stihl/Viking tillers to cure drive loss, chattering, excessive backlash, or metallic noise from the gearbox. Ideal during full gearbox overhauls, seasonal servicing, or when fitting new mating gears or bearings to ensure correct engagement and longevity in domestic, commercial, and landscaping use.
Also known as:
Worm drive shaft, gear shaft, drive shaft, worm gear shaft, reduction shaft, transmission shaft, tiller gear, gearbox worm.
Fits Models:
HB 560.1, HB 585.1, HB 685.1, HB560.1, HB5601, HB585.1, HB5851, HB685.1, HB6851, MH 560.0, MH 585.0, MH 685.0, MH560.0, MH5600, MH585.0, MH5850, MH685.0, MH6850
Alternate Part Numbers:
6241-642-0394, 62416420394
Product Specifications
| L&S Part No. | 6241 642 0394 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 62416420394 |
| Unit of Sale | 1 |
| Applications | HB 560.1, HB 585.1, HB 685.1, HB560.1, HB5601, HB585.1, HB5851, HB685.1, HB6851, MH 560.0, MH 585.0, MH 685.0, MH560.0, MH5600, MH585.0, MH5850, MH685.0, MH6850 |
| Machine Type | Tillers |
| Fits Brands | Stihl |
| Fits Models | HB 585.1 | HB 560.1 | HB 685.1 | MH 585 |
