Description
Overview:

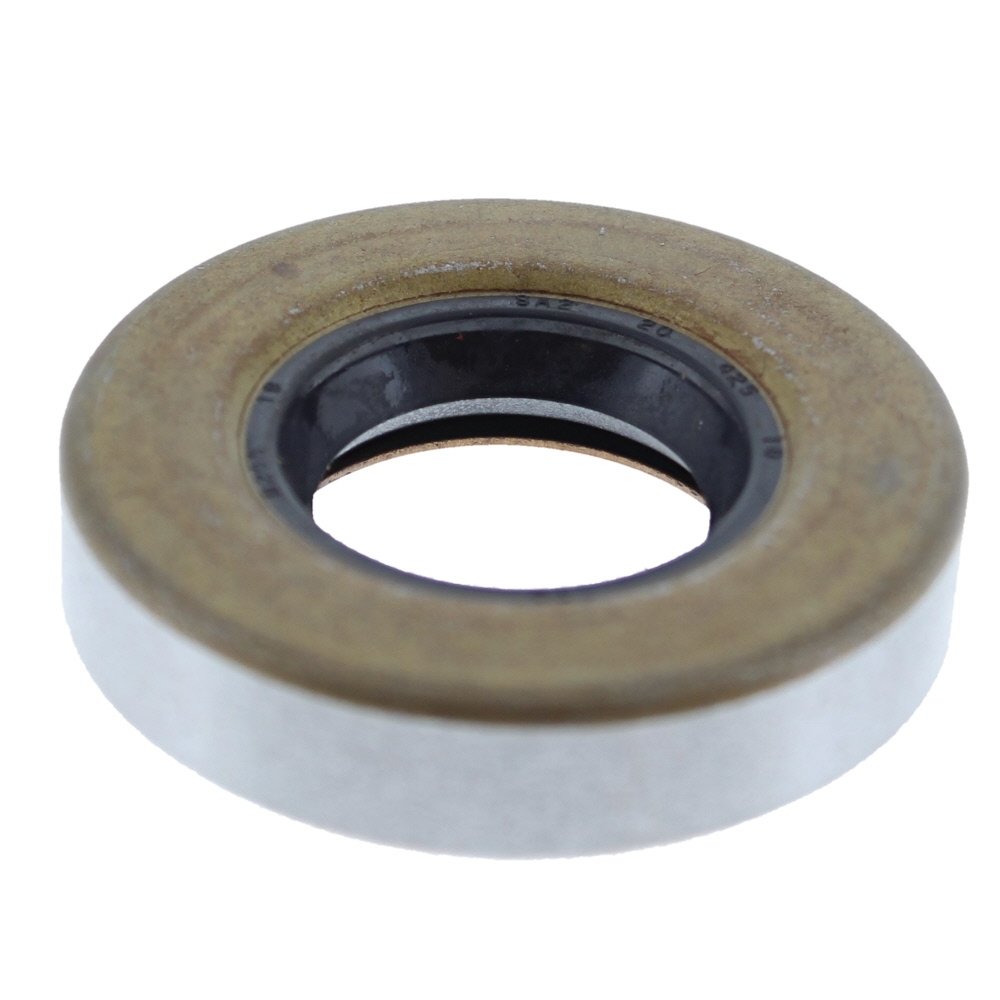

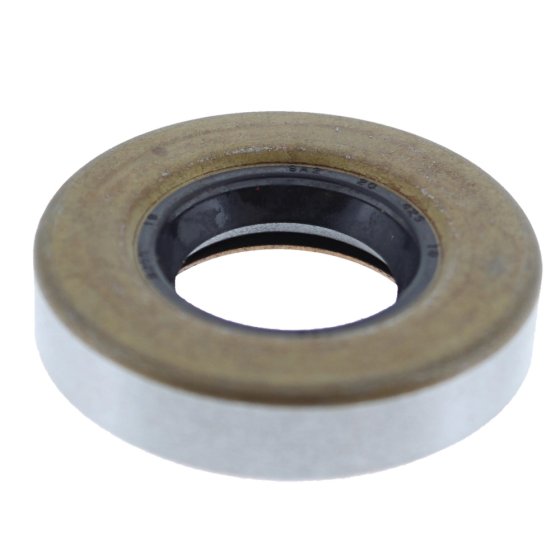

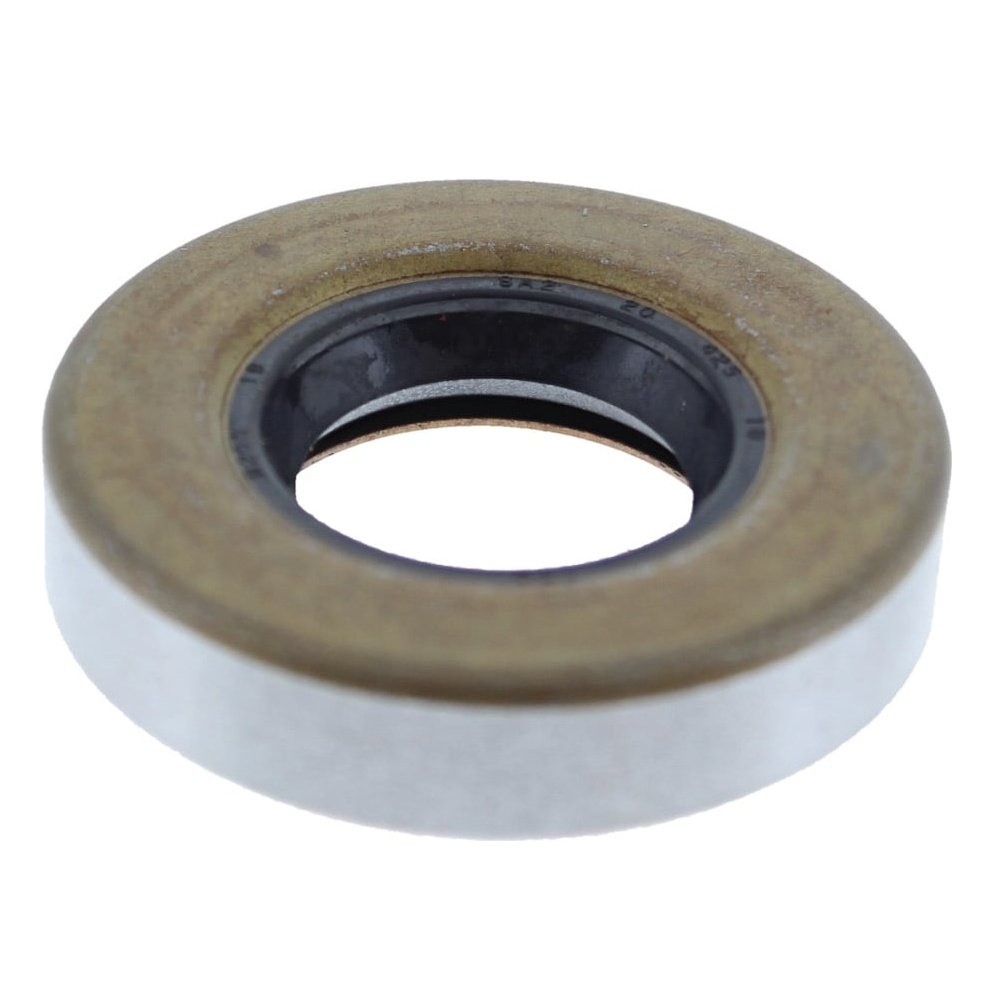

The Worm Shaft Oil Seal is a Genuine Altrad/Belle component designed for the gearbox on Belle Minimix 150 (1989-Oct 2004) and Minimix 140 mixers. It sits on the worm shaft to contain gearbox oil and keep out dust and slurry, helping the worm and pinion stay correctly lubricated. Built from oil‐resistant elastomer with a rigid metal reinforcement and a spring-loaded sealing lip, it offers dependable sealing under site conditions. The seal measures 20 mm x 42.5 mm x 10 mm (0.79 inches x 1.67 inches x 0.39 inches), matching the original specification for a precise fit. Using the correct seal helps maintain smooth drum rotation, reduces wear, and supports long service life in both trade and DIY use.
Key Features:
- Genuine Altrad/Belle part for correct fit and performance
- Optimised for Minimix 150 (1989-Oct 2004) and Minimix 140 gearboxes
- Oil‐resistant elastomer with metal reinforcement for durability
- Spring‐loaded lip maintains contact on the shaft to prevent leaks
- Helps preserve lubrication of worm and pinion for smooth running
- Dimensions: 20 mm x 42.5 mm x 10 mm (also 0.79 in x 1.67 in x 0.39 in)
- Resists ingress of dust, grit, and wash‐down water
- Supports lower maintenance costs by reducing oil loss and wear
- Straightforward like‐for‐like replacement with standard workshop tools
- Suitable for heavy site use, hire fleets, and home projects
Typical Applications:
Used to replace a worn or leaking worm shaft seal during gearbox repairs or scheduled servicing on Belle drum mixers. Common symptoms include oil weeping at the gearbox output, residue on the drum side cover, or increased gear noise. Essential for maintaining reliable mixing of concrete, mortar, and render on building sites, landscaping jobs, and general maintenance work.
Also known as:
Rotary shaft seal, radial oil seal, lip seal, worm drive seal, gearbox oil seal, shaft oil seal, NBR oil seal.
Fits Models:
Minimix 150 (1989-Oct 2004), Minimix 140
Alternate Part Numbers:
CMS41
Product Specifications
| L&S Part No. | CMS41 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Altrad/Belle |
| OEM No. | CMS41 |
| Unit of Sale | 1 |
| Size | 20 x 42.5 x 10mm |
| Applications | 150, Minimix 140, Minimix 150, Minimix140, Minimix150 |
| Machine Type | Mixers |
| Fits Brands | Belle |
| Fits Models | Minimix 150 | Minimix 140, 150 (Pre 1999) |
