Description
Overview:

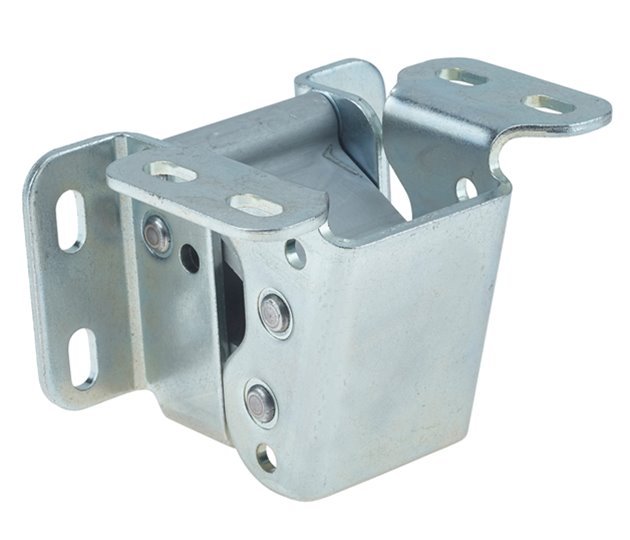

The concealed cantilever hinge (MPN 800 1038) is a compact, flush-mount hinge for doors and panels where the mechanism needs to be hidden inside the frame. It uses a zinc plated mild steel body for strength and corrosion resistance, with anodised aluminium link arms for smooth articulation. The hinge measures 102 mm (4.02 in) in length and opens to 110°, allowing wide access without external protrusions. It has been endurance tested to 10,000 open/close cycles using a pair of hinges fitted to a 25 kg (55.1 lb) door sized 1 m x 1 m (39.37 in x 39.37 in), giving a practical indication of performance on service doors and access hatches. Suitable for commercial vehicle bodies and equipment where a clean exterior line and protected hardware are required, and supplied under the Pinet brand.
Key Features:
- Concealed cantilever mechanism for flush doors and panels
- Mild steel construction with zinc plated finish for corrosion protection
- Anodised aluminium links for controlled, smooth movement
- Overall length: 102 mm (4.02 in)
- Overall width: 75.5 mm (2.97 in)
- Overall thickness/projection: 80.5 mm (3.17 in)
- Opening angle: 110° for wide access
- Fixing slots: Ø7 x 14 mm (approx. 0.28 x 0.55 in) for positional adjustment
- Cycle test: 10,000 operations with two hinges on a 25 kg (55.1 lb), 1 m x 1 m (39.37 x 39.37 in) door
- Brand: Pinet
- Suitable for steel or alloy door leaves and frames where concealed fittings are preferred
Typical Applications:
Used on truck and trailer body access doors, van compartments, containers, skips, plant and waste equipment, balers, driver cabs, buses, HVAC service panels, generator sets, and heavy quarry or screening/crushing machinery. Ideal where the hinge should be protected from damage and tampering while maintaining a tidy exterior.
Also known as:
Hidden hinge; Recessed hinge; Articulated hinge; Swing-arm hinge; Flush-mount hinge; Internal cantilever hinge
Product Specifications
| L&S Part No. | 800 1038 |
|---|---|
| Unit of Sale | 1 |
