Description
Overview:

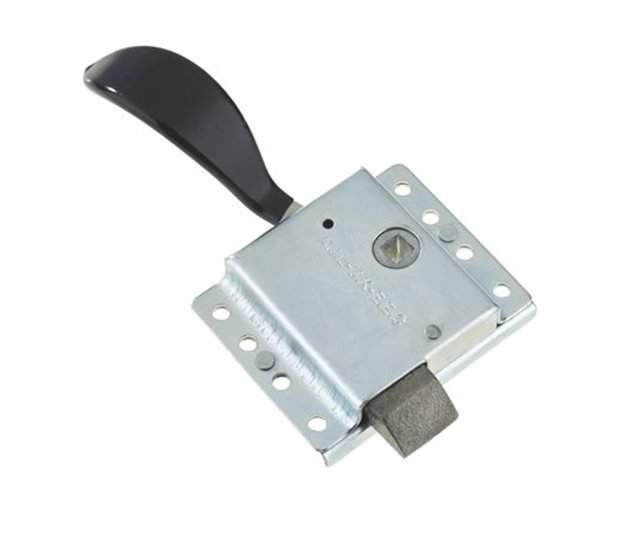

Slam Lock With Handle, Left Hand, Zinc Plated, 87.5 x 70mm (MPN 800 1164) is a compact, handed latch designed for vehicle and equipment body doors. The body is manufactured from mild steel with a zinc plated finish for corrosion protection, paired with a hard-wearing malleable iron tongue that engages automatically when the door is pushed shut. It incorporates a handle for direct operation and uses an 8 mm (0.31 in) square drive for actuation. The main body measures 87.5 mm (3.45 in) long by 70 mm (2.76 in) wide, with a body thickness of 16 mm (0.63 in). The tongue size is 16 mm (0.63 in). Installation is via 6 mm (0.24 in) diameter fixing holes. Suitable for demanding service on commercial vehicles and plant where a positive slam action is required.
Key Features:
- Left-hand slam lock with integrated handle for straightforward operation
- Mild steel construction for strength in service
- Zinc plated finish for corrosion resistance in fleet environments
- Malleable iron tongue for reliable engagement and durability
- 8 mm (0.31 in) square drive
- Overall length: 87.5 mm (3.45 in)
- Overall width: 70 mm (2.76 in)
- Body thickness: 16 mm (0.63 in)
- Tongue size: 16 mm (0.63 in)
- Fixing holes: Ø6 mm (0.24 in) for straightforward mounting
- Suited to commercial vehicle and plant bodywork applications
Typical Applications:
For use on body doors and access panels across trucks, trailers, buses and coaches, generator set enclosures, horseboxes and vehicle cabs where a left-hand slam action latch is required.
Also known as:
Slam latch, Left-hand slam latch, Door slam lock, Vehicle slam catch, Zinc plated slam lock
Product Specifications
| L&S Part No. | 800 1164 |
|---|---|
| Unit of Sale | 1 |
