Description
Overview:

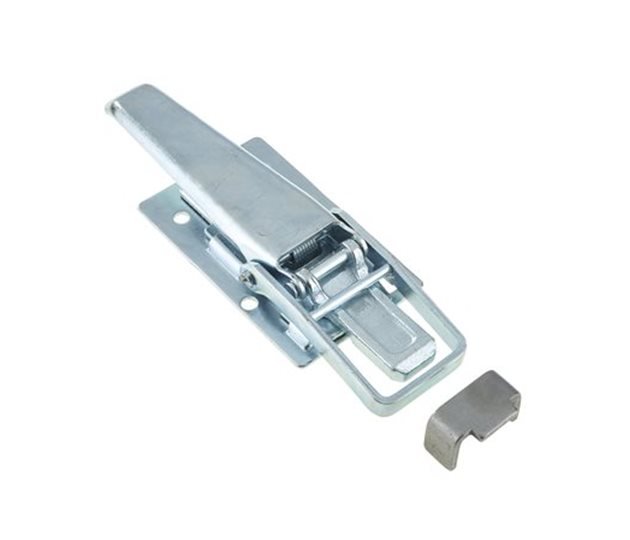

Over-Centre Tailboard Latch, Plant-On, Zinc Plated, 259mm, With Keeper (MPN 800 1283) is a spring-loaded latch assembly designed to secure tailboards and drop-sides on commercial vehicles and equipment. Made from mild steel with a zinc plated finish, it offers a durable, corrosion-resistant solution for frequent use in transport and plant environments. The plant-on base plate enables straightforward surface mounting, and the unit is supplied complete with a matching keeper/striker for a correctly aligned closure. Overall length is 259 mm (10.20 in), with a body width of 88 mm (3.46 in) and height of 32.5 mm (1.28 in). The base plate measures 143 x 88 x 3 mm (5.63 x 3.46 x 0.12 in). Typical uses include tailboards on tippers and truck bodies, general-purpose trailers, agricultural balers and skips.
Key Features:
- Spring-loaded over-centre latch for positive closure
- Plant-on base plate for surface mounting
- Supplied complete with keeper/striker
- Material: Mild steel
- Finish: Zinc plated
- Overall length: 259 mm (10.20 in)
- Body width: 88 mm (3.46 in)
- Overall height: 32.5 mm (1.28 in)
- Base plate size: 143 x 88 x 3 mm (5.63 x 3.46 x 0.12 in)
- Fixing pattern: 4 x Ø8.5 mm (0.34 in) holes
Typical Applications:
Used to secure tailboards and drop-sides on tippers, truck bodies and general trailers. Also fitted to skips and agricultural machinery such as balers, and suitable for plant transport where a robust, surface-mounted latch is required.
Also known as:
Over-centre fastener, Over-centre catch, Toggle latch, Tailboard fastener, Tailgate latch, Plant-on latch
Product Specifications
| L&S Part No. | 800 1283 |
|---|---|
| Unit of Sale | 1 |
