Description
Overview:

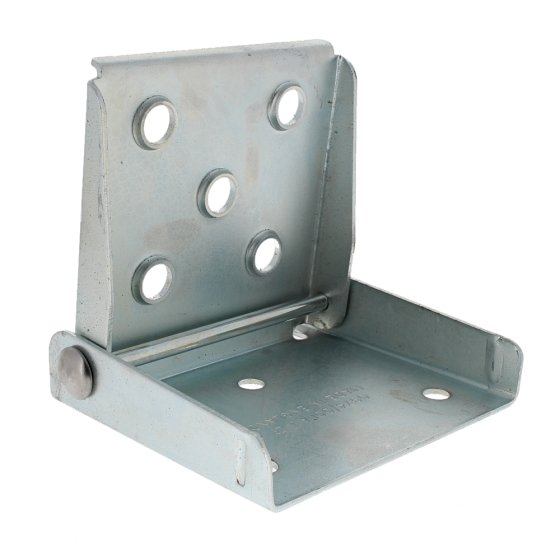

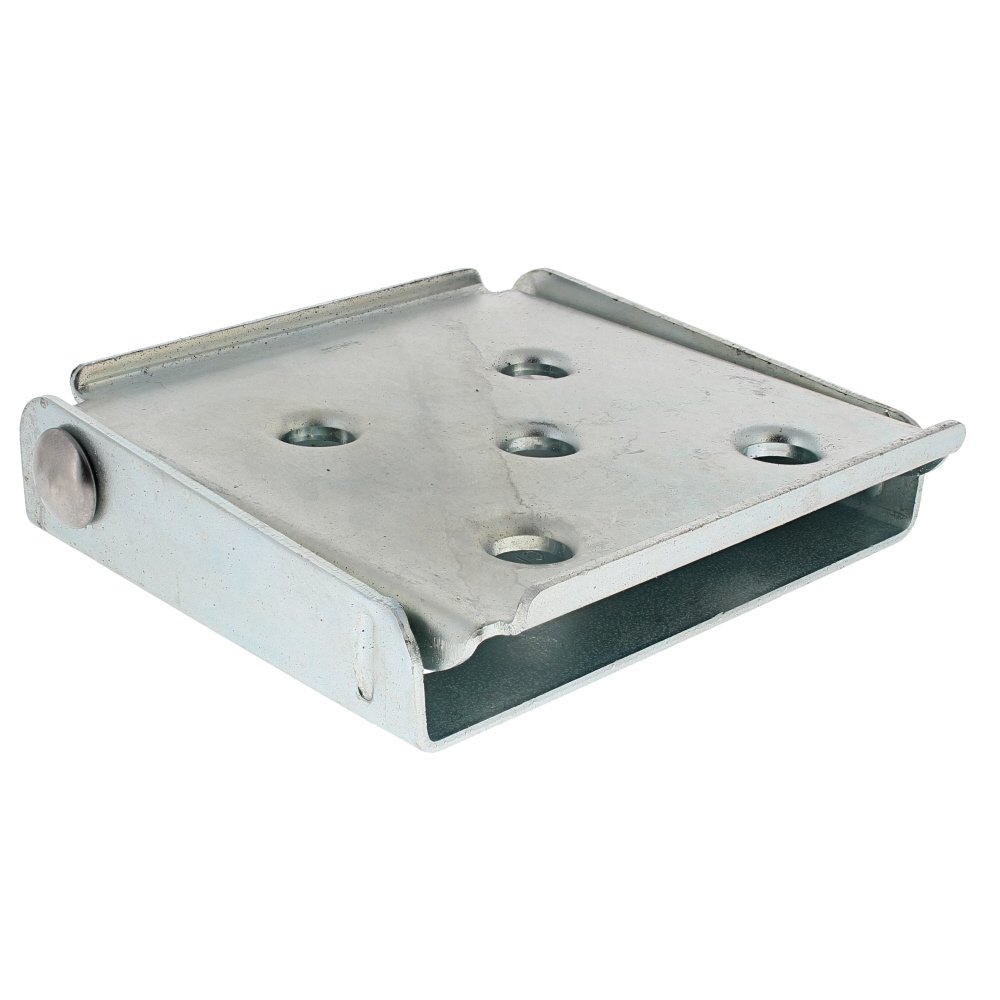

The Folding Access Step, pressed mild steel and zinc plated (MPN 800 1002), provides a compact foothold for safe access to vehicle bodies and equipment enclosures. Designed for commercial use, it folds away when not required to minimise projection and reduce snagging risks. The step is manufactured from durable mild steel with a zinc plated finish for corrosion protection in fleet and site environments. Its small square footprint suits tight mounting areas on trucks, trailers, modular buildings and generator sets. The platform measures 110mm by 94mm (4.33in by 3.70in) with an overall depth of 105mm (4.13in). Countersunk fixing points accept Ø8mm (0.31in) hardware for a neat, flush installation. Rated to a maximum working load of 150kg (330lb), it is suitable for routine access tasks across commercial vehicle and plant applications.
Key Features:
- Pressed mild steel construction for strength and durability
- Zinc plated finish for corrosion resistance in service environments
- Folding design to reduce projection when not in use
- Compact platform size: 110mm length x 94mm width (4.33in x 3.70in)
- Overall depth: 105mm (4.13in)
- Countersunk fixing holes for Ø8mm (0.31in) fasteners
- Load rating: 150kg (330lb) maximum
- Small square form factor for tight mounting spaces
- Suitable for professional and fleet applications
- Brand: Albert Jagger
Typical Applications:
Used on commercial trucks and trailers for body and compartment access, fitted to modular buildings for doorway steps, and on generator enclosures to aid maintenance access. Suitable across general commercial vehicle builds and plant support equipment where a compact, fold-away step is required.
Also known as:
Fold-down step; Flip-down step; Folding footstep; Vehicle access step; Compact access step
Product Specifications
| L&S Part No. | 800 1002 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Pressed mild steel for strength and stability - Zinc-plated for corrosion resistance - Compact 110 mm x 94 mm size - Fold-down design reduces snagging - Textured tread for improved grip |
