Description
Overview:

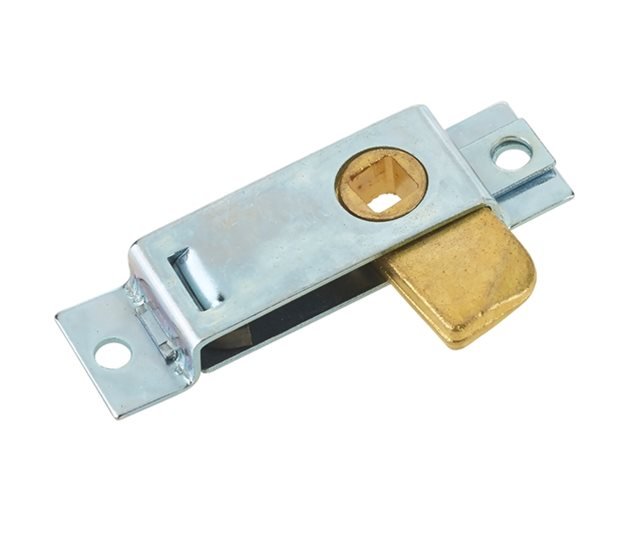

The Budget Lock, Left Hand, 80.5 mm, Brass Tongue, Zinc Plated Case (MPN 800 1057) is a compact latch designed for service doors and access panels on commercial vehicles and equipment. It features a pressed mild steel casing with a zinc plated, clear passivated finish for corrosion resistance, paired with a self-colour brass tongue for durable engagement. The lock body measures 80.5 mm (3.17") across, 22.5 mm (0.89") in length, and 11.5 mm (0.45") in thickness. An 8.5 mm (0.33") square is provided for operation, and the unit accepts fixings through Ø5.5 mm (0.22") holes. The left-hand configuration suits doors and hatches where the latch needs to throw to the left when viewed from the operating side. Suitable for new builds and replacements on truck bodies, trailers, vans, buses and industrial enclosures where a simple budget-type closure is specified.
Key Features:
- Left-hand operation for panels and doors requiring a left throw
- Pressed mild steel casing for strength and durability
- Zinc plated, clear passivated finish for corrosion resistance
- Self-colour brass tongue for reliable latch engagement
- Body width: 80.5 mm (3.17")
- Body length: 22.5 mm (0.89")
- Body thickness: 11.5 mm (0.45")
- Square: 8.5 mm (0.33") for actuator/key interface
- Fixing: Ø5.5 mm (0.22") mounting holes
- Suited to commercial vehicle and plant access panel use
Typical Applications:
Used on access panels, service doors and lockers across commercial vehicle bodies and equipment, including trucks, trailers, vans and buses. Also commonly fitted to static plant and enclosures such as boiler housings and utility cabinets where a budget-style latch is required for secure closure and straightforward maintenance.
Also known as:
Panel budget lock; square key budget lock 8.5 mm; left-hand access panel lock; brass tongue panel latch; utility budget latch
Product Specifications
| L&S Part No. | 800 1057 |
|---|---|
| Unit of Sale | 1 |
