Description
Overview:

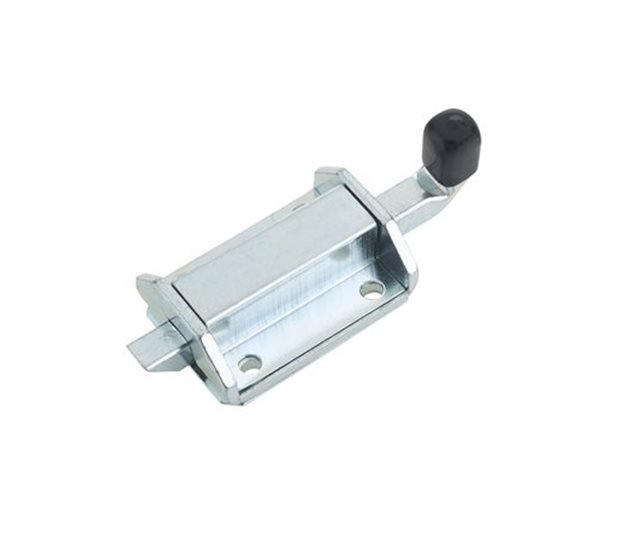

Pressed Steel End Slam Bolt (MPN 800 1077) for secure slam-closing on doors, hatches and lids across commercial vehicle and equipment builds. Manufactured from mild steel with a clear passivated zinc plated finish for corrosion protection, it features a nose-up bolt with a 16 mm (0.63 in) stroke and a 12 mm (0.47 in) square bolt section to suit common keepers and receivers. The body size is 127.5 mm (5.02 in) long by 51.5 mm (2.03 in) wide with a 39.5 mm (1.56 in) overall thickness, providing a compact latch solution for confined installations. A 15.6 mm (0.61 in) tongue and 7 mm (0.28 in) fixing holes support straightforward mounting to doors and panels. Suitable for fleet and bodywork applications on trucks, trailers, buses, gensets, horseboxes, cabs and site boxes where a robust, positive-acting end slam bolt is required.
Key Features:
- Pressed mild steel construction for durability
- Zinc plated, clear passivated finish for corrosion resistance
- Body dimensions: 127.5 mm (5.02 in) length x 51.5 mm (2.03 in) width
- Overall thickness: 39.5 mm (1.56 in)
- Nose-up bolt configuration
- Stroke: 16 mm (0.63 in) for reliable engagement
- Square bolt: 12 mm (0.47 in) section
- Tongue size: 15.6 mm (0.61 in)
- Fixing holes: 7 mm (0.28 in) diameter
- Suitable for edge-mounted end slam applications on vehicle and equipment enclosures
Typical Applications:
Used on commercial vehicle bodies and equipment where a slam-action end latch is required, including service doors and access panels on trucks, trailers and buses, enclosure doors on generator sets, partitions in horseboxes, and compartment doors on cabs, toolboxes, storage boxes and lockers.
Also known as:
End slam latch, slam bolt latch, slam catch, door slam bolt, nose-up slam bolt
Product Specifications
| L&S Part No. | 800 1077 |
|---|---|
| Unit of Sale | 1 |
