Description
Overview:

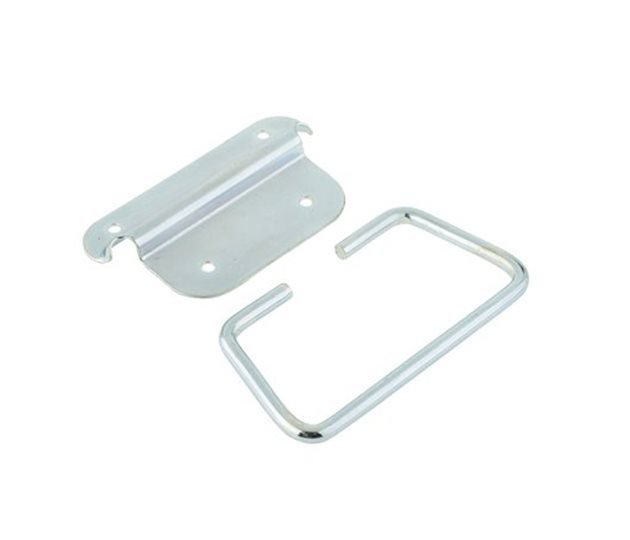

The Chest Pull Handle, Zinc Plated Mild Steel, 116 mm, 25 kg SWL (MPN 800 1036) is a pressed mild steel vehicle handle designed for general-purpose pulling and lifting points on commercial bodies and equipment. The zinc plated finish provides durable surface protection suited to fleet, workshop and site conditions. With an overall length of 116 mm (4.57 in) and a mounting width of 87 mm (3.43 in), it offers a compact, secure handhold for routine access and handling tasks. The handle bar is 6 mm (0.24 in) diameter and the fixing holes are 4 mm (0.16 in) diameter to suit common fixings. Rated to a Safe Working Load of 25 kg (55 lb), it covers light to medium duty requirements where a robust, economical pull handle is needed. Supplied under the Pinet brand.
Key Features:
- Pressed mild steel construction
- Zinc plated finish for corrosion protection
- Length: 116 mm (4.57 in)
- Width: 87 mm (3.43 in)
- Handle bar thickness: Ø6 mm (0.24 in)
- Fixing holes: Ø4 mm (0.16 in)
- Safe Working Load (SWL): 25 kg (55 lb)
- Brand: Pinet
Typical Applications:
Used across commercial vehicles and equipment including trucks, trailers, buses, generator sets, horseboxes and cabs, where a compact, durable pull handle is required.
Also known as:
Box Handle, Case Handle, Chest Lift Handle, Utility Handle
Product Specifications
| L&S Part No. | 800 1036 |
|---|---|
| Unit of Sale | 1 |
